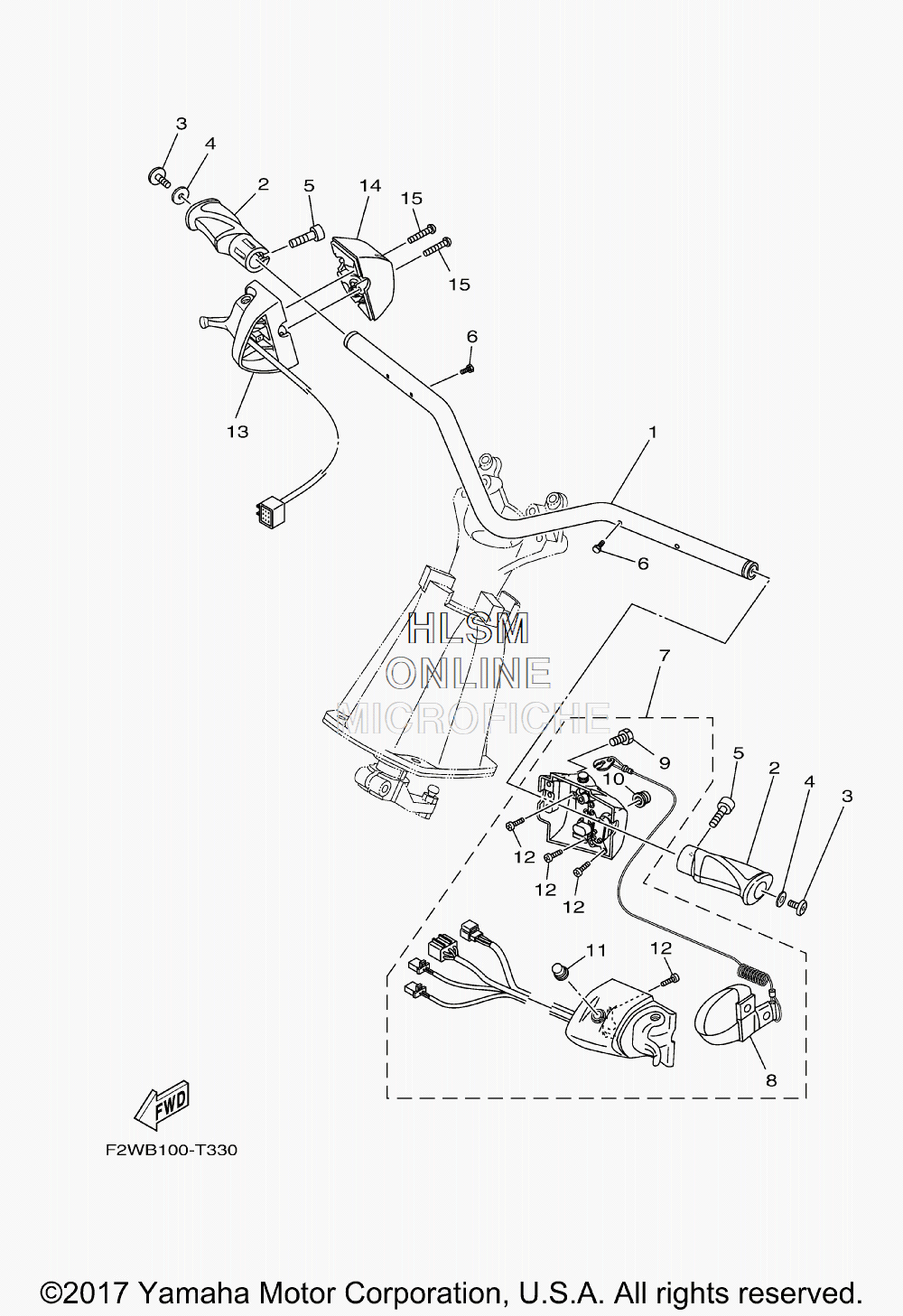

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha GP1800R - 2018 года выпуска
-
№АртикулНазвание
-
1F2X-U1552-00-00 HANDLEHANDLE
-
2F2S-U155D-02-00 GRIP, HANDLEGRIP, HANDLE
-
390110-06382-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490201-068G0-00 WASHER, PLATEWASHER, PLATE
-
5F2S-U1516-00-00 BOLTBOLT
-
691380-04030-00 BOLTBOLT
-
7F3J-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
8EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
96CS-6725F-00-00 ...BOLT, THROTTLE...BOLT, THROTTLE
-
10FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
11FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1297780-30610-00 ...SCREW, TAPPING...SCREW, TAPPING
-
136CS-14305-10-00 THROTTLE LEVER COMPTHROTTLE LEVER COMP
-
146EX-82154-00-00 CASECASE
-
156CS-6725F-00-00 BOLT, THROTTLEBOLT, THROTTLE
Все узлы модели:
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER 2
- CYLINDER HEAD COVER ASSY.
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- ENGINE MOUNTS
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- • HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL FITTINGS W/ SPONSONS
- INTAKE 3
- INTAKE AND RIDE PLATE ASSY
- MODEL INFO - MANUALS
- OIL BREATHER ASSY.
- OIL COOLER
- OIL PAN
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT W/ UNDER LOCKER
- SIDE COVERS
- STARTING MOTOR
- STEERING - PADDING
- SUPER CHARGER ASSY
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
