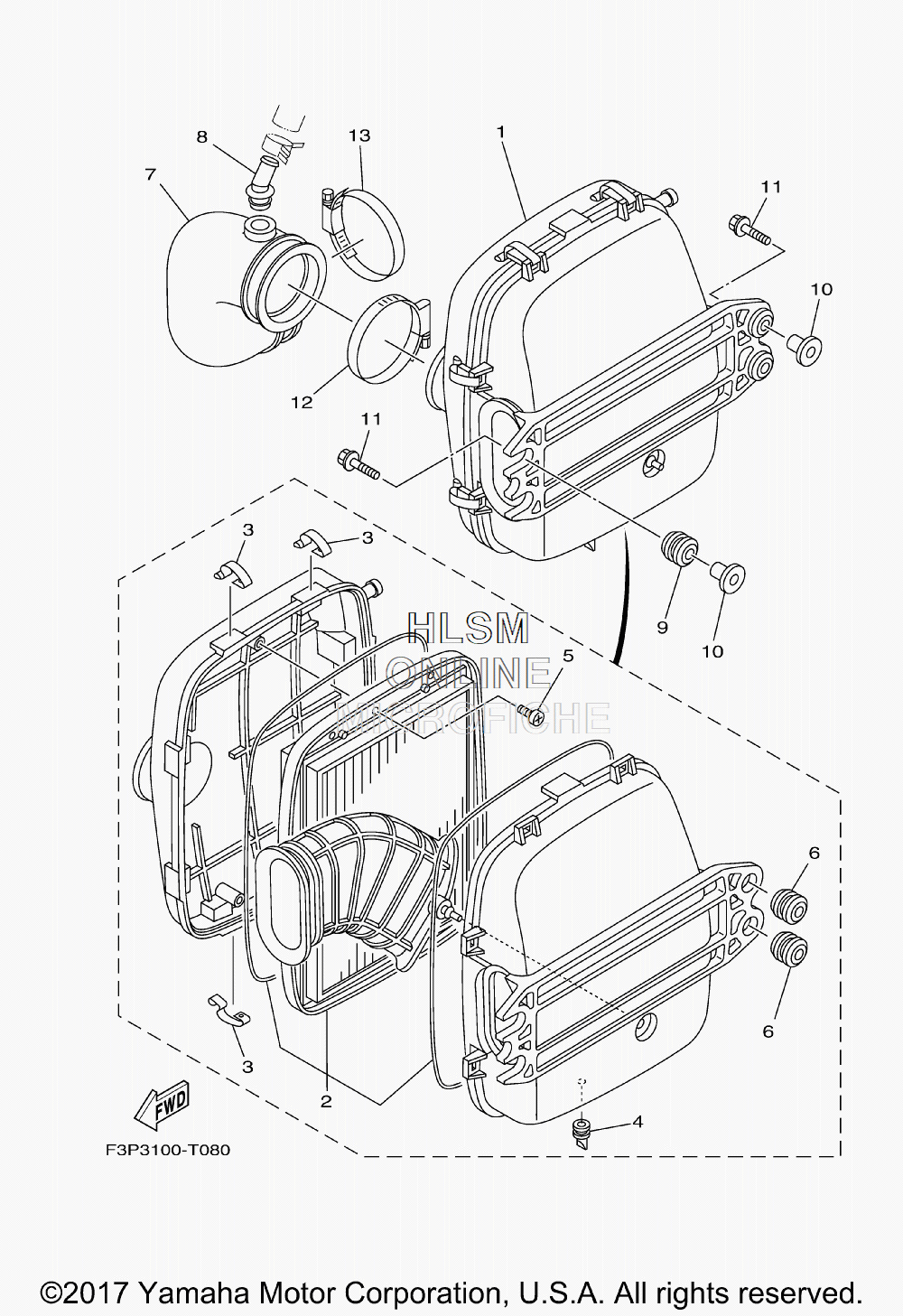

INTAKE 3 для Yamaha GP1800R - 2018 года выпуска
-
№АртикулНазвание
-
16S5-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
26S5-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
36S5-E4436-00-00 ...HOOK...HOOK
-
46S5-G2717-00-00 ...RUBBER, SEAL 2...RUBBER, SEAL 2
-
597780-60516-00 ...SCREW, TAPPING...SCREW, TAPPING
-
690480-22801-00 ...GROMMET...GROMMET
-
76S5-E4419-00-00 PIPEPIPE
-
86S5-R1142-10-00 CONNECTIONCONNECTION
-
990480-22M15-00 GROMMETGROMMET
-
1090387-08M37-00 COLLARCOLLAR
-
1190119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390450-90002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
