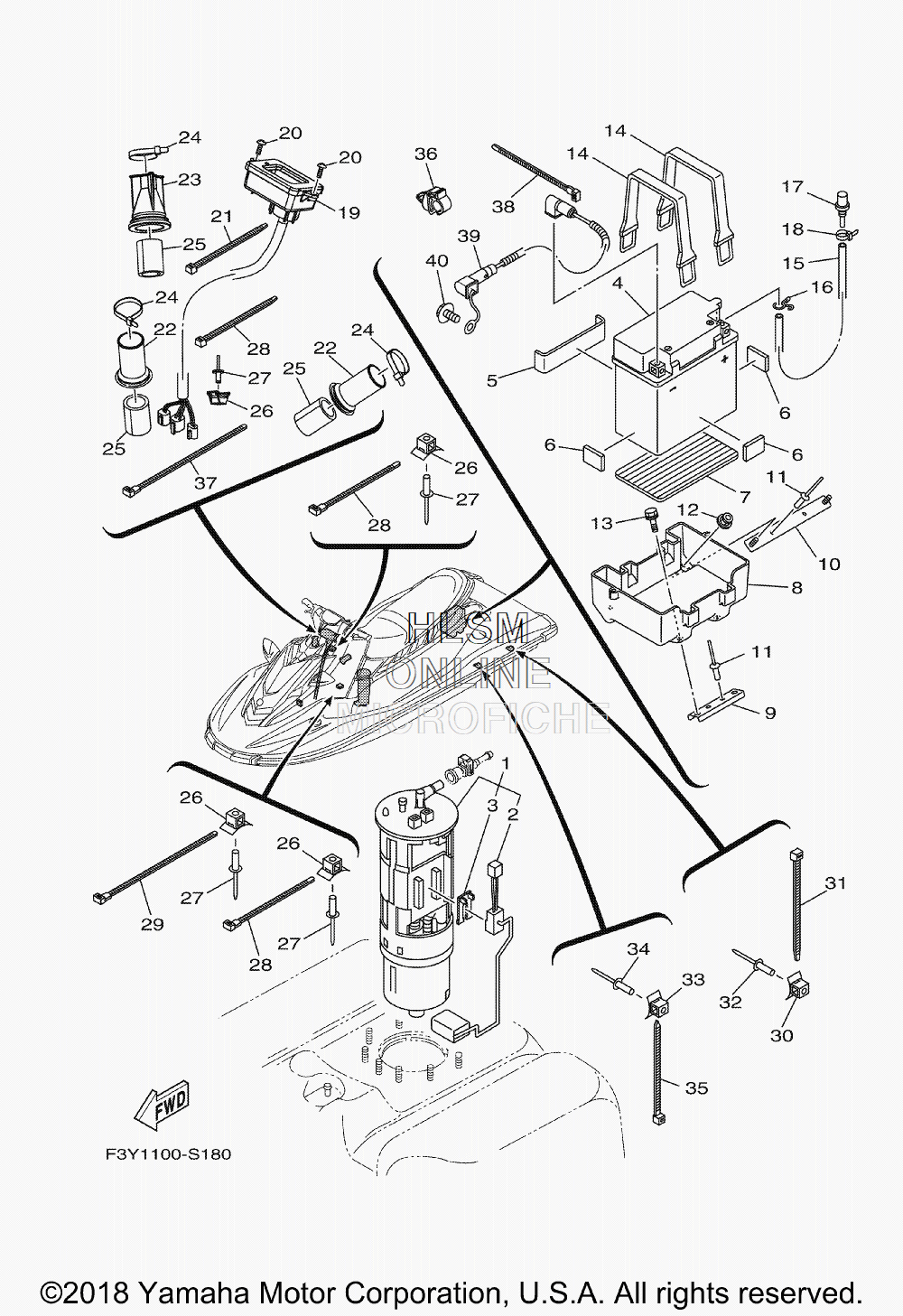

ELECTRICAL - BATTERY для Yamaha EXR - 2019 года выпуска
-
№АртикулНазвание
-
16S5-13907-02-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
26S5-682E0-00-00 ...FUEL SENDER ASSY...FUEL SENDER ASSY
-
360E-82556-00-00 ...DAMPER, STOPPER...DAMPER, STOPPER
-
4EU0-U8217-H2-00 BATTERY (YB16CL-B)BATTERY (YB16CL-B)
-
5F1K-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
6EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
7F1S-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
8F2S-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
9F2S-U8592-00-00 PLATE, BASE 2PLATE, BASE 2
-
10F2S-U8593-00-00 PLATE, BASE 3PLATE, BASE 3
-
1190267-489U1-00 RIVET,BLINDRIVET,BLIND
-
12F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
12F2N-U142L-00-00 NUT, LOCKNUT, LOCK
-
1390119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
14EU0-U821D-00-00 BAND,BATTERY 1BAND,BATTERY 1
-
15F0D-U785G-10-00 HOSE, AIR VENTHOSE, AIR VENT
-
1690467-089U1-00 CLIPCLIP
-
17GJ3-6215F-00-00 NIPPLENIPPLE
-
1890465-11829-00 CLAMPCLAMP
-
19F4L-U820A-00-00 METER ASSYMETER ASSY
-
20F2S-U7823-01-00 SCREWSCREW
-
2190464-32801-00 CLAMPCLAMP
-
22GU2-6822E-01-00 GROMMETGROMMET
-
23F3J-U822E-00-00 GROMMETGROMMET
-
2490464-32801-00 CLAMPCLAMP
-
25GJ1-U7578-21-00 PACKING, HOSE 2PACKING, HOSE 2
-
26F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
2790267-489U6-00 RIVET, BLINDRIVET, BLIND
-
2890464-32801-00 CLAMPCLAMP
-
2990601-200U2-00 BANDBAND
-
30F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3190464-32801-00 CLAMPCLAMP
-
3290267-489U6-00 RIVET, BLINDRIVET, BLIND
-
33F1W-U828M-00-00 BASE, CLAMPBASE, CLAMP
-
3490267-489U6-00 RIVET, BLINDRIVET, BLIND
-
3590464-32801-00 CLAMPCLAMP
-
3690464-10008-00 CLAMPCLAMP
-
3790601-200U2-00 BANDBAND
-
3890464-32801-00 CLAMPCLAMP
-
396GA-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
4097513-08514-00 BOLT, WITH WASHERBOLT, WITH WASHER
