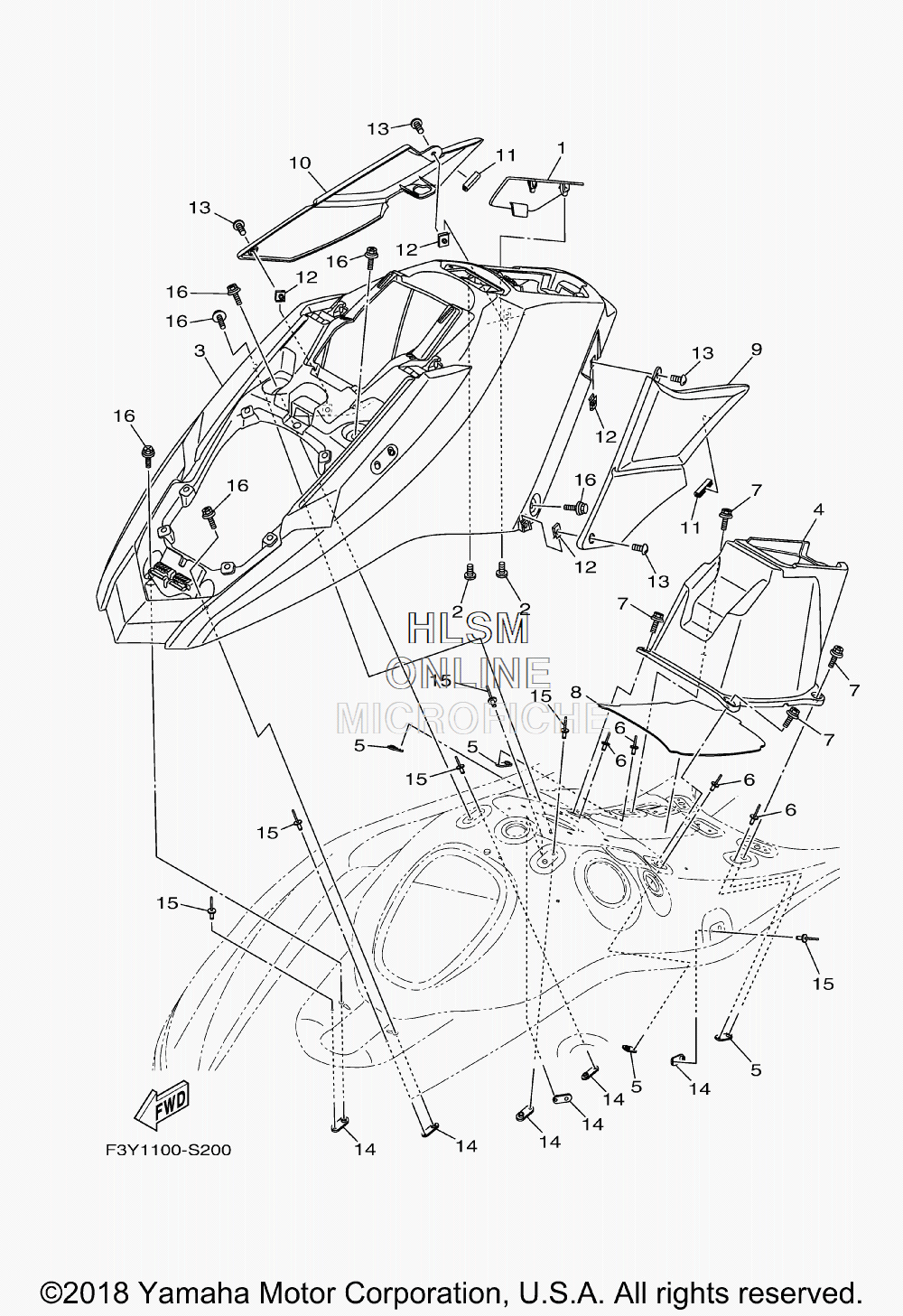

SIDE COVERS для Yamaha EXR - 2019 года выпуска
-
№АртикулНазвание
-
1F3Y-U2723-00-00 SEALSEAL
-
2F2S-U13C1-00-00 SCREWSCREW
-
3F3Y-U516N-00-00 COVER, ENGINE HATCHCOVER, ENGINE HATCH
-
4F3Y-U516P-00-00 BOX GLOVEBOX GLOVE
-
5F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
690267-489U1-00 RIVET,BLINDRIVET,BLIND
-
790119-06882-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
8F3Y-U759B-00-00 MAT 1MAT 1
-
9F3Y-U353B-60-00 PAD, KNEEPAD, KNEE
-
10F3Y-U353B-70-00 PAD, KNEEPAD, KNEE
-
11F3Y-U828H-00-00 TRIM, 1TRIM, 1
-
1290183-06902-00 NUT, SPRINGNUT, SPRING
-
13F4G-U7823-00-00 SCREWSCREW
-
14F2X-U5175-00-00 PLATE, FIXPLATE, FIX
-
1590267-489U1-00 RIVET, BLINDRIVET, BLIND
-
1690119-06832-00 BOLT, WITH WASHERBOLT, WITH WASHER
