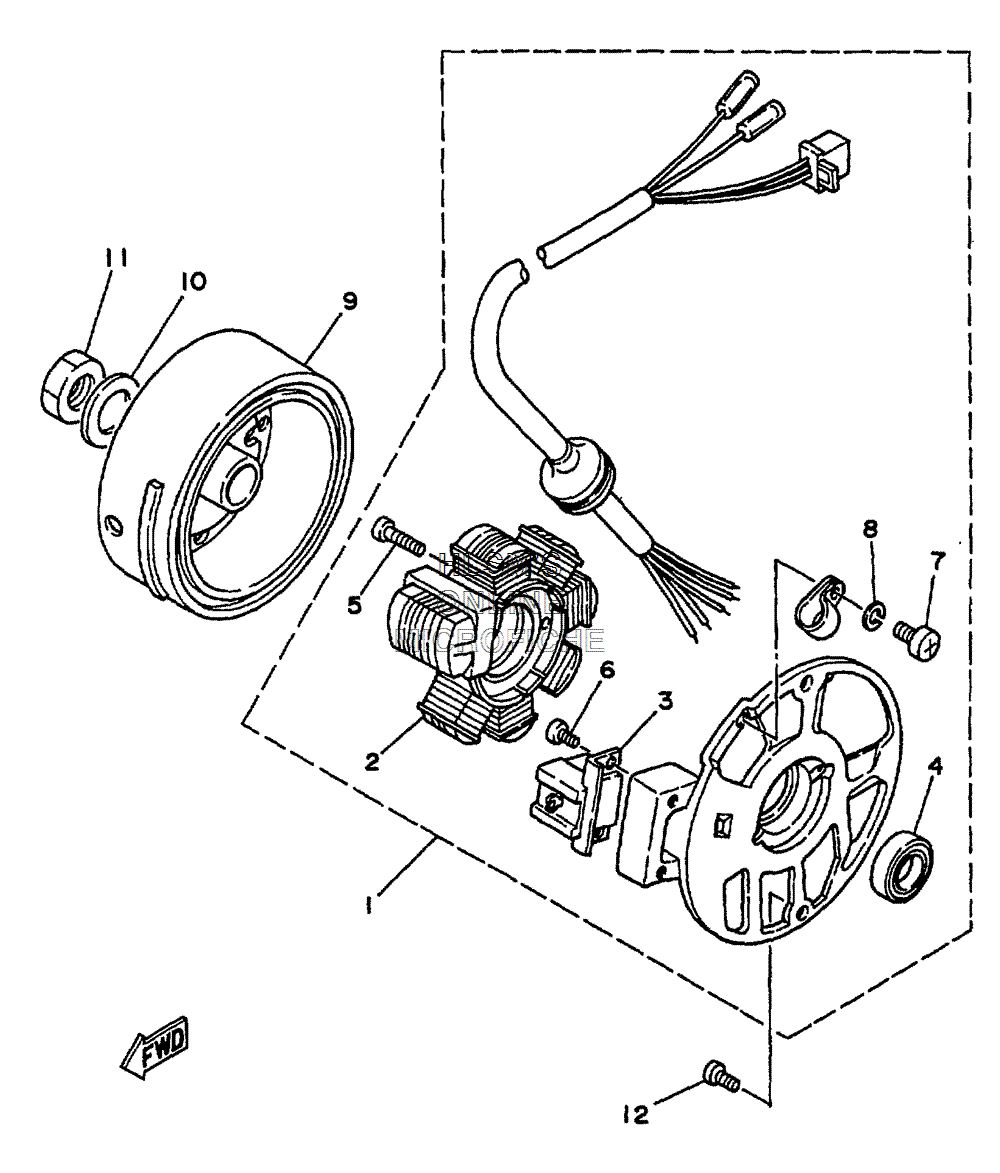

GENERATOR ASSY. для Yamaha JOG - 2000 года выпуска
-
№АртикулНазвание
-
13KJ-85560-00-00 BASE ASSYBASE ASSY
-
22JA-81403-M0-00 ...STATOR COMP....STATOR COMP.
-
32JA-85580-M0-00 ...COIL, PULSER...COIL, PULSER
-
493104-19097-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
598511-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
698507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798507-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892990-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
92JA-85550-00-00 ROTOR ASSYROTOR ASSY
-
1092907-10600-00 WASHER, PLATEWASHER, PLATE
-
1190170-10219-00 NUTNUT
-
1298507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
