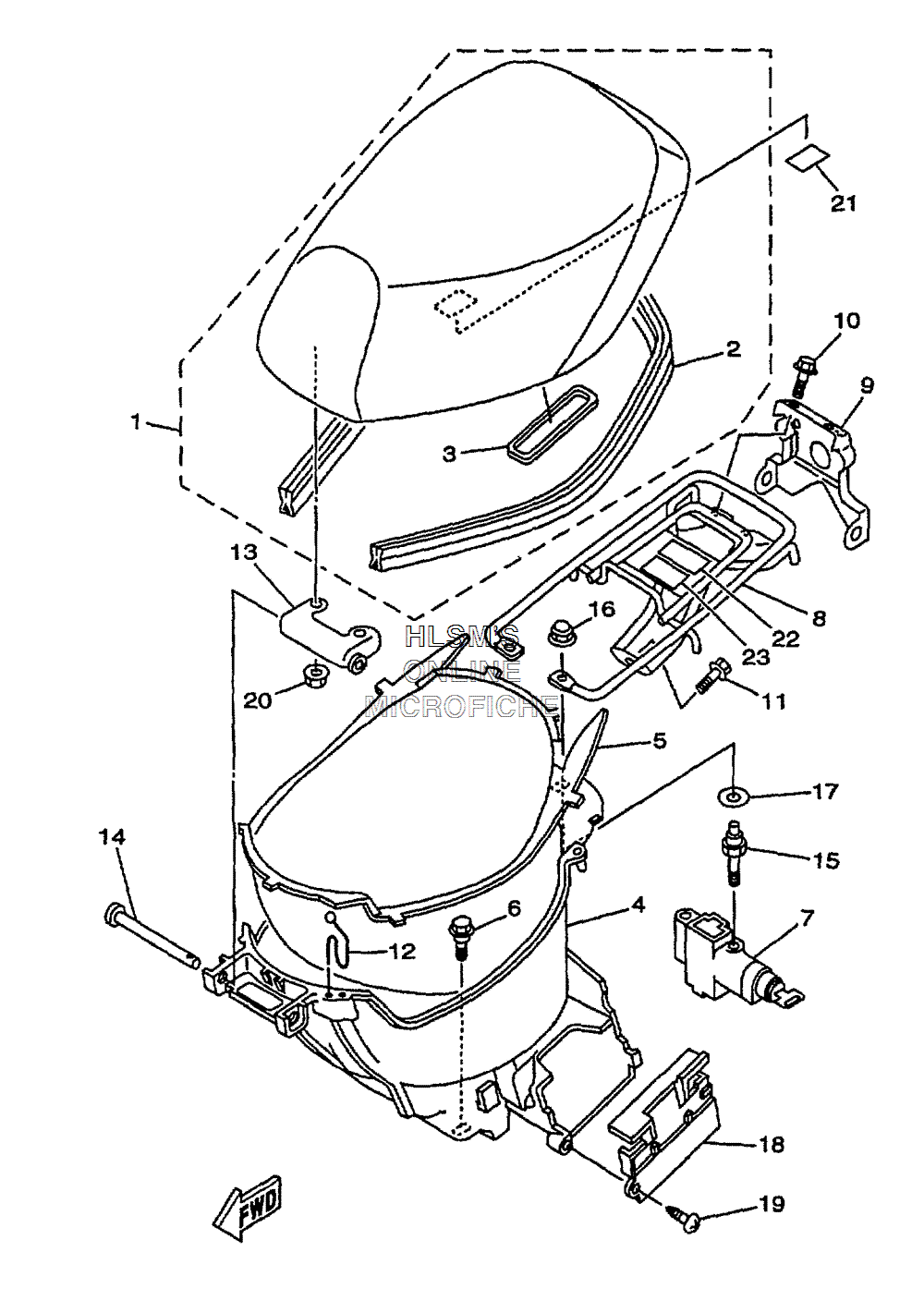

SEAT ASSY. для Yamaha JOG - 2000 года выпуска
-
№АртикулНазвание
-
13KJ-24710-23-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
23KJ-2475M-00-00 ...SEAL...SEAL
-
33FC-2483H-00-00 ...BAND...BAND
-
43KJ-2473R-00-00 BOX 1BOX 1
-
53KJ-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
690109-063F1-00 BOLTBOLT
-
73FC-24705-03-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
83SA-24842-00-00 CARRIER, REARCARRIER, REAR
-
93SA-24718-00-00 BRACKET, SEATBRACKET, SEAT
-
1090119-06926-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1195817-08012-00 BOLT, FLANGEBOLT, FLANGE
-
123KJ-21398-00-00 HANGER, HELMETHANGER, HELMET
-
133KJ-24726-00-00 HINGE, SEATHINGE, SEAT
-
1490241-10015-00 PINPIN
-
153KJ-24717-00-00 BOLT, SEAT FITTINGBOLT, SEAT FITTING
-
1690176-06065-00 NUT, CROWNNUT, CROWN
-
1790201-12175-00 WASHER, PLATEWASHER, PLATE
-
183KJ-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
193KJ-24453-00-00 SCREWSCREW
-
2095707-06500-00 NUT, FLANGENUT, FLANGE
-
213LD-24877-10-00 LABEL, CAUTIONLABEL, CAUTION
-
223MX-24875-00-00 LABEL 1LABEL 1
-
233TB-24877-00-00 LABEL, CAUTIONLABEL, CAUTION
