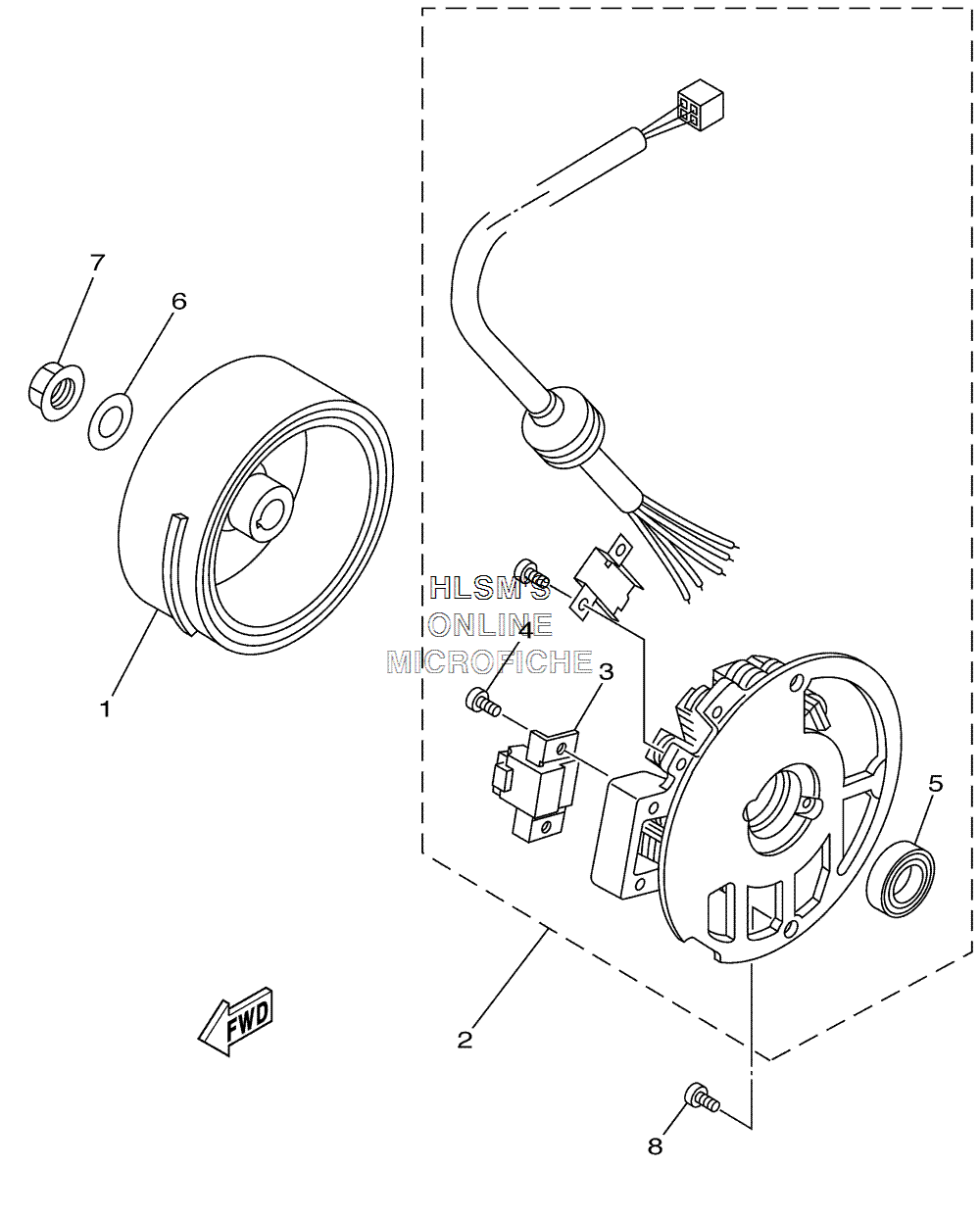

GENERATOR ASSY. для Yamaha VINO - 2001 года выпуска
-
№АртикулНазвание
-
15BM-81450-01-00 ROTOR ASSYROTOR ASSY
-
25BM-81410-01-00 STATOR ASSYSTATOR ASSY
-
34JP-85595-00-00 ...COIL, PULSER...COIL, PULSER
-
498507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
593104-19097-00 ...SEAL, OIL...SEAL, OIL
-
692907-10600-00 WASHER, PLATEWASHER, PLATE
-
790170-10219-00 NUTNUT
-
898507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
