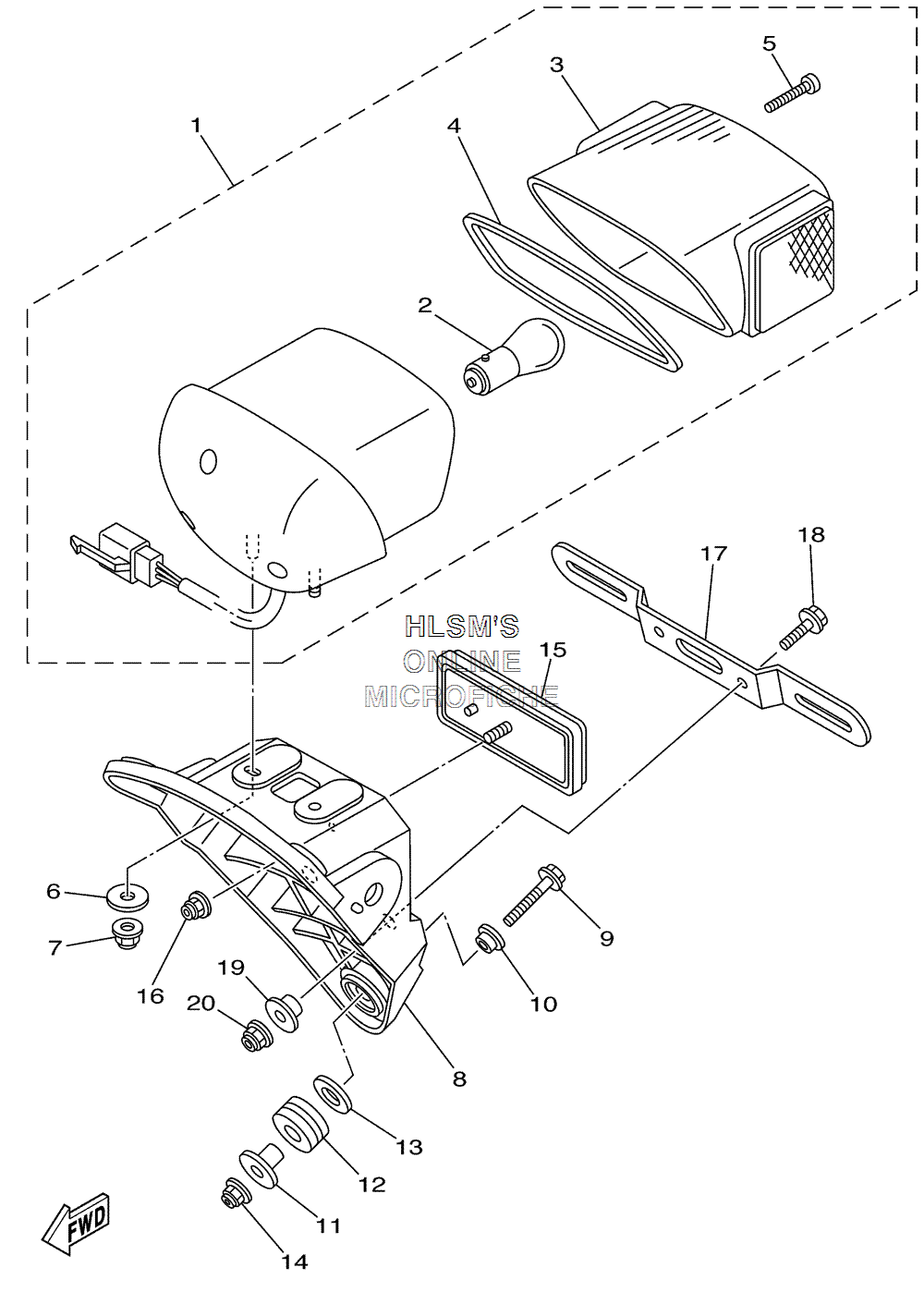

TAILLIGHT ASSY. для Yamaha VINO - 2001 года выпуска
-
№АртикулНазвание
-
15LY-84700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
2256-84714-61-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
32UJ-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
42UJ-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
53Y1-84524-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
690201-06063-00 WASHER, PLATEWASHER, PLATE
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
85LY-84511-00-00 BASE, TAILLIGHTBASE, TAILLIGHT
-
995024-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1090387-06040-00 COLLARCOLLAR
-
1190387-06042-00 COLLARCOLLAR
-
1290480-15363-00 GROMMETGROMMET
-
1390201-06071-00 WASHER, PLATEWASHER, PLATE
-
1495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
153Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1695707-05500-00 NUT, FLANGENUT, FLANGE
-
173YF-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
1895027-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1990387-06041-00 COLLARCOLLAR
-
2095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
