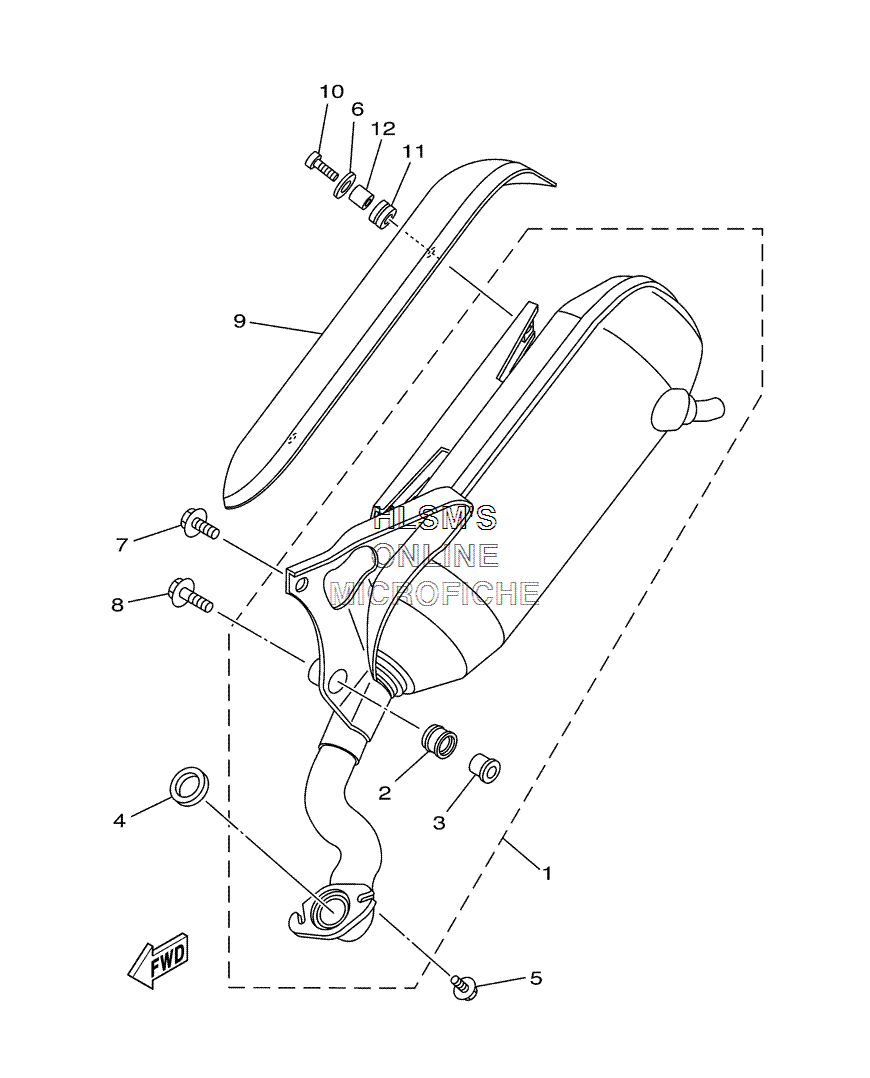

EXHAUST ASSY. для Yamaha VINO CLASSIC - 2003 года выпуска
-
№АртикулНазвание
-
15LY-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
23YK-14445-00-00 ...GROMMET...GROMMET
-
33YK-14779-00-00 ...COLLAR...COLLAR
-
44KN-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
590153-06061-00 SCREW, HEXAGONSCREW, HEXAGON
-
690201-06049-00 WASHER, PLATEWASHER, PLATE
-
795817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
895817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
95GD-14708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
1098907-06016-00 SCREW, BINDSCREW, BIND
-
1190480-12581-00 GROMMETGROMMET
-
1290387-06023-00 COLLARCOLLAR
