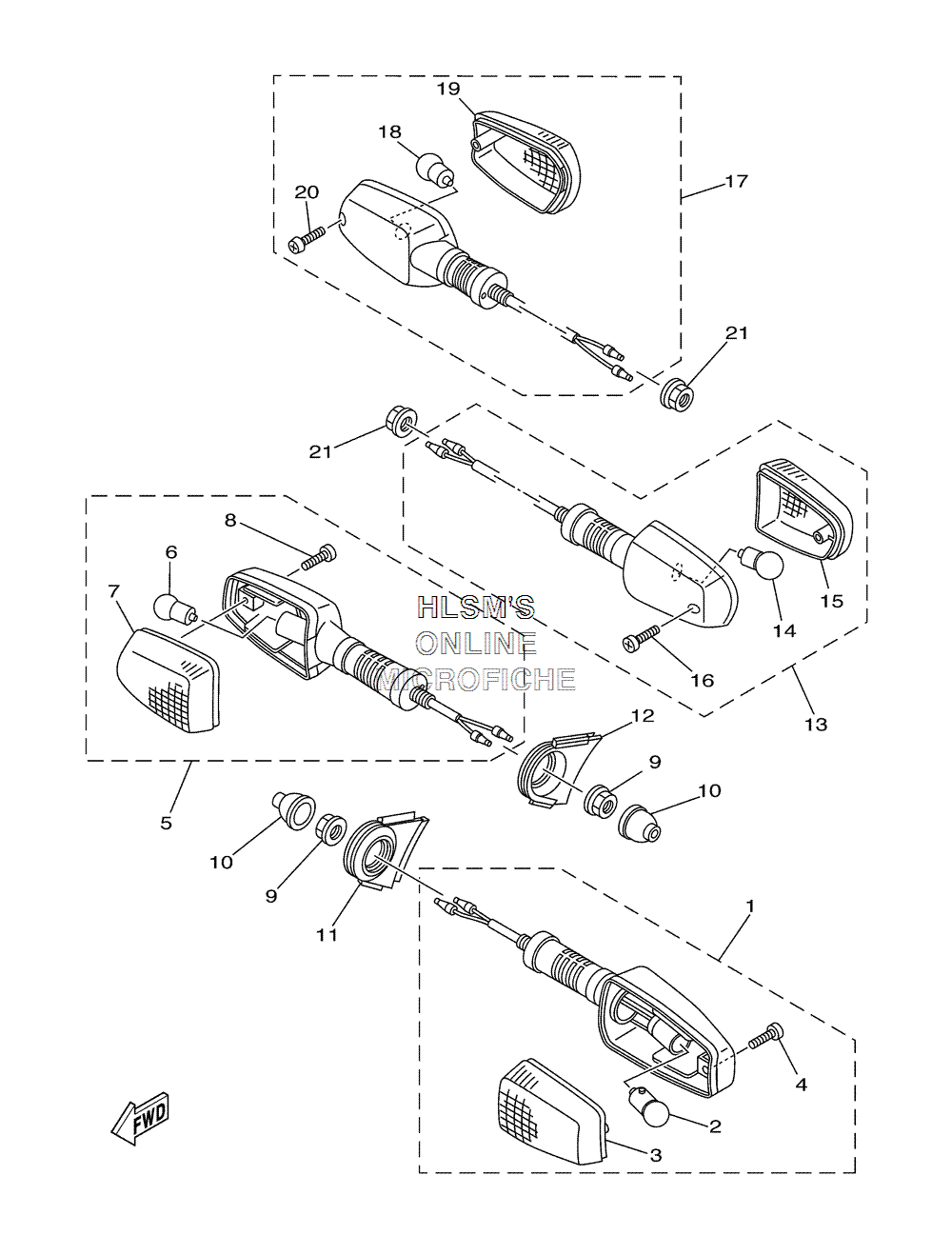

FLASHER LIGHT для Yamaha VINO CLASSIC - 2003 года выпуска
-
№АртикулНазвание
-
15LY-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
23TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
32EK-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
497707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
55LY-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
63TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
72EK-83332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
897707-40520-00 ...SCREW, TAPPING...SCREW, TAPPING
-
995707-12500-00 NUT, FLANGENUT, FLANGE
-
1010V-83365-00-00 CAPCAP
-
115LY-84196-00-00 COVER, SOCKETCOVER, SOCKET
-
125LY-84396-00-00 COVERCOVER
-
135LY-83330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
143TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
152EK-83332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1697706-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
175LY-83340-10-00 FLASHER LIGHT ASSY 2FLASHER LIGHT ASSY 2
-
183TX-83311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
192EK-83342-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
2097706-40620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2195707-12500-00 NUT, FLANGENUT, FLANGE
