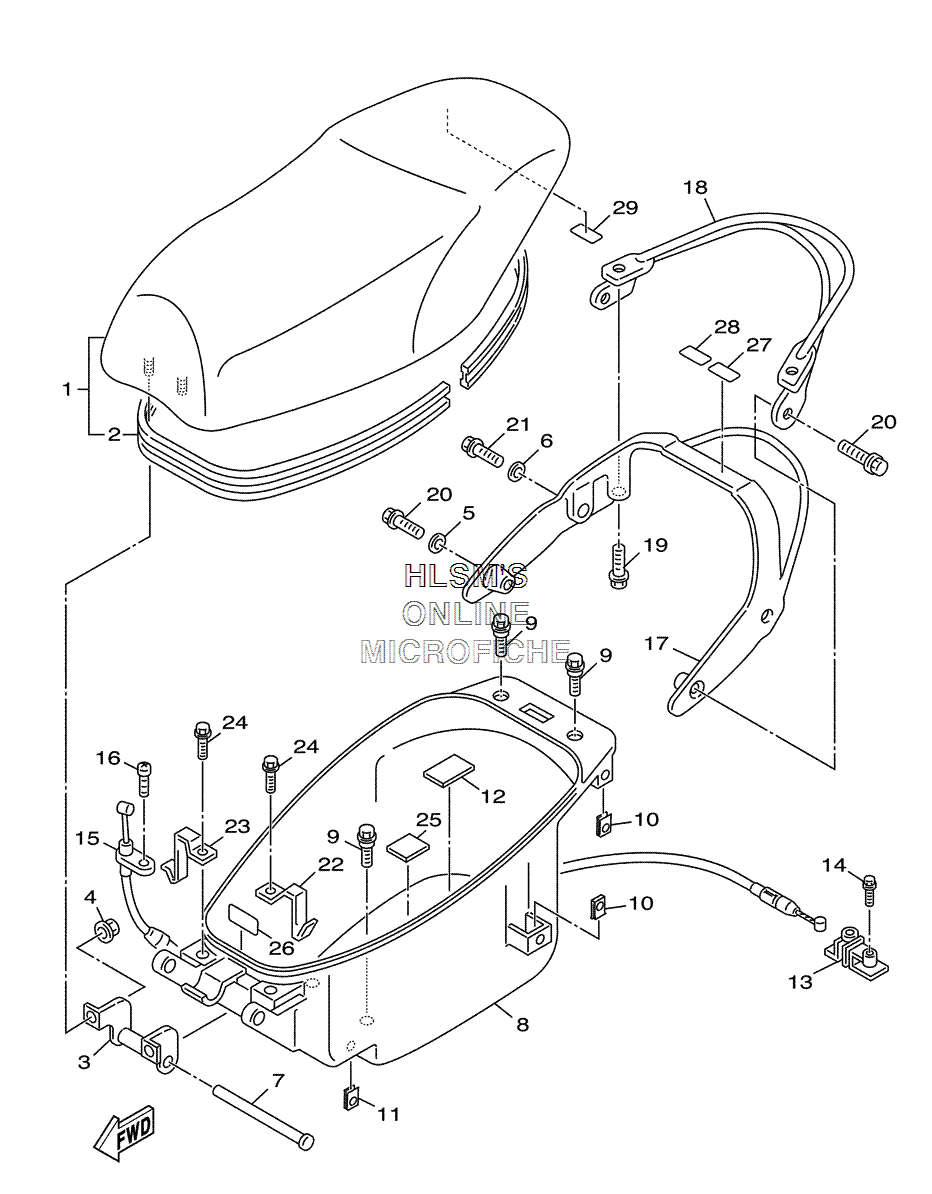

SEAT ASSY. для Yamaha VINO 125 - 2004 года выпуска
-
№АртикулНазвание
-
15YR-F4730-00-00 DOUBLE SEAT ASSY.DOUBLE SEAT ASSY.
-
25YR-F475M-00-00 ...SEAL...SEAL
-
35JS-F4726-00-00 HINGE, SEATHINGE, SEAT
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
592903-08600-00 WASHER, PLATEWASHER, PLATE
-
692903-08600-00 WASHER, PLATEWASHER, PLATE
-
75JS-F4727-00-00 PIN, SEAT FITTINGPIN, SEAT FITTING
-
85JS-F473R-10-00 BOX 1BOX 1
-
990109-063F1-00 BOLTBOLT
-
1090183-05807-00 NUT, SPRINGNUT, SPRING
-
112GF-F1535-00-00 NUT 1NUT 1
-
123KW-F139X-00-00 DAMPERDAMPER
-
134UE-F4780-02-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1495807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
155YR-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1698507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
175JS-F4812-00-1V HANDLE (FS)HANDLE (FS)
-
185JS-F4842-00-1V CARRIER, REAR (FS)CARRIER, REAR (FS)
-
1990119-06857-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090105-08854-00 BOLT, FLANGEBOLT, FLANGE
-
2190105-08855-00 BOLT, FLANGEBOLT, FLANGE
-
225YR-F4754-00-00 HOOK, SEATHOOK, SEAT
-
235YR-F4755-00-00 HOOK, SEATHOOK, SEAT
-
2497527-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
255NN-F4737-00-00 DAMPER, SEATDAMPER, SEAT
-
265PJ-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
275PJ-F4877-10-00 LABEL, CAUTIONLABEL, CAUTION
-
285PJ-F4875-00-00 LABEL 1LABEL 1
-
295YR-F818L-00-00 LABEL (FS)LABEL (FS)
-
295YR-F818L-10-00 LABEL (DRC4)LABEL (DRC4)
-
295YR-F818L-20-00 LABEL (RW)LABEL (RW)
