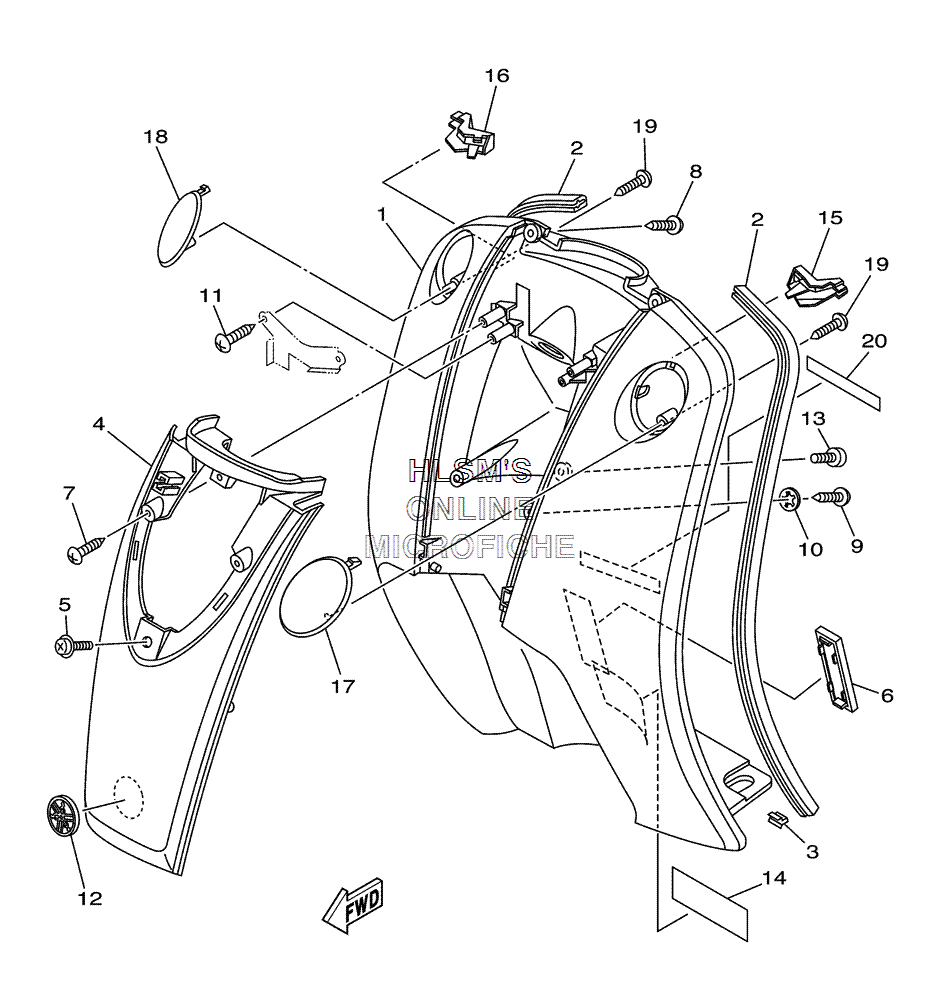

COWLING W/ LEG SHIELD для Yamaha VINO - 2004 года выпуска
-
№АртикулНазвание
-
15AU-28311-01-P5 LEG SHIELD 1 (PPBM3)LEG SHIELD 1 (PPBM3)
-
15AU-28311-01-P6 LEG SHIELD 1 (SMX)LEG SHIELD 1 (SMX)
-
25AU-28345-01-00 MOLE 1MOLE 1
-
35AU-28457-00-00 CLIPCLIP
-
45LY-23391-00-P4 PANEL, FRONT (PPBM3)PANEL, FRONT (PPBM3)
-
45LY-23391-00-P5 PANEL, FRONT (SMX)PANEL, FRONT (SMX)
-
590159-06178-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
614T-28349-40-00 CAP (YB FOR SMX)CAP (YB FOR SMX)
-
620H-28349-01-00 CAP (SFS FOR PPBM3)CAP (SFS FOR PPBM3)
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
897707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
1090209-05347-00 WASHERWASHER
-
1197707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
125AU-2157B-00-00 EMBLEM (TUNING FORK MARK)EMBLEM (TUNING FORK MARK)
-
1398904-06012-00 SCREW, BINDSCREW, BIND
-
143SL-2118K-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
155AU-2842M-00-00 COVER 1COVER 1
-
165AU-2842N-00-00 COVER 2COVER 2
-
175LY-2842M-00-P5 COVER 1 (PPBM3)COVER 1 (PPBM3)
-
175LY-2842M-00-P6 COVER 1 (SMX)COVER 1 (SMX)
-
185LY-2842N-00-P5 COVER 2 (PPBM3)COVER 2 (PPBM3)
-
185LY-2842N-00-P6 COVER 2 (SMX)COVER 2 (SMX)
-
1997707-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
205LY-2179X-10-00 PLATE, EPAPLATE, EPA
