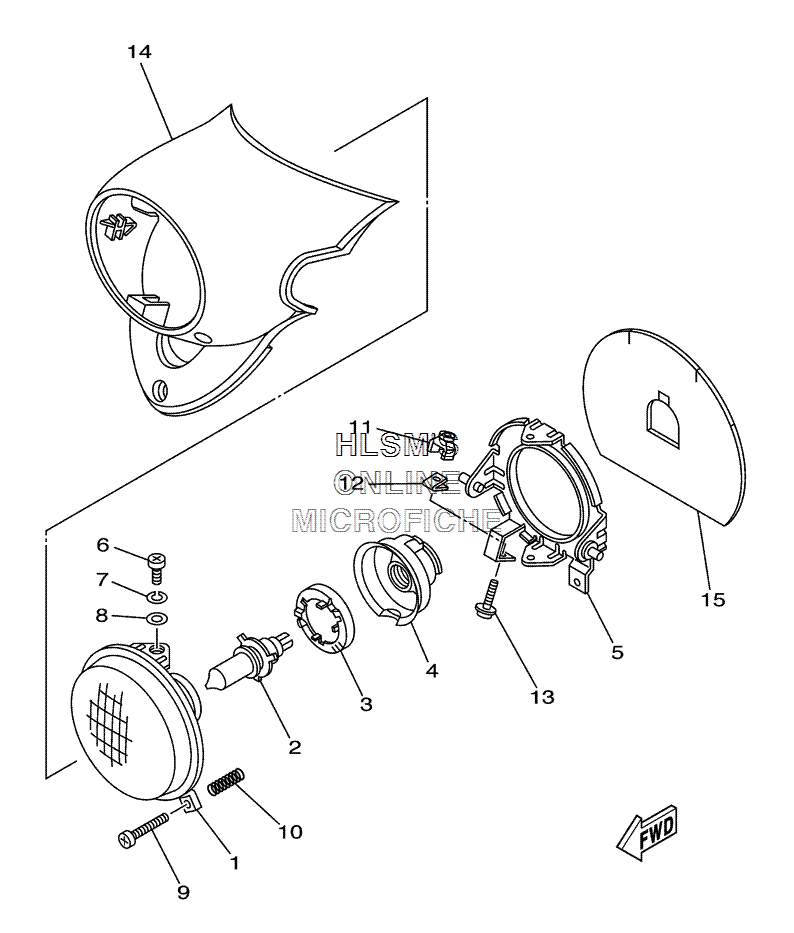

HEADLIGHT ASSY. для Yamaha VINO - 2004 года выпуска
-
№АртикулНазвание
-
15LY-8430A-00-00 HEADLIGHT UNIT ASSY.HEADLIGHT UNIT ASSY.
-
21FM-84314-H0-00 BULB (12V-35/35W) HALOGENBULB (12V-35/35W) HALOGEN
-
32F9-84375-00-00 SETTING PLATE, BULBSETTING PLATE, BULB
-
42F9-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
55LY-84315-00-00 BRACKETBRACKET
-
650W-84333-00-00 SCREWSCREW
-
792902-05100-00 WASHER, SPRINGWASHER, SPRING
-
892902-56000-00 WASHER, WAVEWASHER, WAVE
-
95LY-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
105LY-84135-00-00 SPRINGSPRING
-
115LY-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
125LY-84335-00-00 SPRINGSPRING
-
1390159-06110-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
145LY-84144-00-P4 COVER, HEADLIGHT (PPBM3)COVER, HEADLIGHT (PPBM3)
-
145LY-84144-00-P5 COVER, HEADLIGHT (SMX)COVER, HEADLIGHT (SMX)
-
155LY-84163-00-00 DAMPERDAMPER
