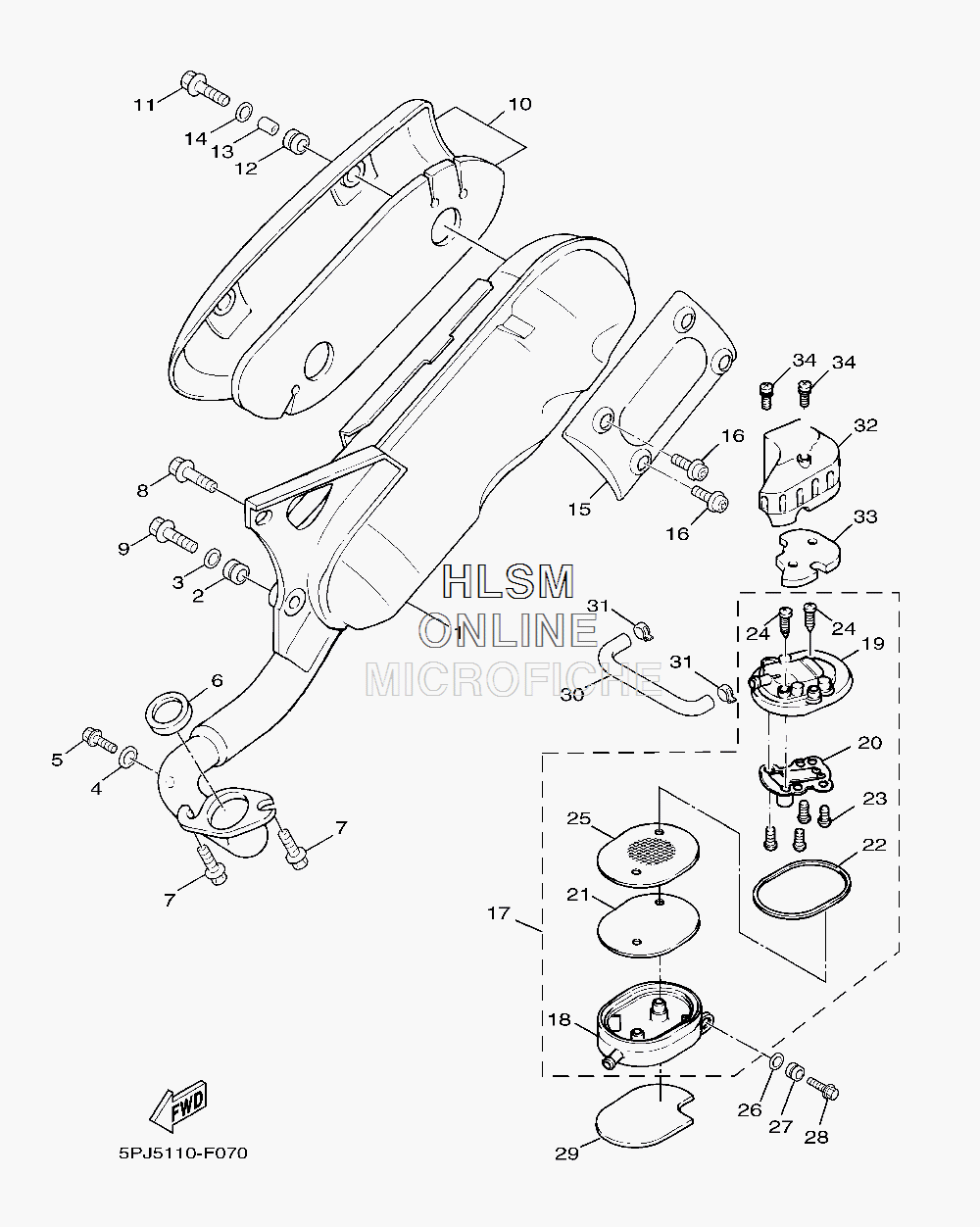

EXHAUST ASSY. для Yamaha ZUMA - 2011 года выпуска
-
№АртикулНазвание
-
15PJ-E4610-10-98 EXHAUST PIPE ASSY 1 (LGB)EXHAUST PIPE ASSY 1 (LGB)
-
24VP-E4445-00-00 ...GROMMET...GROMMET
-
34VP-E4779-00-00 ...COLLAR...COLLAR
-
492990-06600-00 WASHER, PLATEWASHER, PLATE
-
597080-06008-00 BOLT, HEX.BOLT, HEX.
-
63NT-E4613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
790153-06800-00 SCREW, HEXAGONSCREW, HEXAGON
-
895817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
995817-08030-00 BOLT, FLANGEBOLT, FLANGE
-
105FA-E4708-10-00 PROTECTOR ASSYPROTECTOR ASSY
-
1198907-06014-00 SCREW, BINDSCREW, BIND
-
1290480-12843-00 GROMMETGROMMET
-
1390387-06817-00 COLLARCOLLAR
-
1490201-06055-00 WASHER, PLATEWASHER, PLATE
-
155CP-E465R-00-00 PLATE, PROTECTORPLATE, PROTECTOR
-
1698907-06008-00 SCREW, BINDSCREW, BIND
-
175CR-E4806-00-00 AIR FILTERAIR FILTER
-
184VP-E4857-00-00 ...CASE, AIR CLEANER...CASE, AIR CLEANER
-
194VP-E4858-00-00 ...CAP, CASE...CAP, CASE
-
204UE-E4890-00-00 ...REED VALVE ASSY...REED VALVE ASSY
-
214VP-E4827-00-00 ...FILTER...FILTER
-
224VP-E4859-00-00 ...SEAL, CAP...SEAL, CAP
-
2397707-50614-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2497707-50125-00 ...SCREW, TAPPING...SCREW, TAPPING
-
254VP-E482K-00-00 ...PLATE...PLATE
-
2690480-12497-00 GROMMETGROMMET
-
2790387-068J5-00 COLLARCOLLAR
-
2897607-06220-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
294VP-E4844-00-00 DAMPERDAMPER
-
304VP-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
-
3190468-08812-00 CLIPCLIP
-
324VP-E4889-00-00 CAP, CASECAP, CASE
-
334VP-E4425-00-00 DAMPER 1DAMPER 1
-
3497707-50514-00 SCREW, TAPPINGSCREW, TAPPING
