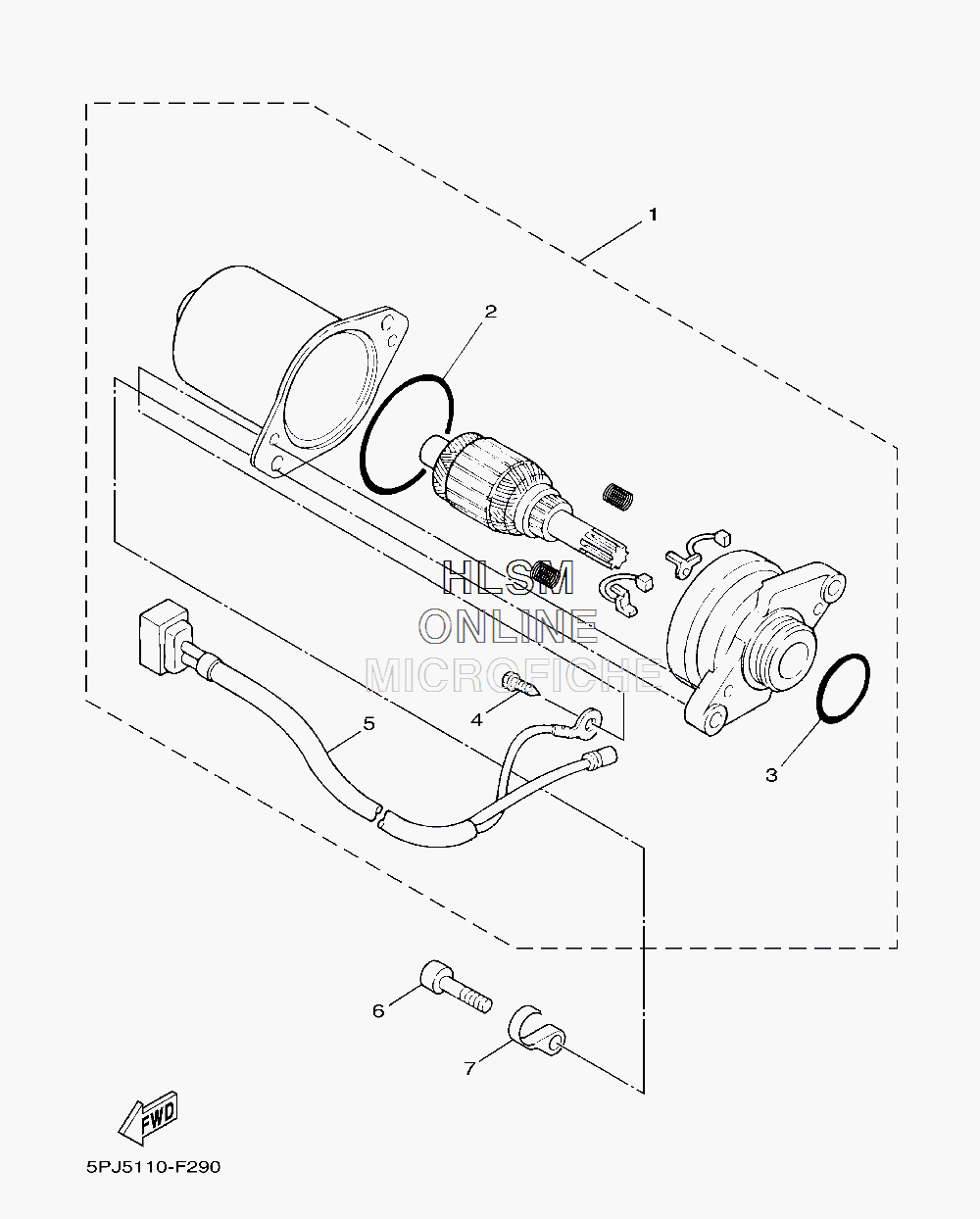

STARTING MOTOR ASSY. для Yamaha ZUMA - 2011 года выпуска
-
№АртикулНазвание
-
14WX-H1800-01-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
23GF-H181Y-V0-00 ...GASKET, YOKE...GASKET, YOKE
-
393210-23614-00 ...O-RING...O-RING
-
498512-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
54WX-H183G-V0-00 ...CORD COMP....CORD COMP.
-
691318-06020-00 BOLTBOLT
-
74UE-H1128-00-00 CLAMPCLAMP
