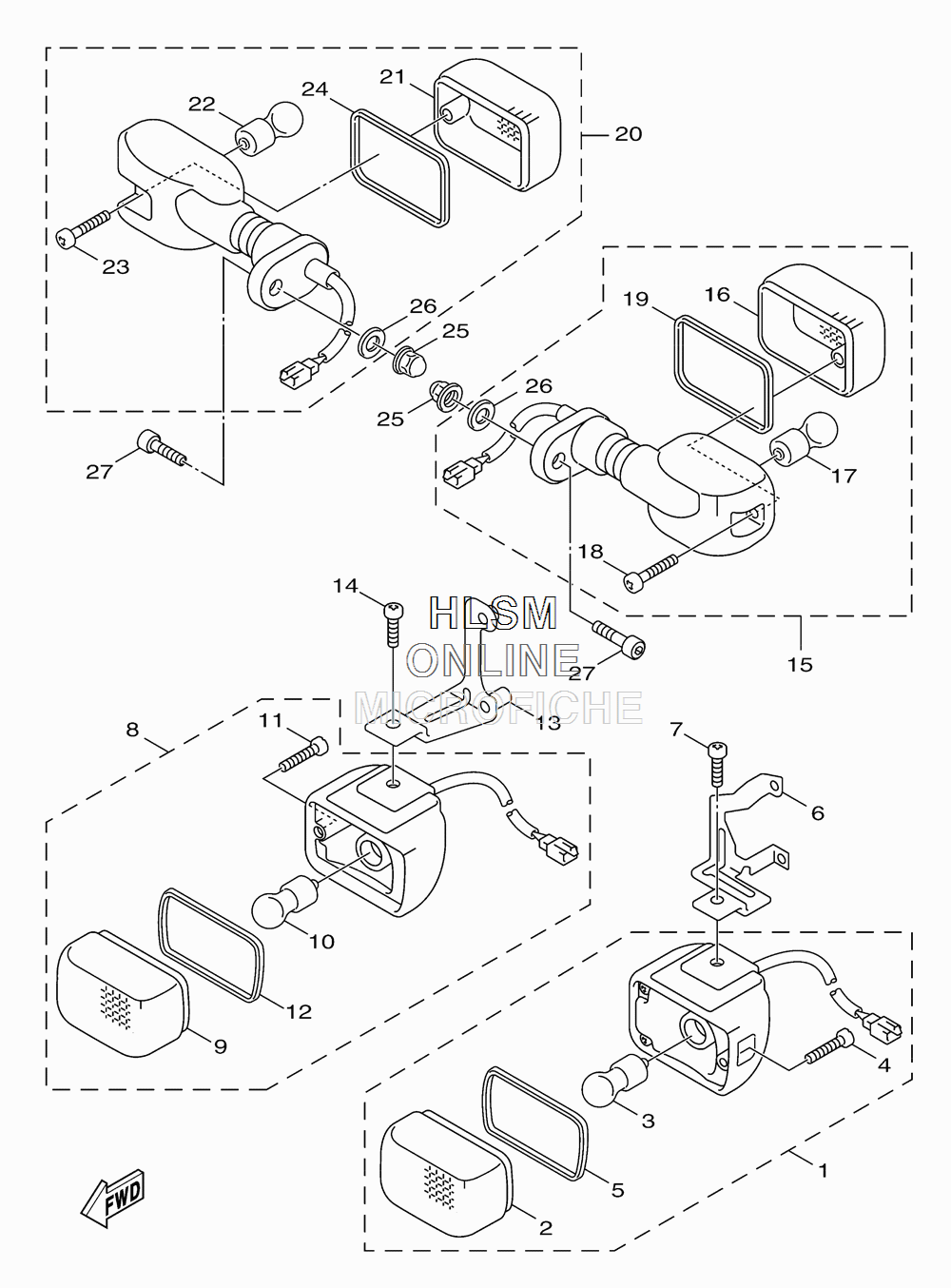

FLASHER LIGHT для Yamaha ZUMA 50 - 2012 года выпуска
-
№АртикулНазвание
-
11CD-H3310-00-00 FRONT FLASHER LIGHT ASSY 1 (LEFT)FRONT FLASHER LIGHT ASSY 1 (LEFT)
-
25S9-H3312-20-00 ..LENS, FLASHER..LENS, FLASHER
-
35SK-H3311-00-00 ..BULB, FLASHER (12V-10W)..BULB, FLASHER (12V-10W)
-
45S9-H3333-10-00 ..SCREW, LENS FITTING..SCREW, LENS FITTING
-
55S9-H3313-00-00 ..GASKET, FLASHER LENS..GASKET, FLASHER LENS
-
61CD-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
792012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
81CD-H3320-00-00 FRONT FLASHER LIGHT ASSY 2 (RIGHT)FRONT FLASHER LIGHT ASSY 2 (RIGHT)
-
95S9-H3312-20-00 ..LENS, FLASHER..LENS, FLASHER
-
105SK-H3311-00-00 ..BULB, FLASHER (12V-10W)..BULB, FLASHER (12V-10W)
-
115S9-H3333-10-00 ..SCREW, LENS FITTING..SCREW, LENS FITTING
-
125S9-H3313-00-00 ..GASKET, FLASHER LENS..GASKET, FLASHER LENS
-
131CD-H3328-00-00 STAY, FLASHER 2STAY, FLASHER 2
-
1492012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
151CD-H3330-00-00 REAR FLASHER LIGHT ASSY 1 (LEFT)REAR FLASHER LIGHT ASSY 1 (LEFT)
-
165S9-H3312-20-00 ..LENS, FLASHER..LENS, FLASHER
-
175SK-H3311-00-00 ..BULB, FLASHER (12V-10W)..BULB, FLASHER (12V-10W)
-
185S9-H3333-10-00 ..SCREW, LENS FITTING..SCREW, LENS FITTING
-
195S9-H3313-00-00 ..GASKET, FLASHER LENS..GASKET, FLASHER LENS
-
201CD-H3340-00-00 REAR FLASHER LIGHT ASSY 2 (RIGHT)REAR FLASHER LIGHT ASSY 2 (RIGHT)
-
215S9-H3312-20-00 ..LENS, FLASHER..LENS, FLASHER
-
225SK-H3311-00-00 ..BULB, FLASHER (12V-10W)..BULB, FLASHER (12V-10W)
-
235S9-H3333-10-00 ..SCREW, LENS FITTING..SCREW, LENS FITTING
-
245S9-H3313-00-00 ..GASKET, FLASHER LENS..GASKET, FLASHER LENS
-
2590176-06055-00 NUT, CROWNNUT, CROWN
-
2690201-06557-00 WASHER, PLATEWASHER, PLATE
-
2790110-06852-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
