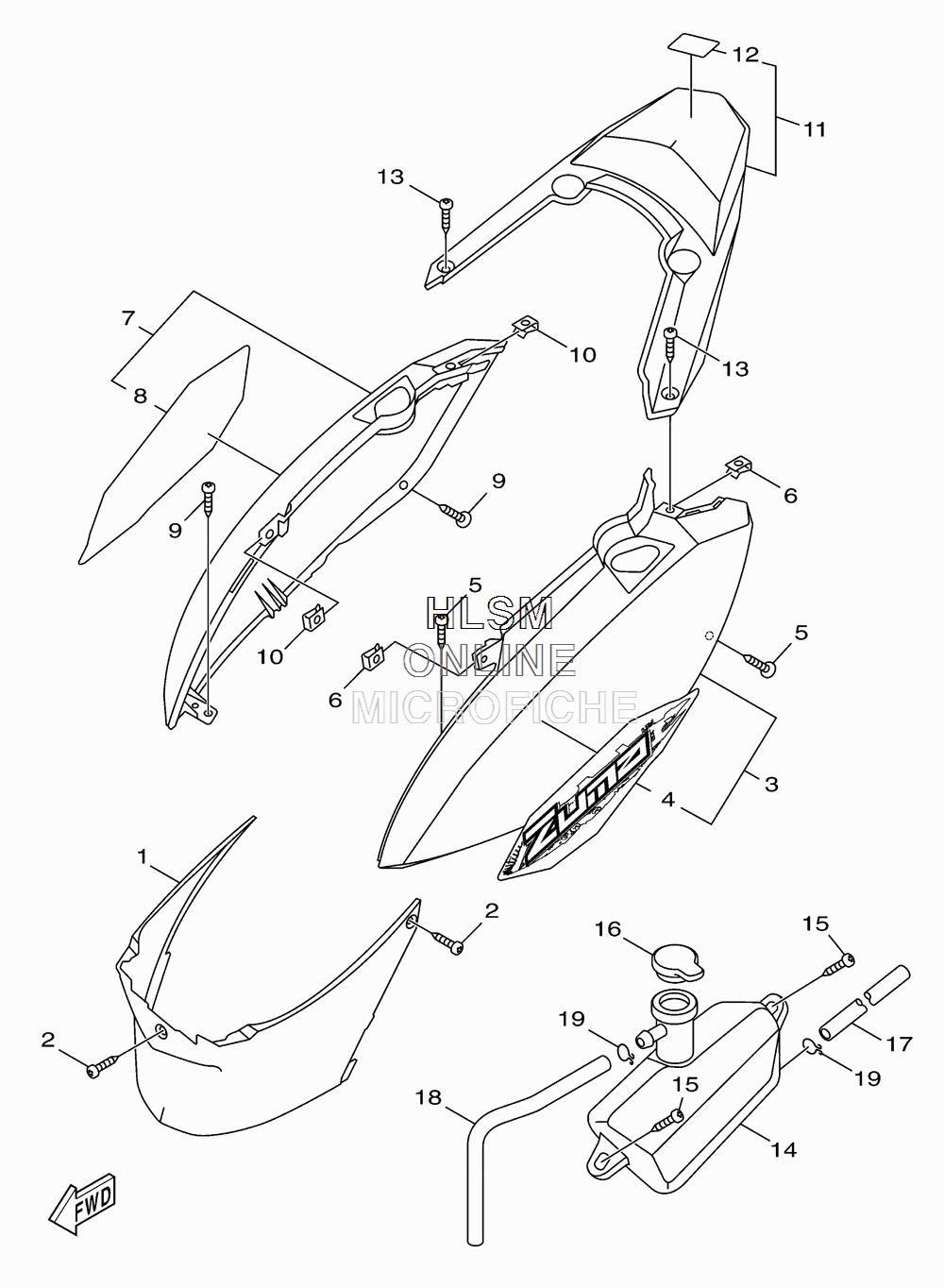

SIDE COVER для Yamaha ZUMA 50 - 2012 года выпуска
-
№АртикулНазвание
-
11CD-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
31CD-F1721-00-P0 COVER, SIDE 2 (BLACK METALLIC X)COVER, SIDE 2 (BLACK METALLIC X)
-
31CD-F1721-00-P1 COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C)COVER, SIDE 2 (DEEP PURPLISH BLUE METALLIC C)
-
31CD-F1721-00-P2 COVER, SIDE 2 (WHITE METALLIC 1)COVER, SIDE 2 (WHITE METALLIC 1)
-
41CD-F1781-00-00 EMBLEM, 1 (BLACK METALLIC X)EMBLEM, 1 (BLACK METALLIC X)
-
41CD-F1781-10-00 EMBLEM, 1 (DEEP PURPLISH BLUE METALLIC C)EMBLEM, 1 (DEEP PURPLISH BLUE METALLIC C)
-
41CD-F1781-20-00 EMBLEM, 1 (WHITE METALLIC 1)EMBLEM, 1 (WHITE METALLIC 1)
-
597707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
690183-05816-00 NUT, SPRINGNUT, SPRING
-
71CD-F1731-00-P0 COVER, SIDE 3 (BLACK METALLIC X)COVER, SIDE 3 (BLACK METALLIC X)
-
71CD-F1731-00-P1 COVER, SIDE 3 (DEEP PURPLISH BLUE METALLIC C)COVER, SIDE 3 (DEEP PURPLISH BLUE METALLIC C)
-
71CD-F1731-00-P2 COVER, SIDE 3 (WHITE METALLIC 1)COVER, SIDE 3 (WHITE METALLIC 1)
-
81CD-F1782-00-00 EMBLEM, 2 (BLACK METALLIC X)EMBLEM, 2 (BLACK METALLIC X)
-
81CD-F1782-10-00 EMBLEM, 2 (DEEP PURPLISH BLUE METALLIC C)EMBLEM, 2 (DEEP PURPLISH BLUE METALLIC C)
-
81CD-F1782-20-00 EMBLEM, 2 (WHITE METALLIC 1)EMBLEM, 2 (WHITE METALLIC 1)
-
997707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1090183-05816-00 NUT, SPRINGNUT, SPRING
-
111CD-F1741-00-P0 COVER, SIDE 4 (BLACK METALLIC X)COVER, SIDE 4 (BLACK METALLIC X)
-
111CD-F1741-00-P1 COVER, SIDE 4 (DEEP PURPLISH BLUE METALLIC C)COVER, SIDE 4 (DEEP PURPLISH BLUE METALLIC C)
-
111CD-F1741-00-P2 COVER, SIDE 4 (WHITE METALLIC 1)COVER, SIDE 4 (WHITE METALLIC 1)
-
123D1-F4875-10-00 LABEL 1LABEL 1
-
1397707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
143B3-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
165CA-F1815-00-00 CAPCAP
-
1790445-09821-00 HOSEHOSE
-
185ST-F1877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
1990467-090A2-00 CLIPCLIP
