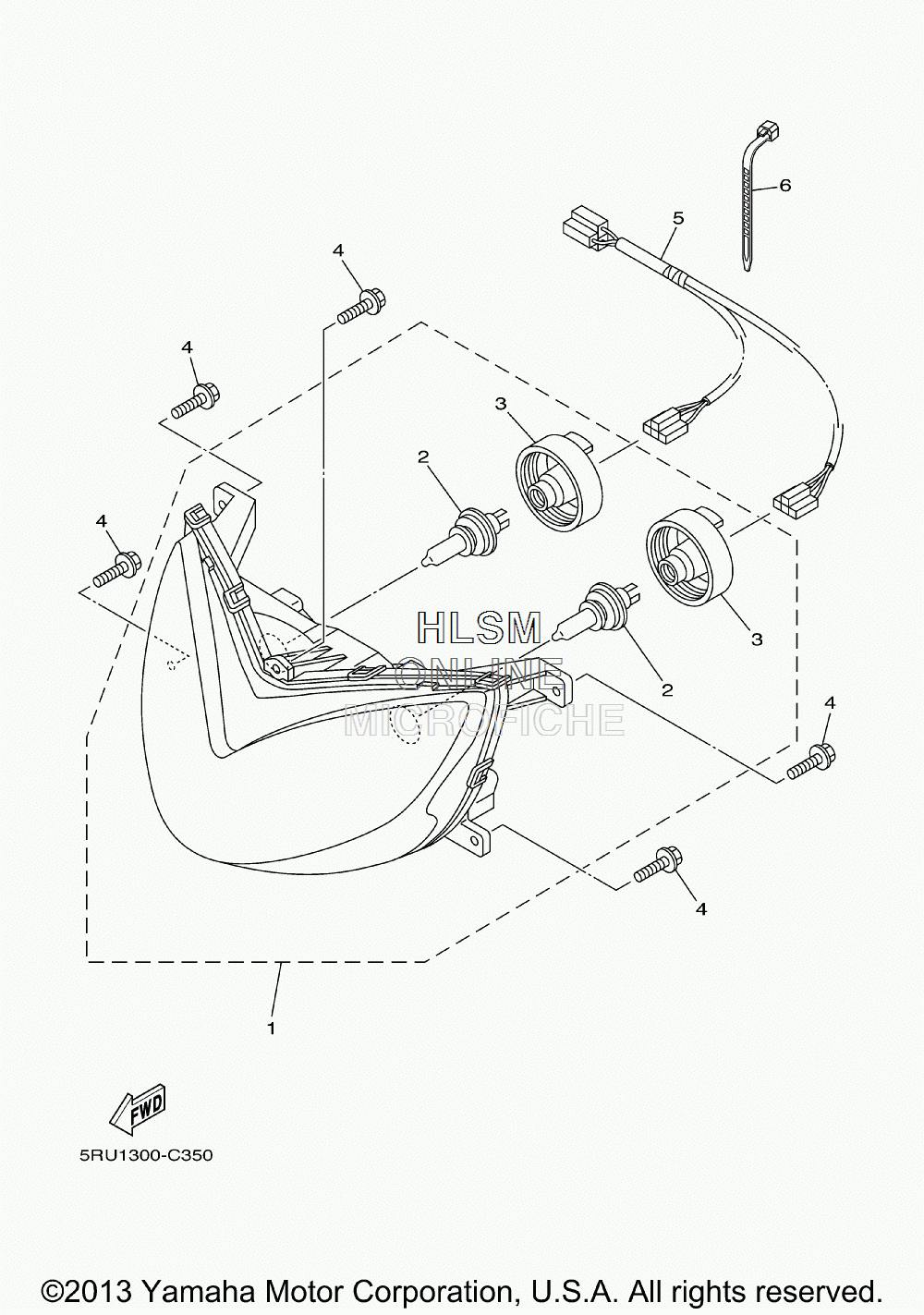

HEADLIGHT ASSY. для Yamaha MAJESTY - 2014 года выпуска
-
№АртикулНазвание
-
15RU-84300-10-00 HEADLIGHT ASSYHEADLIGHT ASSY
-
22F9-84314-00-00 ......BULB (12V-60/55W)......BULB (12V-60/55W)
-
35JW-84397-00-00 ...COVER, SOCKET...COVER, SOCKET
-
490119-06156-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55RU-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
690464-13073-00 CLAMPCLAMP
