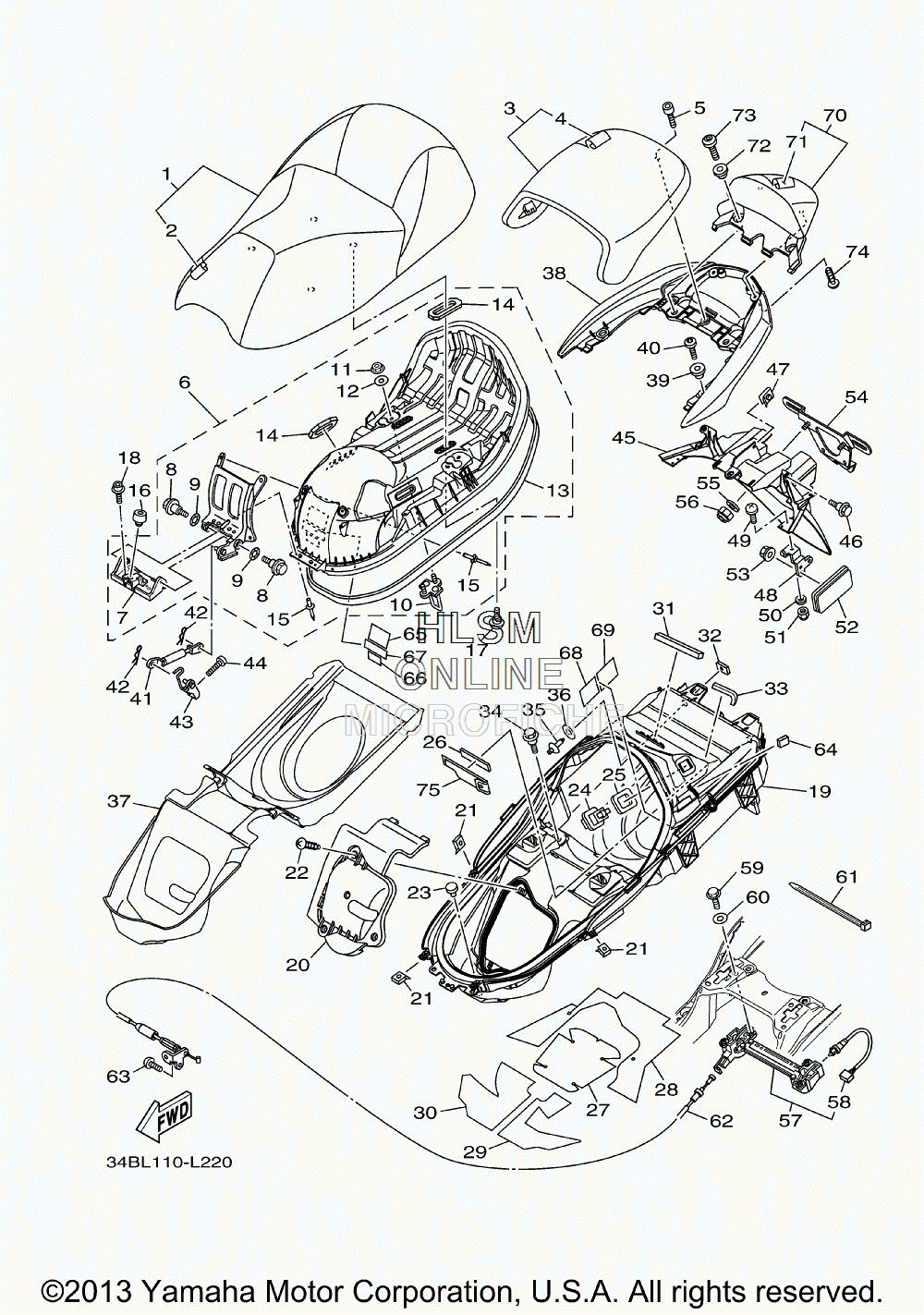

SEAT ASSY. для Yamaha MAJESTY - 2014 года выпуска
-
№АртикулНазвание
-
15RU-24710-20-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
25RU-2470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35RU-24750-10-00 TANDEM SEAT ASSYTANDEM SEAT ASSY
-
45RU-2470H-00-00 ......SEAT COVER COMP., 2......SEAT COVER COMP., 2
-
590110-06244-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
65RU-2470E-30-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
75RU-24726-30-00 ...HINGE, SEAT...HINGE, SEAT
-
890109-06214-00 ...BOLT...BOLT
-
990206-10036-00 ...WASHER, WAVE...WASHER, WAVE
-
105RU-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
1190179-06635-00 ...NUT...NUT
-
1290201-06036-00 ...WASHER, PLATE...WASHER, PLATE
-
135RU-2475M-00-00 ...SEAL...SEAL
-
145RU-24858-10-00 ...SEAL...SEAL
-
1590267-40172-00 ...RIVET, BLIND (4X19)...RIVET, BLIND (4X19)
-
165RU-24768-00-00 STOPPERSTOPPER
-
1790109-06207-00 BOLTBOLT
-
1890110-08087-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
195RU-24704-29-00 BOX ASSYBOX ASSY
-
205RU-2473T-00-00 LID 1LID 1
-
2190183-05042-00 NUT, SPRINGNUT, SPRING
-
2297702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
2390338-11125-00 PLUG SPEC'L SHAPEPLUG SPEC'L SHAPE
-
244HC-84770-00-00 LIGHT, ACCESSORYLIGHT, ACCESSORY
-
255RU-2839M-00-00 SEAL, BOX 2SEAL, BOX 2
-
264KG-2814E-10-00 HOOKHOOK
-
275RU-24737-00-00 DAMPER, SEATDAMPER, SEAT
-
285RU-24747-00-00 DAMPER, SEATDAMPER, SEAT
-
295RU-24854-00-00 DAMPERDAMPER
-
305RU-24849-00-00 DAMPER, 2DAMPER, 2
-
315GM-28435-00-00 DAMPER, 3DAMPER, 3
-
325RU-24724-00-00 DAMPER, SEATDAMPER, SEAT
-
335RU-24724-20-00 DAMPER, SEATDAMPER, SEAT
-
3490109-06208-00 BOLTBOLT
-
3590269-05006-00 RIVETRIVET
-
3690202-05180-00 WASHER, PLATEWASHER, PLATE
-
375RU-24723-00-00 DAMPER, SEATDAMPER, SEAT
-
385RU-24773-00-PA HANDLE, SEAT (DRMK)HANDLE, SEAT (DRMK)
-
3990387-08022-00 COLLARCOLLAR
-
4090111-08040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4134B-2478G-10-00 STOPPERSTOPPER
-
4290468-18121-00 CLIPCLIP
-
435RU-2475H-10-00 BRACKET, SEAT LEVER 1BRACKET, SEAT LEVER 1
-
4492012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
455RU-21629-00-00 GUARD, MUDGUARD, MUD
-
4690109-06208-00 BOLTBOLT
-
4790183-06069-00 NUT, SPRINGNUT, SPRING
-
485RU-21641-00-00 BRACKET, REFLECTORBRACKET, REFLECTOR
-
4990149-04278-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
5090201-04018-00 WASHER, PLATEWASHER, PLATE
-
5195602-04100-00 NUT, UNUT, U
-
523Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5395602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
545RU-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5590201-06032-00 WASHER, PLATEWASHER, PLATE
-
5695602-06100-00 NUT, UNUT, U
-
575RU-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
585RU-81860-00-00 ...SWITCH ASSY...SWITCH ASSY
-
5995822-06020-00 BOLT, FLANGEBOLT, FLANGE
-
6090201-06077-00 WASHER, PLATEWASHER, PLATE
-
6190464-16061-00 CLAMPCLAMP
-
625RU-2478E-10-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
6392012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
643TB-28217-00-00 DAMPER 1DAMPER 1
-
655RU-21668-00-00 LABEL, TIRELABEL, TIRE
-
663LD-24877-A0-00 LABEL, CAUTION (ENGLISH)LABEL, CAUTION (ENGLISH)
-
673JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
685RU-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
6934B-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
705RU-24790-20-00 SEAT BACK ASSYSEAT BACK ASSY
-
715RU-24791-20-00 ...COVER, SEAT BACK...COVER, SEAT BACK
-
7290387-08022-00 COLLARCOLLAR
-
7390111-08061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7497702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
755RU-28100-00-00 TOOL KITTOOL KIT
