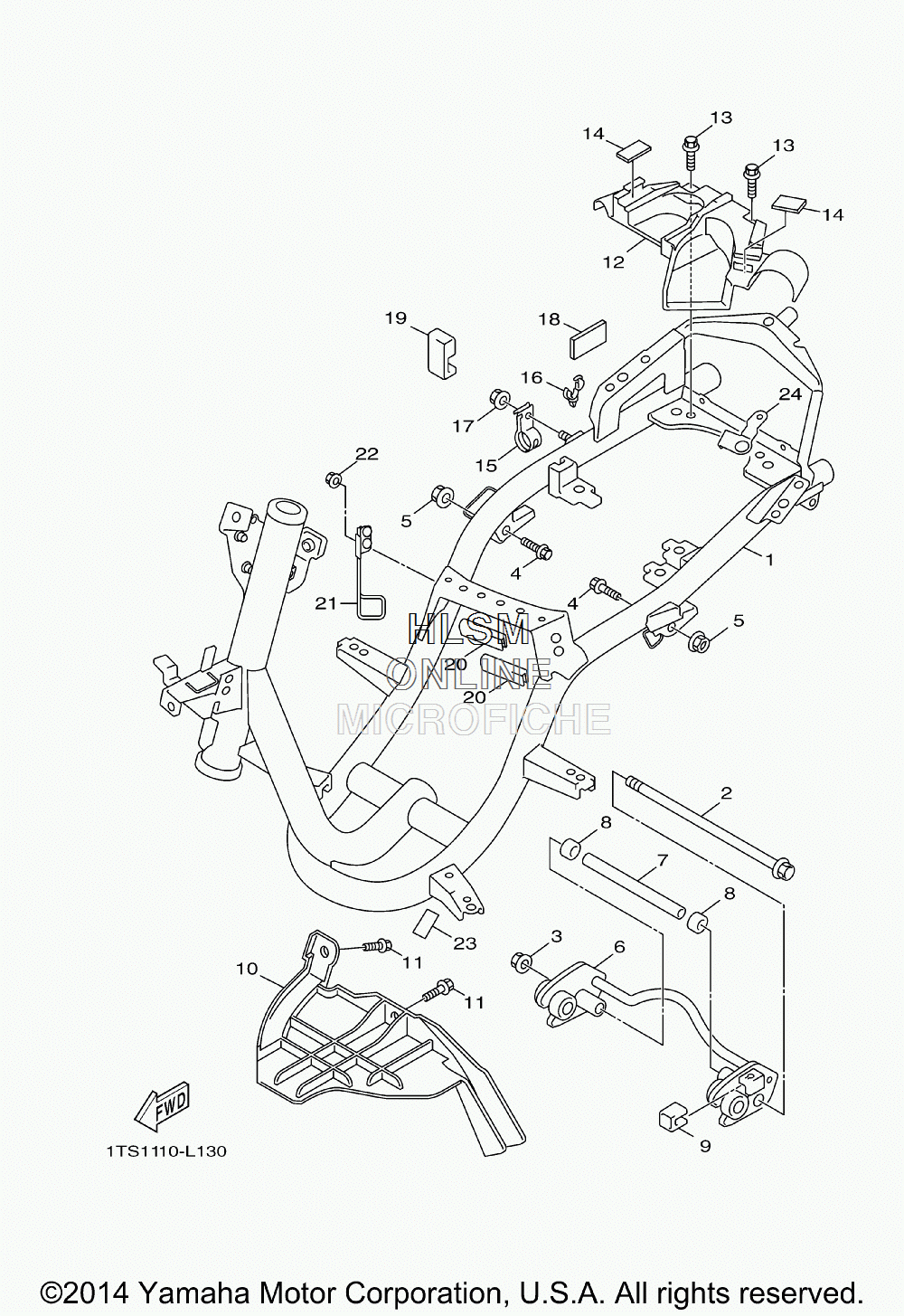

FRAME для Yamaha VINO CLASSIC - 2015 года выпуска
-
№АртикулНазвание
-
11TS-F1110-00-33 FRAME COMP. (YAMAHA BLACK)FRAME COMP. (YAMAHA BLACK)
-
25ST-F1481-00-00 BOLT, ENGINE MOUNTING 1BOLT, ENGINE MOUNTING 1
-
39560L-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
495827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
590185-10801-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
65ST-F1410-10-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
75ST-F1459-00-00 SPACERSPACER
-
85ST-F7235-00-00 COVER, DUSTCOVER, DUST
-
95ST-F139X-00-00 DAMPERDAMPER
-
105ST-F117G-00-00 PROTECTORPROTECTOR
-
1195807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1213P-F1652-00-00 PROTECTORPROTECTOR
-
1390119-06079-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1413P-F8371-00-00 DAMPERDAMPER
-
1513P-F1374-10-00 HOLDER, FUEL PIPEHOLDER, FUEL PIPE
-
1690464-30804-00 CLAMPCLAMP
-
1790176-06806-00 NUT, CROWNNUT, CROWN
-
185SW-F622F-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1937B-F117Y-00-00 COVER 10COVER 10
-
205ML-F1541-00-00 DAMPER 1DAMPER 1
-
213P3-F1164-00-00 HOLDER, CABLEHOLDER, CABLE
-
2295707-06500-00 NUT, FLANGENUT, FLANGE
-
231TS-F1652-00-00 PROTECTORPROTECTOR
-
2413P-F419F-10-00 BRACKET, CANISTORBRACKET, CANISTOR
