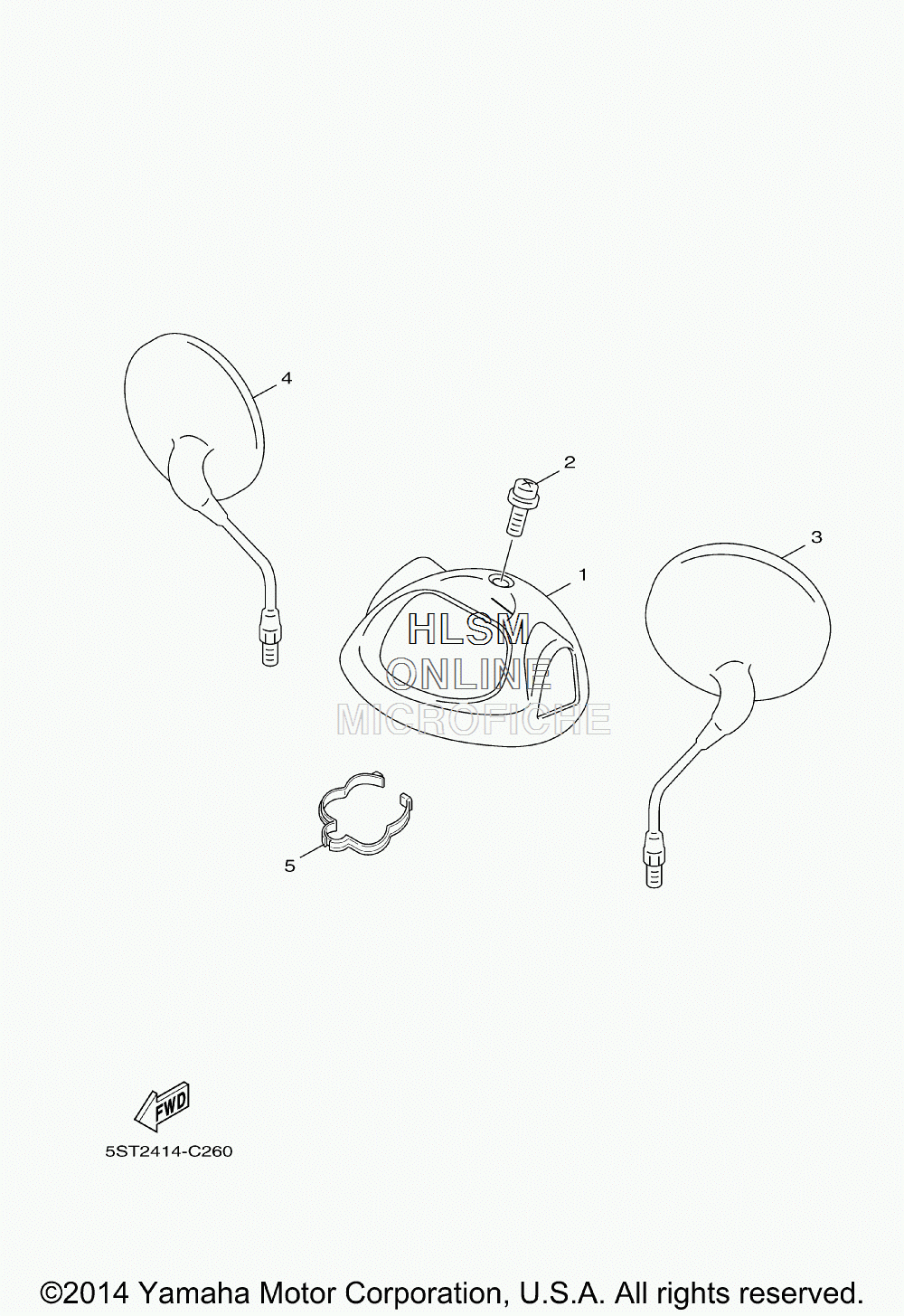

HANDLEBAR - COVER W/ MIRRORS для Yamaha VINO CLASSIC - 2015 года выпуска
-
№АртикулНазвание
-
15ST-F6143-00-PH COVER, HANDLE UPPER 1 (VRC2)COVER, HANDLE UPPER 1 (VRC2)
-
290159-05820-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
35FH-F6280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
45FH-F6290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
55ST-F627E-00-00 CLAMP, WIRECLAMP, WIRE
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- • HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- REAR ARM
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
