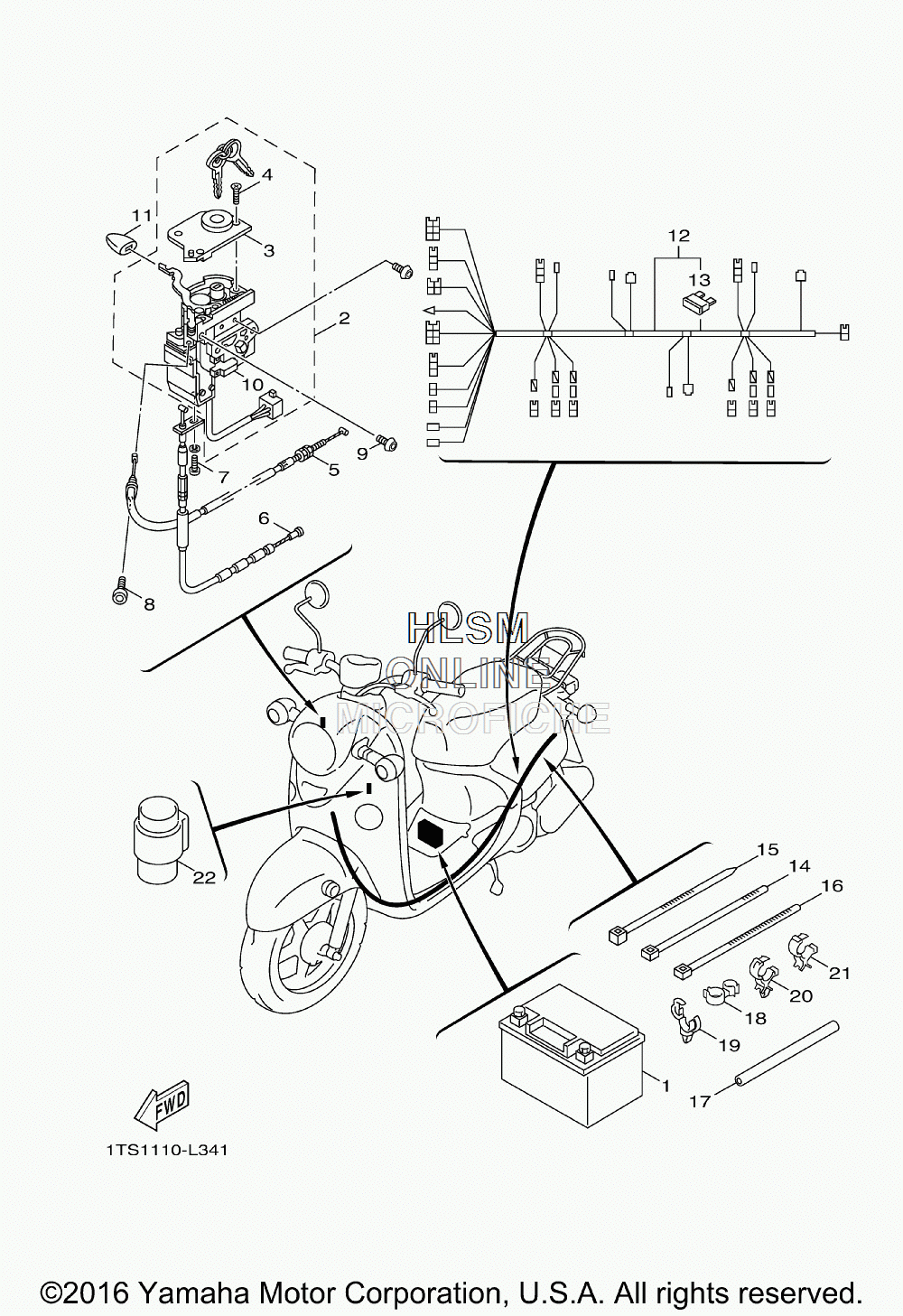

ELECTRICAL 2 для Yamaha VINO CLASSIC [XC50G] - 2016 года выпуска
-
№АртикулНазвание
-
15PJ-H2100-00-00 BATTERY ASSY (GTX5L-BS)BATTERY ASSY (GTX5L-BS)
-
25ST-WH203-55-00 KEY SETKEY SET
-
25ST-WH202-40-00 KEY SETKEY SET
-
35ST-F831B-00-00 ...CASE, UNIT 1...CASE, UNIT 1
-
498707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
55ST-F637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
65ST-F478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
798507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890110-05800-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990149-06813-00 SCREWSCREW
-
1090149-06814-00 SCREWSCREW
-
115SU-F836X-00-00 KNOB, 1KNOB, 1
-
121TS-H2590-01-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
135ML-H2151-10-00 ...FUSE (15A)...FUSE (15A)
-
1490464-12812-00 CLAMPCLAMP
-
1590465-13152-00 CLAMPCLAMP
-
1690464-60800-00 CLAMPCLAMP
-
171TS-F117G-00-00 PROTECTORPROTECTOR
-
1890464-17803-00 CLAMPCLAMP
-
1990464-20803-00 CLAMPCLAMP
-
2090464-16803-00 CLAMPCLAMP
-
2190464-30801-00 CLAMPCLAMP
-
225XN-83350-00-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
