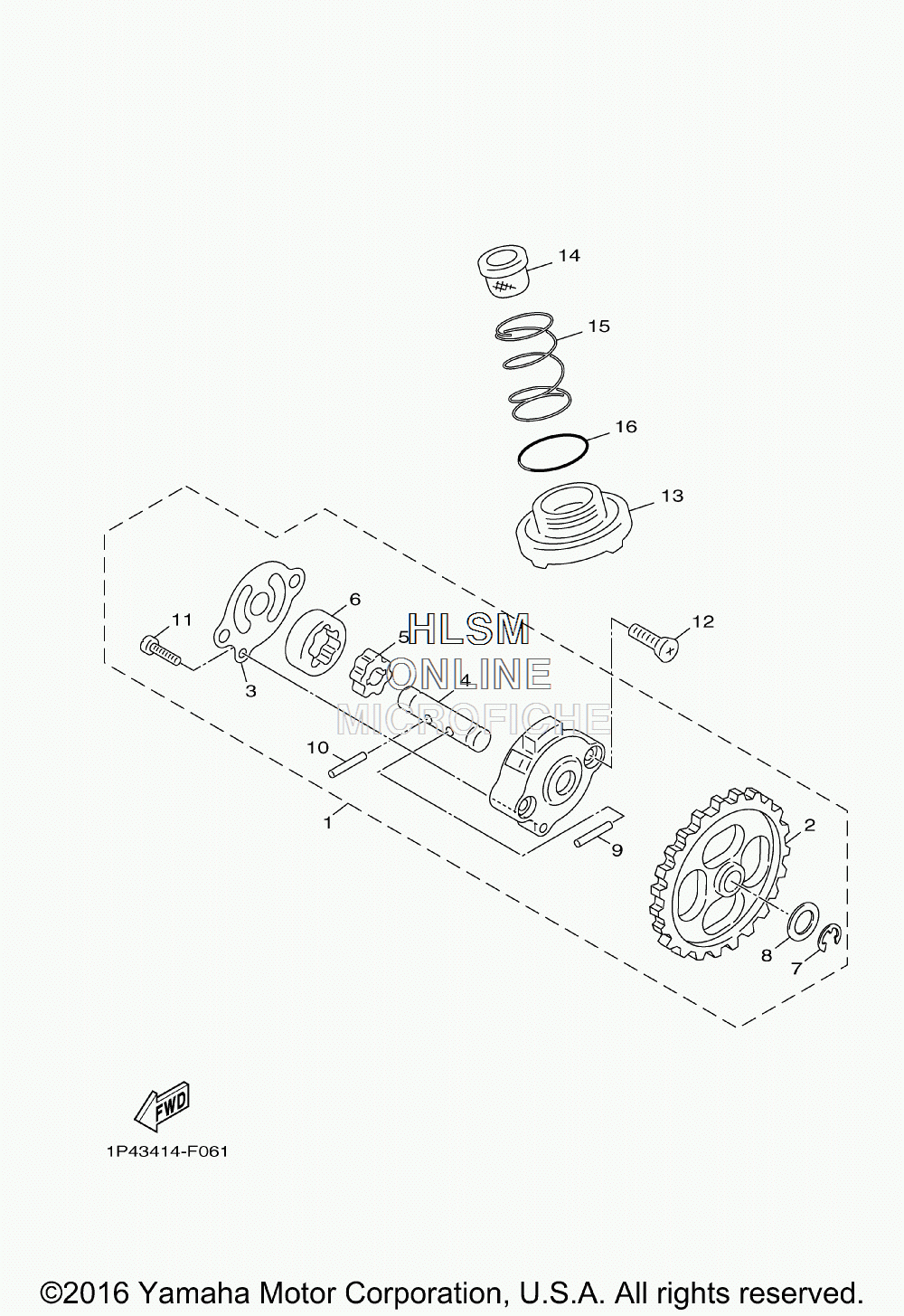

OIL PUMP для Yamaha VINO CLASSIC [XC50G] - 2016 года выпуска
-
№АртикулНазвание
-
15ST-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
25ST-E3325-00-00 ...GEAR, PUMP DRIVEN...GEAR, PUMP DRIVEN
-
35ST-E3316-00-00 ...COVER, PUMP...COVER, PUMP
-
45ST-E3314-00-00 ...SHAFT, PUMP...SHAFT, PUMP
-
55ST-E3312-00-00 ...ROTOR, INNER...ROTOR, INNER
-
65ST-E3311-00-00 ...OUTER ROTOR...OUTER ROTOR
-
75ST-E3364-00-00 ...CIRCLIP...CIRCLIP
-
85ST-E3318-00-00 ...WASHER...WASHER
-
95ST-E3362-00-00 ...PIN DOWEL...PIN DOWEL
-
105ST-E3363-00-00 ...PIN DOWEL...PIN DOWEL
-
115ST-E3365-00-00 ...SCREW PAN HEAD...SCREW PAN HEAD
-
1298707-05016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
133UH-E5351-00-00 PLUG, DRAINPLUG, DRAIN
-
143KW-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
1590501-16829-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1693210-35879-00 O-RINGO-RING
