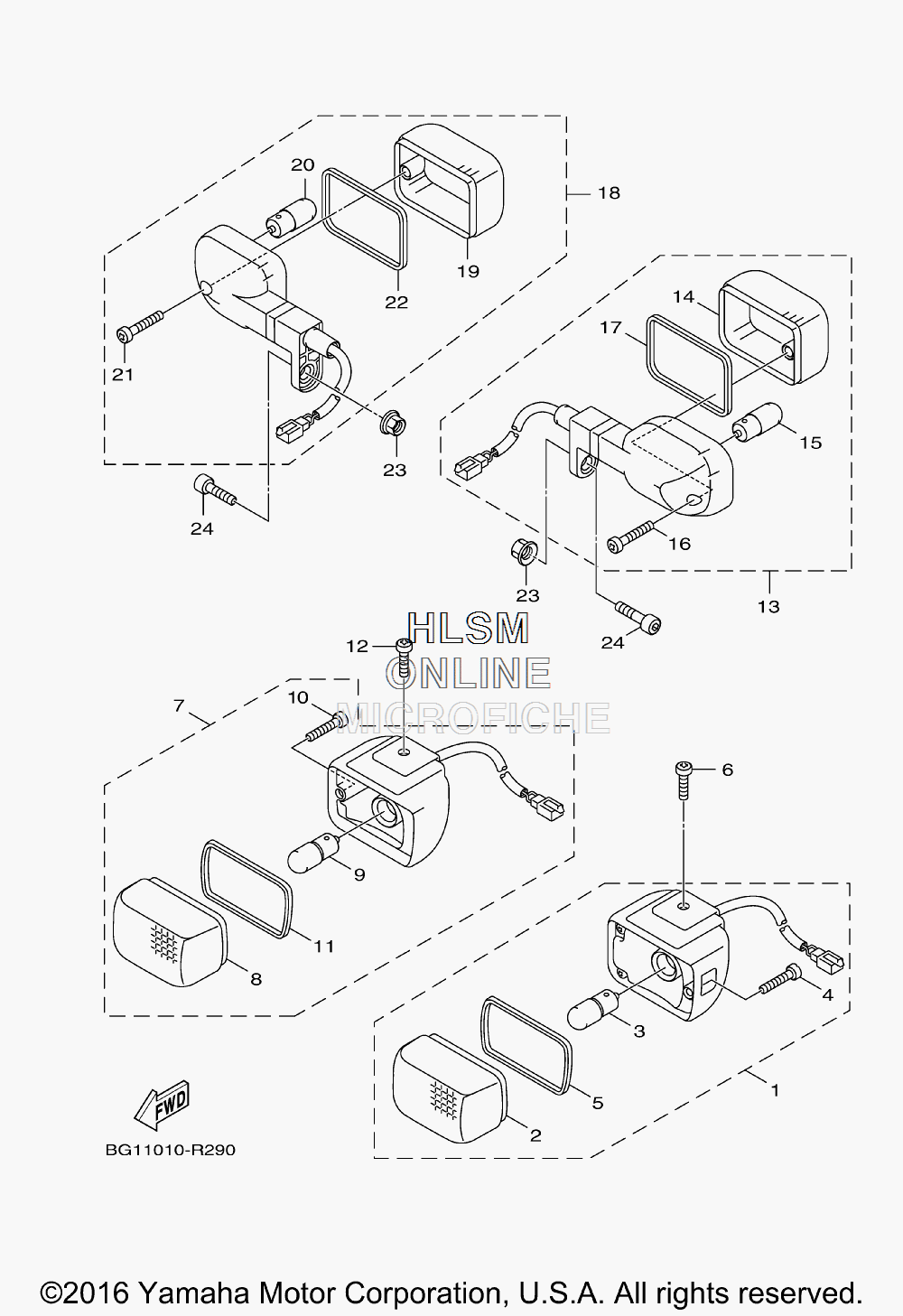

FLASHER LIGHT для Yamaha ZUMA 125 (BLUE) [YW125GL] - 2016 года выпуска
-
№АртикулНазвание
-
1BC9-H3310-00-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
2BC9-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
35SK-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
45S9-H3333-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
55S9-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
692012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7BC9-H3320-00-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
8BC9-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
95SK-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
105S9-H3333-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
115S9-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
1292012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
13BC9-H3330-00-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
14BC9-H3332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
155SK-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
165S9-H3333-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
175S9-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
18BC9-H3340-00-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
19BC9-H3332-00-00 ...LENS, FLASHER...LENS, FLASHER
-
205SK-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
215S9-H3333-00-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
225S9-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
2395707-06500-00 NUT, FLANGENUT, FLANGE
-
2490110-06852-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
