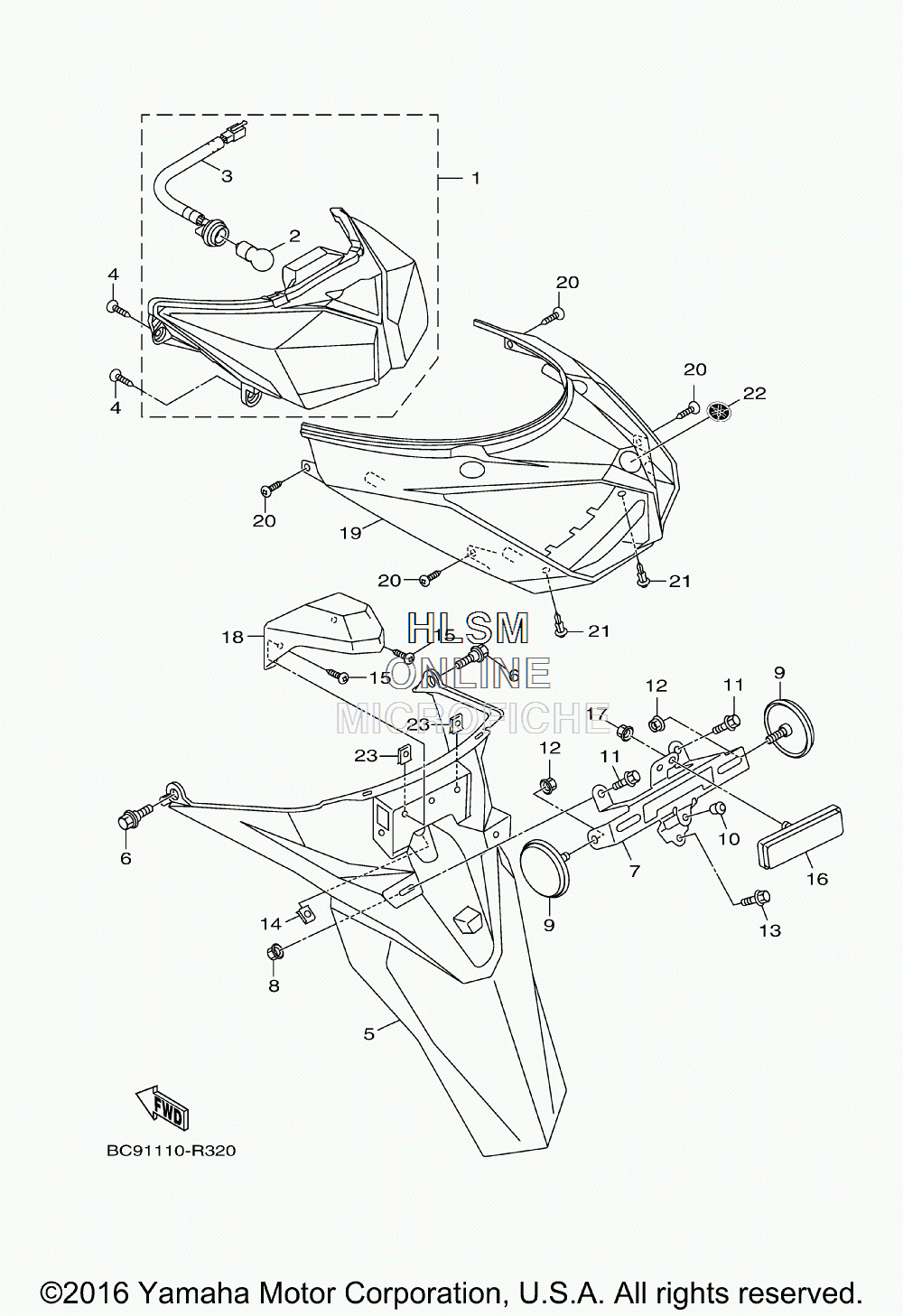

TAILLIGHT ASSY. для Yamaha ZUMA 125 (BLUE) [YW125GL] - 2016 года выпуска
-
№АртикулНазвание
-
12JS-H4700-00-00 TAILLIGHT ASSYTAILLIGHT ASSY
-
25ML-H4714-00-00 ...BULB...BULB
-
32JS-H473A-00-00 ...CORD ASSY...CORD ASSY
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
52JS-F1685-10-00 BRACKET, LICENSEBRACKET, LICENSE
-
690109-063F1-00 BOLTBOLT
-
7BC9-H4751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
92SW-H5131-00-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
103D1-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
1190119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490183-06813-00 NUT, SPRINGNUT, SPRING
-
1597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1646P-H5130-00-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
1795707-05300-00 NUT, FLANGENUT, FLANGE
-
18BC9-H4745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
192JS-H4716-10-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
2097707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2190269-06803-00 RIVETRIVET
-
221MS-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
2390183-05816-00 NUT, SPRINGNUT, SPRING
