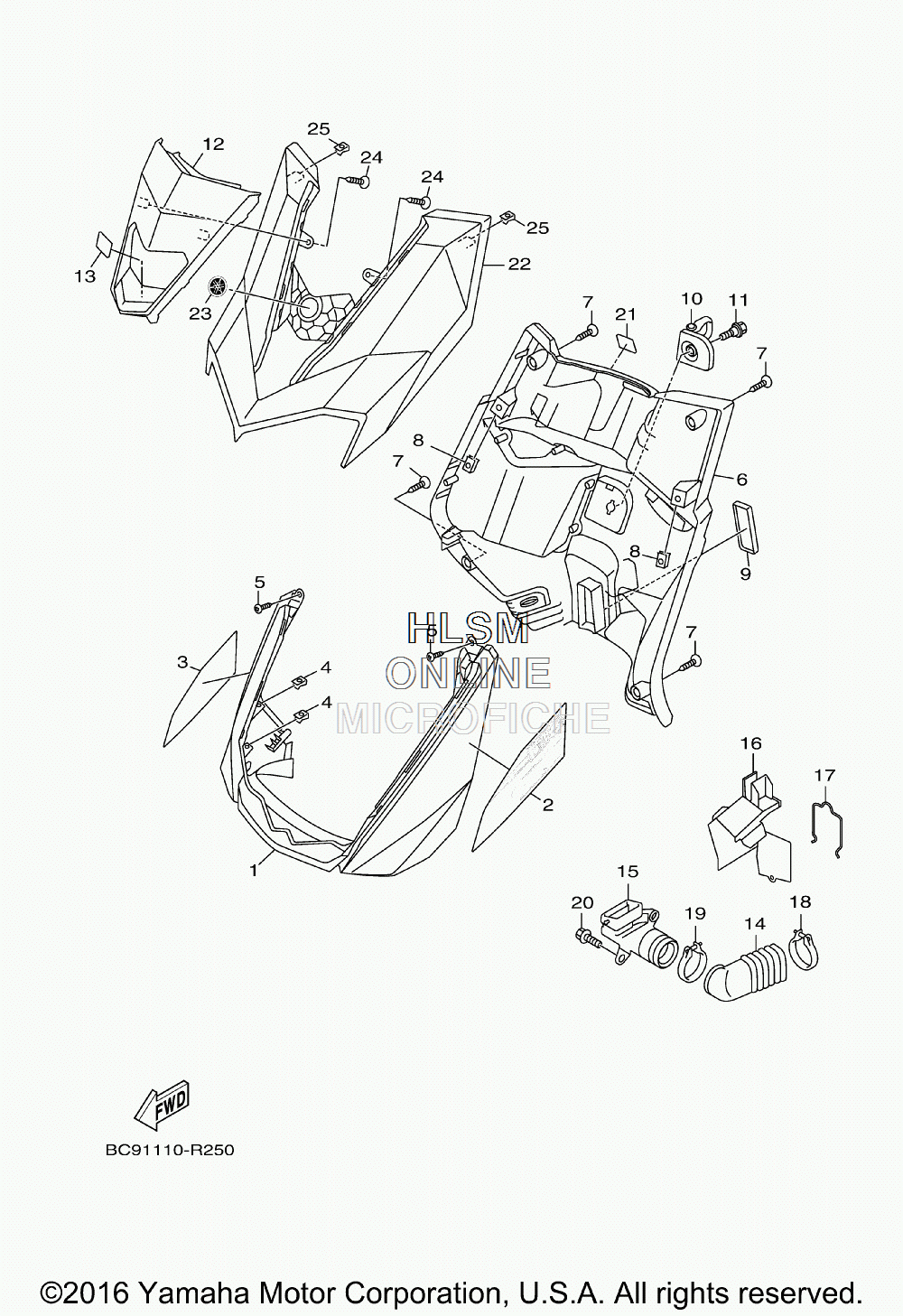

COWLING W/ LEG SHIELD для Yamaha ZUMA 125 (WHITE) [YW125GW] - 2016 года выпуска
-
№АртикулНазвание
-
12JS-F8311-00-UJ LEG SHIELD 1 (OPT) (RW)LEG SHIELD 1 (OPT) (RW)
-
12JS-F8311-00-P9 LEG SHIELD 1 (OPT) (DPBM14)LEG SHIELD 1 (OPT) (DPBM14)
-
2BC9-F8391-10-00 GRAPHIC 1 (OPT) (DPBM14)GRAPHIC 1 (OPT) (DPBM14)
-
2BC9-F8391-00-00 GRAPHIC 1 (OPT) (RW)GRAPHIC 1 (OPT) (RW)
-
3BC9-F8392-10-00 GRAPHIC 2 (OPT) (DPBM14)GRAPHIC 2 (OPT) (DPBM14)
-
3BC9-F8392-00-00 GRAPHIC 2 (OPT) (RW)GRAPHIC 2 (OPT) (RW)
-
490183-06813-00 NUT, SPRINGNUT, SPRING
-
597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
62JS-F8300-00-00 LEG SHIELD ASSYLEG SHIELD ASSY
-
790169-05001-00 TAPPING SCREWTAPPING SCREW
-
890183-05816-00 NUT, SPRINGNUT, SPRING
-
95FM-F8349-00-00 CAPCAP
-
101CF-F8379-00-00 HOOKHOOK
-
1190109-068A0-00 BOLTBOLT
-
122JS-F8345-00-P1 MOLE 1 (SMX)MOLE 1 (SMX)
-
1390520-01801-00 DAMPER, PLATEDAMPER, PLATE
-
145ML-F838N-01-00 DUCT 1DUCT 1
-
155ML-F838R-00-00 DUCT 2DUCT 2
-
162JS-F8365-00-00 COVERCOVER
-
175ML-F8457-00-00 CLIPCLIP
-
185CA-F1823-20-00 CLAMP, HOSECLAMP, HOSE
-
1990450-53801-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2090109-063F1-00 BOLTBOLT
-
211CD-F4877-00-00 LABEL, CAUTIONLABEL, CAUTION
-
222JS-H4144-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
231MS-F1569-00-00 GRAPHIC 1GRAPHIC 1
-
2497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
2590183-05816-00 NUT, SPRINGNUT, SPRING
