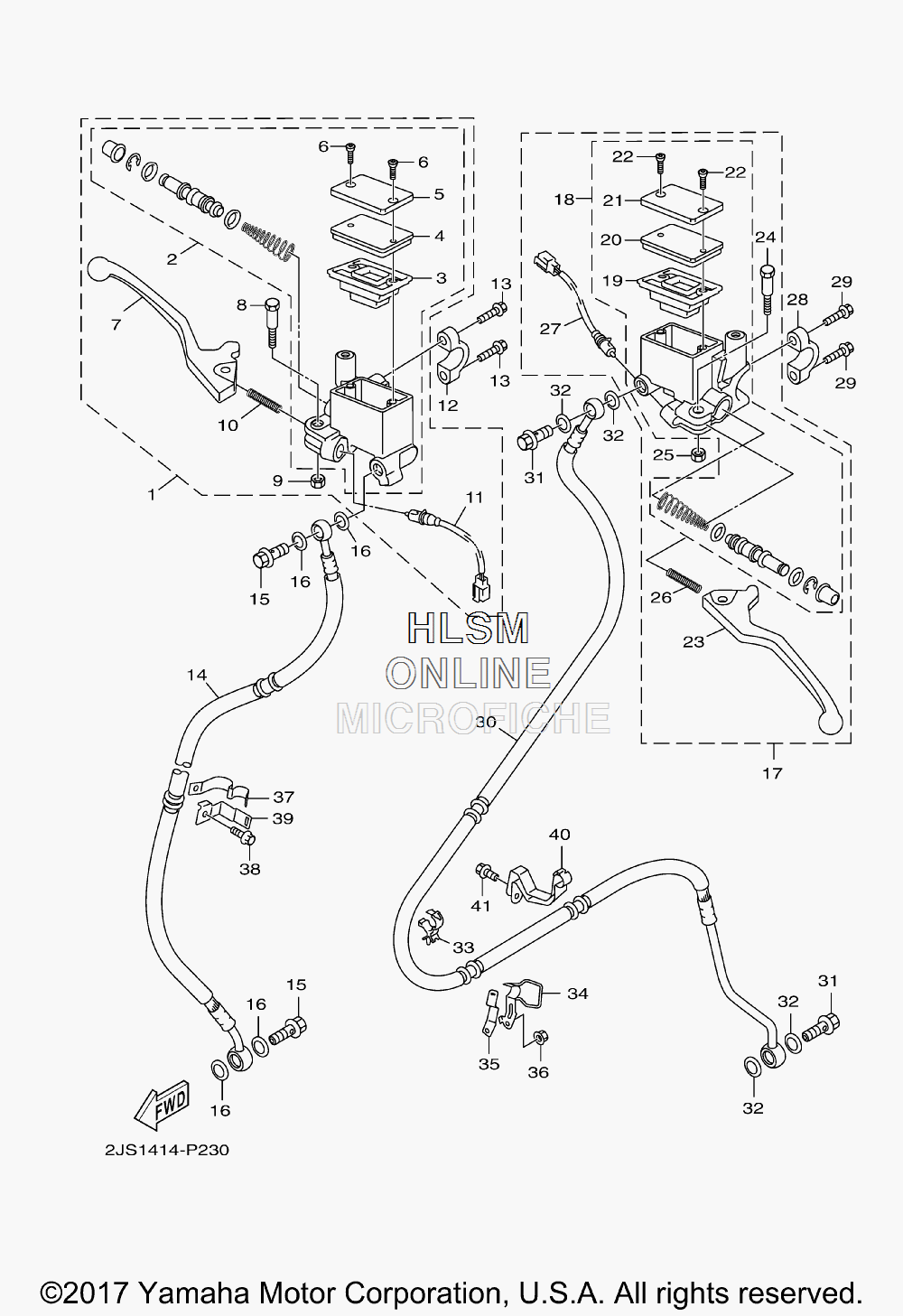

BRAKE - FRONT MASTER CYLINDER для Yamaha ZUMA 125 - 2017 года выпуска
-
№АртикулНазвание
-
12JS-F5870-20-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22JS-WF645-00-00 ...MASTER CYLINDER SUB ASSY...MASTER CYLINDER SUB ASSY
-
32JS-F5854-00-00 ......DIAPHRAGM, RESERVOIR......DIAPHRAGM, RESERVOIR
-
42JS-F585B-00-00 ......PLATE, DIAPHRAGM......PLATE, DIAPHRAGM
-
52JS-F5852-00-00 ......CAP, RESERVOIR......CAP, RESERVOIR
-
698707-04012-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
72JS-H3922-10-00 ...LEVER 2...LEVER 2
-
841D-H3945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
995607-06100-00 ...NUT, U...NUT, U
-
1090501-10312-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
112JS-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
123GF-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
1395027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
142JS-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1590401-10805-00 BOLT, UNIONBOLT, UNION
-
1690201-10118-00 WASHER, PLATEWASHER, PLATE
-
172JS-F5870-30-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
182JS-WF645-10-00 ...MASTER CYLINDER SUB ASSY...MASTER CYLINDER SUB ASSY
-
192JS-F5854-00-00 ......DIAPHRAGM, RESERVOIR......DIAPHRAGM, RESERVOIR
-
202JS-F585B-00-00 ......PLATE, DIAPHRAGM......PLATE, DIAPHRAGM
-
212JS-F5852-00-00 ......CAP, RESERVOIR......CAP, RESERVOIR
-
2298707-04012-00 ......SCREW, FLAT HEAD......SCREW, FLAT HEAD
-
232JS-H3912-10-00 ...LEVER 1...LEVER 1
-
2441D-H3945-00-00 ...BOLT, LEVER...BOLT, LEVER
-
2595607-06100-00 ...NUT, U...NUT, U
-
2690501-10312-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
272JS-H3980-00-00 ...FRONT STOP SWITCH ASSY...FRONT STOP SWITCH ASSY
-
283GF-F5867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
2995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
302JS-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3190401-10805-00 BOLT, UNIONBOLT, UNION
-
3290201-10118-00 WASHER, PLATEWASHER, PLATE
-
3390464-16803-00 CLAMPCLAMP
-
342JS-F5887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
352JS-F5887-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3690176-06011-00 NUT, CROWNNUT, CROWN
-
372JS-F587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3890176-06011-00 NUT, CROWNNUT, CROWN
-
392JS-F587A-10-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
402JS-F588G-10-00 HOLDER, BRAKE HOSE 6HOLDER, BRAKE HOSE 6
-
4195807-06012-00 BOLT, FLANGEBOLT, FLANGE
