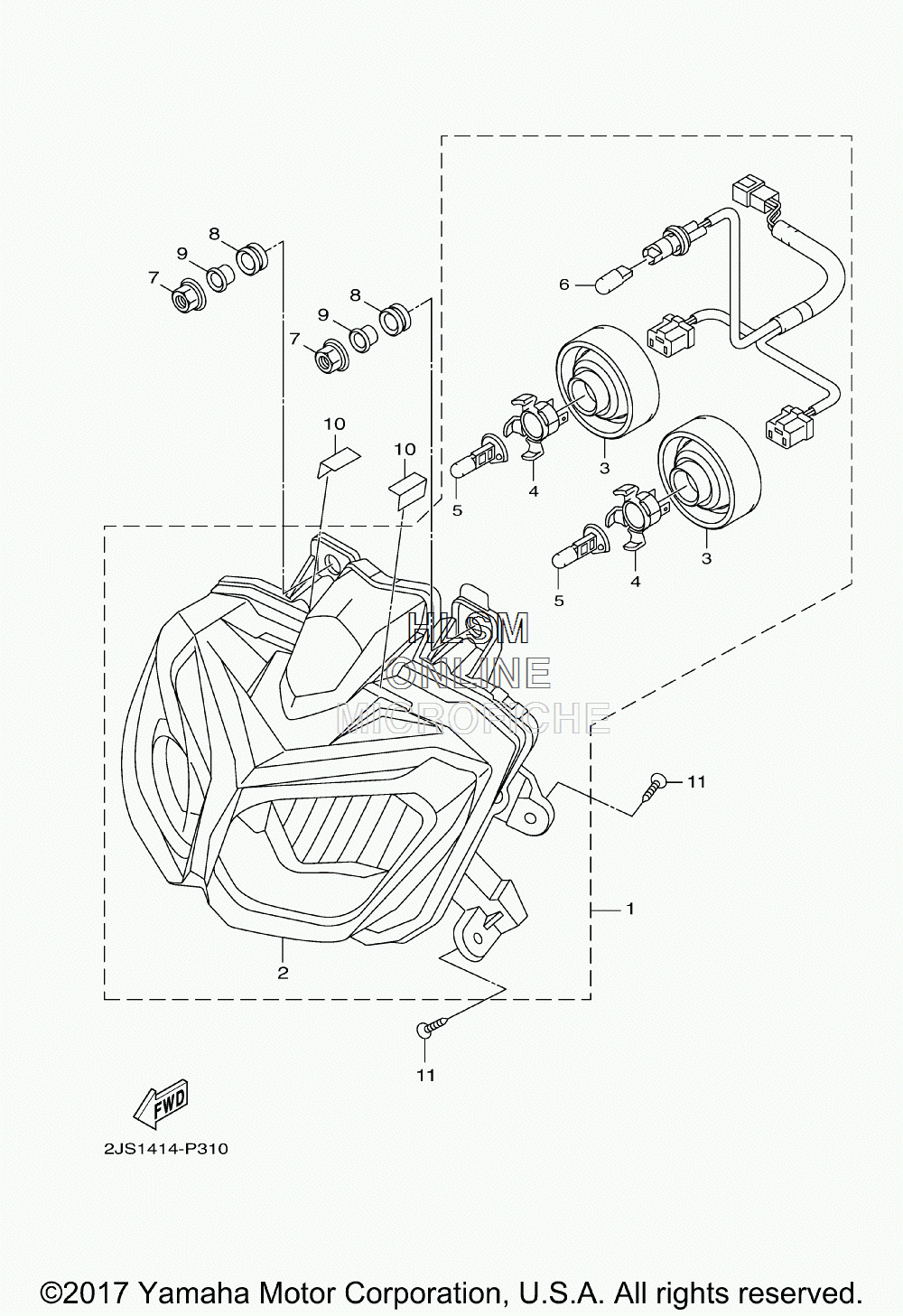

HEADLIGHT ASSY. для Yamaha ZUMA 125 - 2017 года выпуска
-
№АртикулНазвание
-
12JS-H4310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
22JS-H430A-00-00 ...HEADLIGHT UNIT ASSY...HEADLIGHT UNIT ASSY
-
32JS-H4396-00-00 ...COVER...COVER
-
42JS-H411M-00-00 ...SOCKET ASSY...SOCKET ASSY
-
52JS-H4314-00-00 ...BULB, HEADLIGHT (12V-5.5W)...BULB, HEADLIGHT (12V-5.5W)
-
65FM-H4347-00-00 ...BULB (12V-5W)...BULB (12V-5W)
-
795702-06500-00 NUT, FLANGENUT, FLANGE
-
890480-13398-00 GROMMETGROMMET
-
990387-067N5-00 COLLARCOLLAR
-
1090520-01801-00 DAMPER, PLATEDAMPER, PLATE
-
1190119-06821-00 BOLT, WITH WASHERBOLT, WITH WASHER
