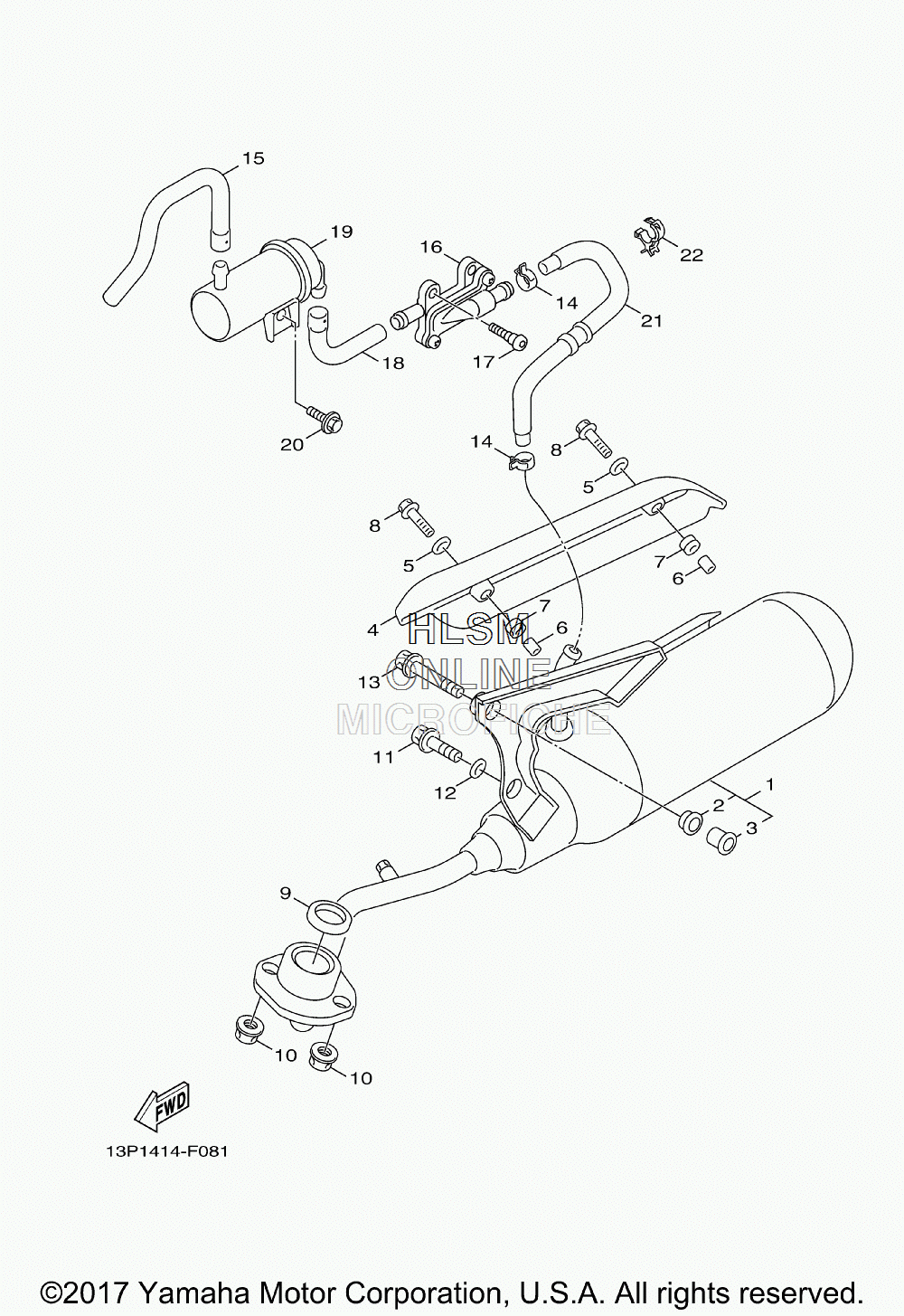

EXHAUST ASSY. для Yamaha VINO CLASSIC - 2018 года выпуска
-
№АртикулНазвание
-
11TS-E4610-00-98 EXHAUST PIPE ASSY 1 (LGB - LOW GLOSS BLACK)EXHAUST PIPE ASSY 1 (LGB - LOW GLOSS BLACK)
-
24VP-E4445-00-00 ...GROMMET...GROMMET
-
34VP-E4779-00-00 ...COLLAR...COLLAR
-
43P3-E4708-00-00 PROTECTOR ASSYPROTECTOR ASSY
-
590201-06055-00 WASHER, PLATEWASHER, PLATE
-
690387-06817-00 COLLARCOLLAR
-
790480-12804-00 GROMMETGROMMET
-
898980-06016-00 SCREW, BINDSCREW, BIND
-
91P4-E4613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1095707-08500-00 NUT, FLANGENUT, FLANGE
-
1195817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-08852-00 WASHER, PLATEWASHER, PLATE
-
1390105-08002-00 BOLT, FLANGEBOLT, FLANGE
-
1490468-08812-00 CLIPCLIP
-
1513P-E4885-00-00 HOSE, BEND 5HOSE, BEND 5
-
163B3-E4803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
1792017-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1813P-E4884-00-00 HOSE, BEND 4HOSE, BEND 4
-
1913P-E4806-00-00 AIR FILTERAIR FILTER
-
2090109-063F1-00 BOLTBOLT
-
2113P-E4883-00-00 HOSE, BEND 3HOSE, BEND 3
-
2290464-20801-00 CLAMPCLAMP
