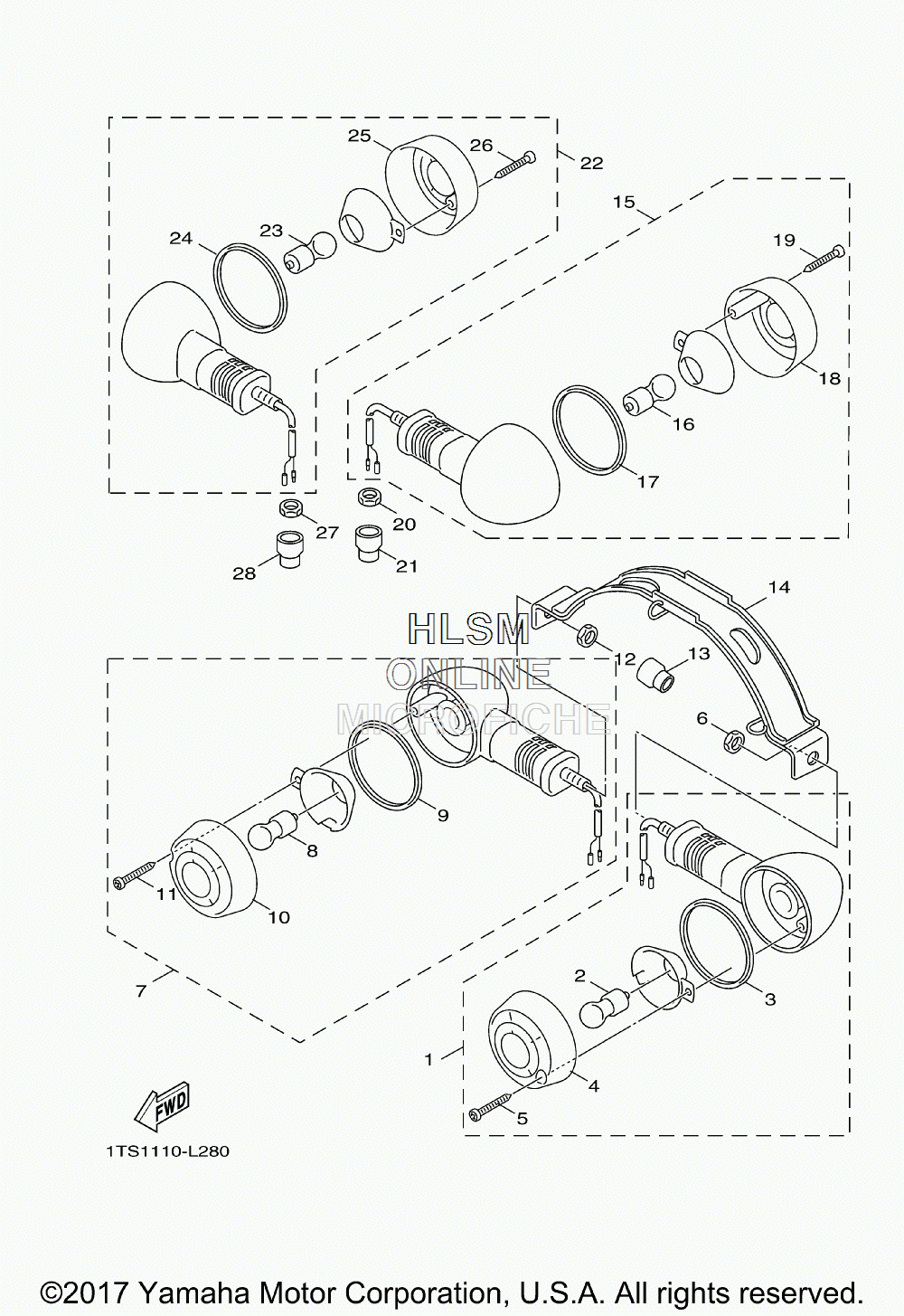

FLASHER LIGHT для Yamaha VINO CLASSIC - 2018 года выпуска
-
№АртикулНазвание
-
13D1-H3310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
23D1-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
33D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
43D1-H3322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
597780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
695307-12600-00 NUTNUT
-
73D1-H3320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
83D1-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
93D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
103D1-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1197780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1295307-12600-00 NUTNUT
-
131TS-H3365-00-00 CAPCAP
-
143D1-H3318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
153D1-H3330-10-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
163D1-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
173D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
183D1-H3312-00-00 ...LENS, FLASHER...LENS, FLASHER
-
1997780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2095307-12600-00 NUTNUT
-
211TS-H3365-00-00 CAPCAP
-
223D1-H3340-10-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
233D1-H3311-00-00 ...BULB, FLASHER (12V-10W)...BULB, FLASHER (12V-10W)
-
243D1-H3313-00-00 ...GASKET, FLASHER LENS...GASKET, FLASHER LENS
-
253D1-H3322-00-00 ...LENS, FLASHER 2...LENS, FLASHER 2
-
2697780-04640-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2795307-12600-00 NUTNUT
-
281TS-H3365-00-00 CAPCAP
