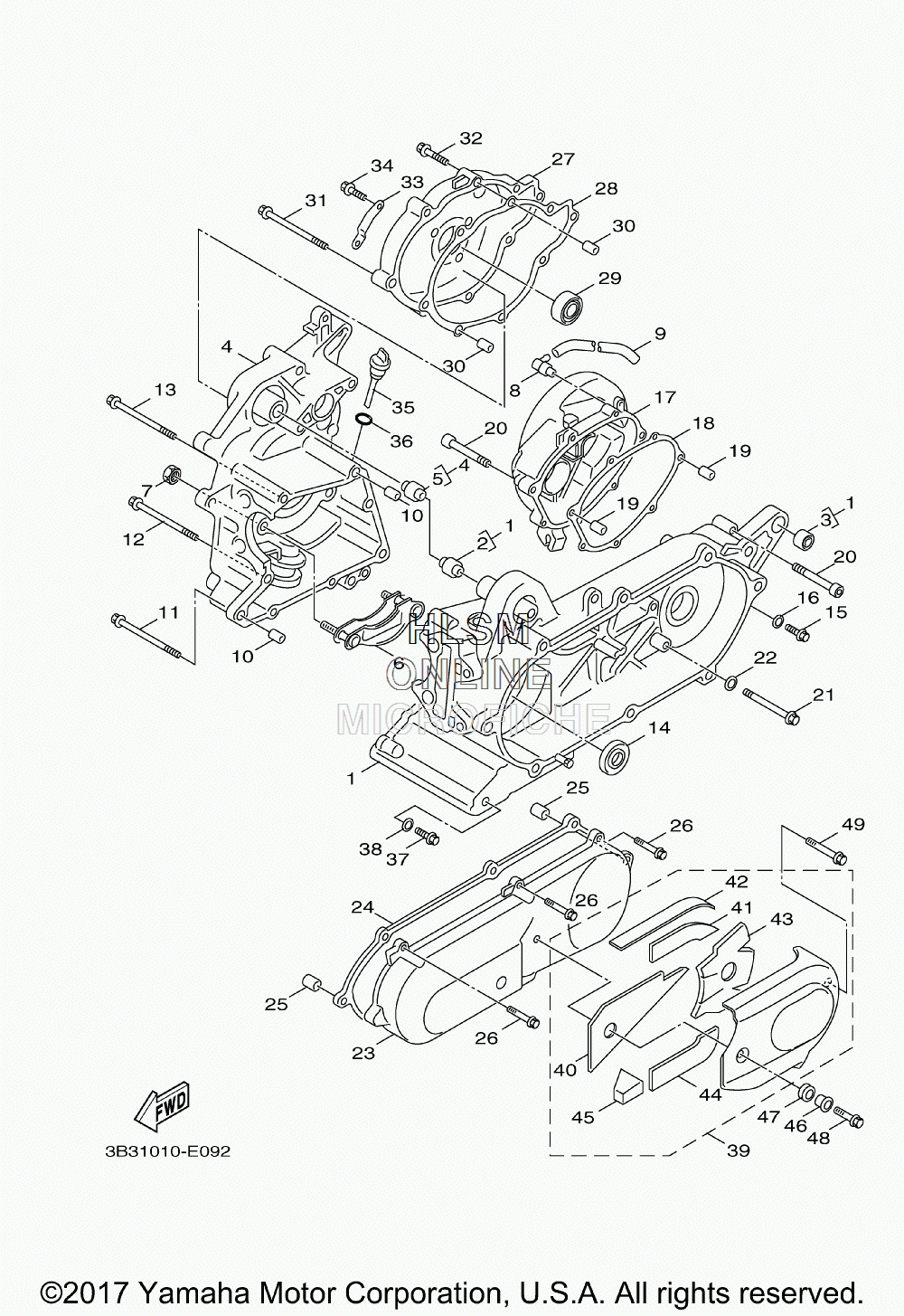

CRANKCASE ASSY. для Yamaha ZUMA 50FX - 2018 года выпуска
-
№АртикулНазвание
-
13B3-WE511-01-00 CRANKCASE 1CRANKCASE 1
-
25ST-F2123-00-00 ...BUSH 1...BUSH 1
-
34X6-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
45ST-WE512-10-00 CRANKCASE 2CRANKCASE 2
-
55ST-F2123-00-00 ...BUSH 1...BUSH 1
-
65ST-E5142-10-00 GUIDE 1GUIDE 1
-
795607-06100-00 NUT, UNUT, U
-
85ST-E5371-00-00 BREATHERBREATHER
-
93B3-E5373-00-00 PIPE, BREATHERPIPE, BREATHER
-
1091810-14807-00 PIN, DOWELPIN, DOWEL
-
1190105-06808-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
1395027-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1493102-19804-00 OIL SEALOIL SEAL
-
1595817-08016-00 BOLT, FLANGEBOLT, FLANGE
