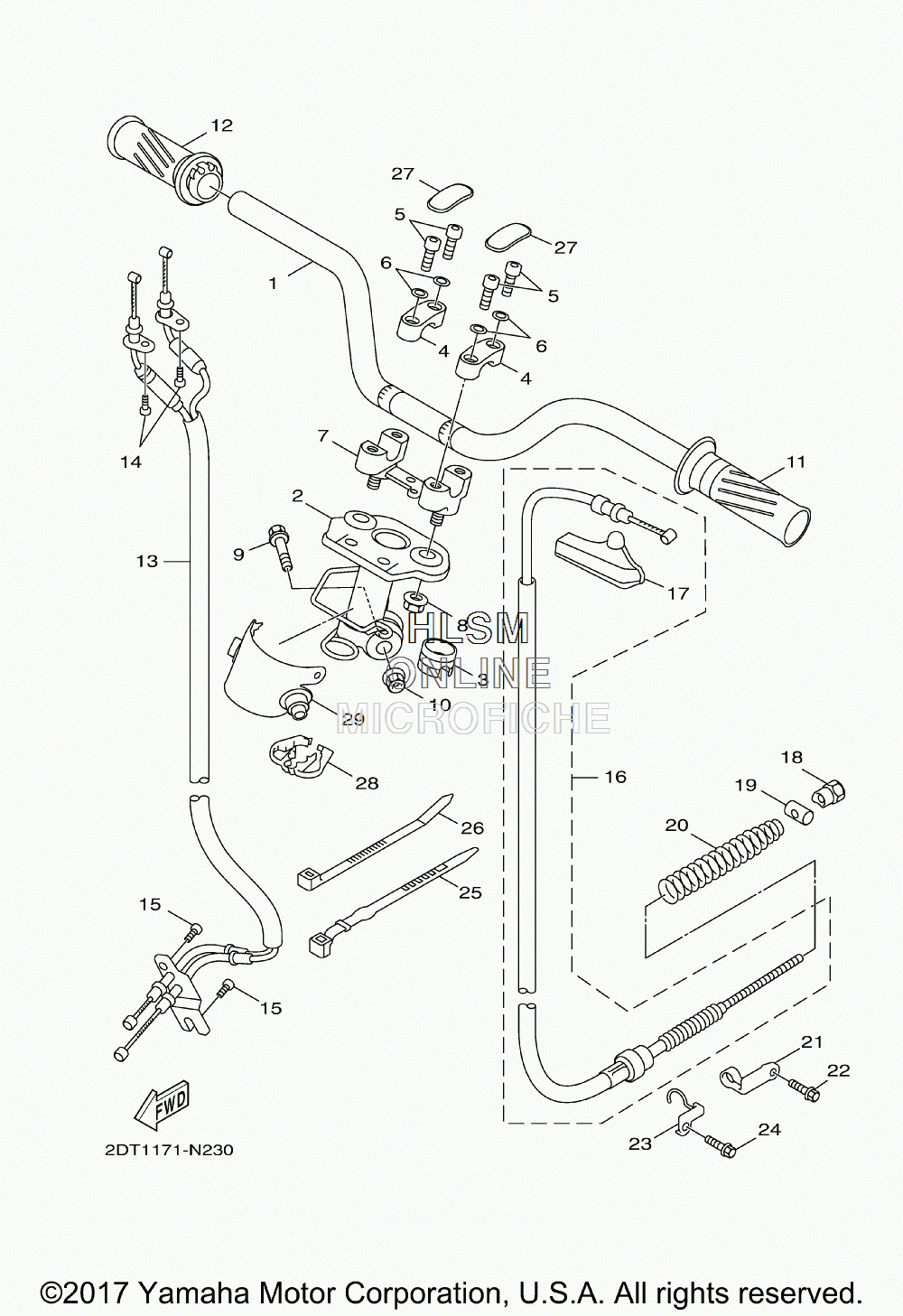

HANDLEBAR W/ CABLES - MIRRORS для Yamaha ZUMA 50FX - 2018 года выпуска
-
№АртикулНазвание
-
11CD-F6111-00-00 HANDLEBARHANDLEBAR
-
21VC-F3461-00-00 BRACKET, HANDLEBRACKET, HANDLE
-
31CD-F6113-00-00 DAMPERDAMPER
-
41MH-F3441-01-35 HOLDER, HANDLE UPPER (SL - SILVER)HOLDER, HANDLE UPPER (SL - SILVER)
-
591317-08025-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
690201-08823-00 WASHER, PLATEWASHER, PLATE
-
75FH-F3442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
890185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990105-10864-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10814-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
112DT-F6241-10-00 GRIPGRIP
-
122DT-F6240-10-00 GRIP ASSYGRIP ASSY
-
131VC-F6301-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
1491317-05014-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
1592012-05010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
161CD-F6351-00-00 CABLE, BRAKECABLE, BRAKE
-
171CD-F6372-00-00 ...COVER, HANDLE LEVER 1...COVER, HANDLE LEVER 1
-
1890179-06411-00 NUTNUT
-
1990249-12806-00 PINPIN
-
2090501-16804-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
213B3-F639F-00-00 HOLDER 2HOLDER 2
-
2295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
233B3-F637G-01-00 HOLDER, WIREHOLDER, WIRE
-
2495807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2537C-H3936-10-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2631U-H3936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
271MH-F3469-00-00 CAP, BOLTCAP, BOLT
-
281VC-F627E-00-00 CLAMP, WIRECLAMP, WIRE
-
291TS-F6124-01-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
