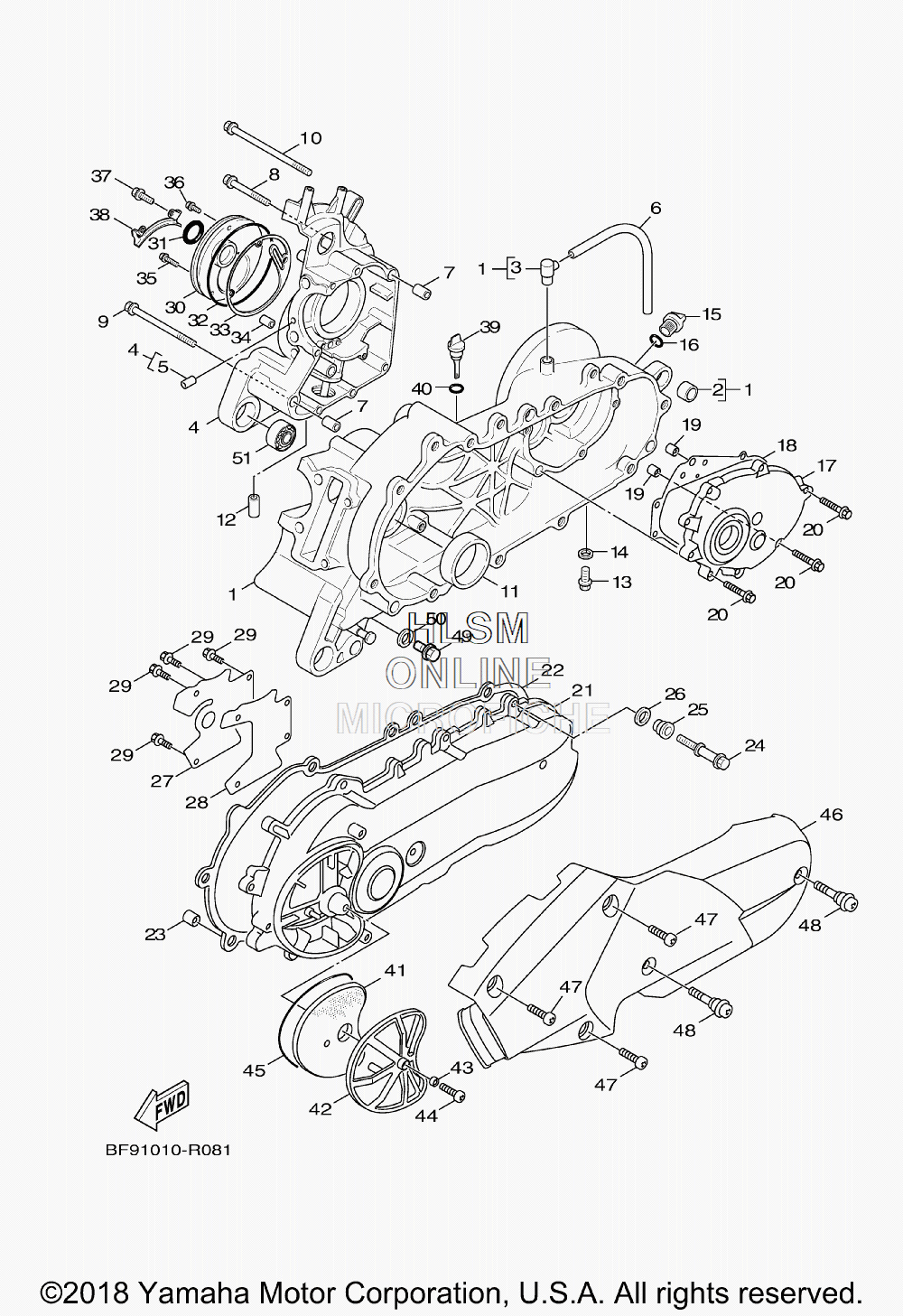

CRANKCASE ASSY. для Yamaha ZUMA 125 - 2019 года выпуска
-
№АртикулНазвание
-
12JS-WE511-00-00 CRANKCASE 1CRANKCASE 1
-
24X6-F2216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
35CA-E5371-00-00 ...BREATHER...BREATHER
-
45S9-WE512-00-00 CRANKCASE 2CRANKCASE 2
-
55ML-E5138-00-00 ...NOZZLE 1...NOZZLE 1
-
690446-13803-00 HOSEHOSE
-
791810-14807-00 PIN, DOWELPIN, DOWEL
-
890105-06808-00 BOLT, FLANGEBOLT, FLANGE
-
990105-06810-00 BOLT, FLANGEBOLT, FLANGE
-
1090105-06817-00 BOLT, FLANGEBOLT, FLANGE
-
1193102-22843-00 OIL SEALOIL SEAL
-
125ML-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
1395817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1490430-08816-00 GASKETGASKET
-
154Y4-E5363-00-00 PLUG, OILPLUG, OIL
-
1693210-14805-00 O-RINGO-RING
-
172JS-E5421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
185S9-E5461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1991810-14807-00 PIN, DOWELPIN, DOWEL
-
2090105-06895-00 BOLT, FLANGEBOLT, FLANGE
-
212UB-E5411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
222UB-E5451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
2391810-14807-00 PIN, DOWELPIN, DOWEL
-
245ML-E5481-00-00 BOLT 1BOLT 1
-
255ML-E5422-00-00 BUSHBUSH
-
265ML-E5158-00-00 WASHERWASHER
-
275ML-E5191-00-00 PLATEPLATE
-
285ML-E5455-00-00 GASKET 1GASKET 1
-
2995027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
305ML-E5417-00-00 COVER, CAPCOVER, CAP
-
3193102-19293-00 OIL SEALOIL SEAL
-
3293211-07801-00 O-RINGO-RING
-
335ML-E5453-00-00 GASKETGASKET
-
3499480-05010-00 PINPIN
-
3590105-06809-00 BOLT, FLANGEBOLT, FLANGE
-
3690105-06807-00 BOLT, FLANGEBOLT, FLANGE
-
3790105-06806-00 BOLT, FLANGEBOLT, FLANGE
-
385ML-E5113-00-00 PLATEPLATE
-
395S9-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
405ML-E3769-00-00 O-RINGO-RING
-
415ML-E5407-00-00 ELEMENT 1ELEMENT 1
-
425ML-E5404-00-00 GUIDE, ELEMENTGUIDE, ELEMENT
-
4390387-06819-00 ...COLLAR...COLLAR
-
4490154-06826-00 SCREW, BINDINGSCREW, BINDING
-
455ML-E5472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
462JS-XE543-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
4790154-06827-00 SCREW, BINDINGSCREW, BINDING
-
484DM-E5481-00-00 BOLT 1BOLT 1
-
4990340-12802-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
5090201-12172-00 WASHER, PLATEWASHER, PLATE
-
5193306-003Y4-00 BEARINGBEARING
