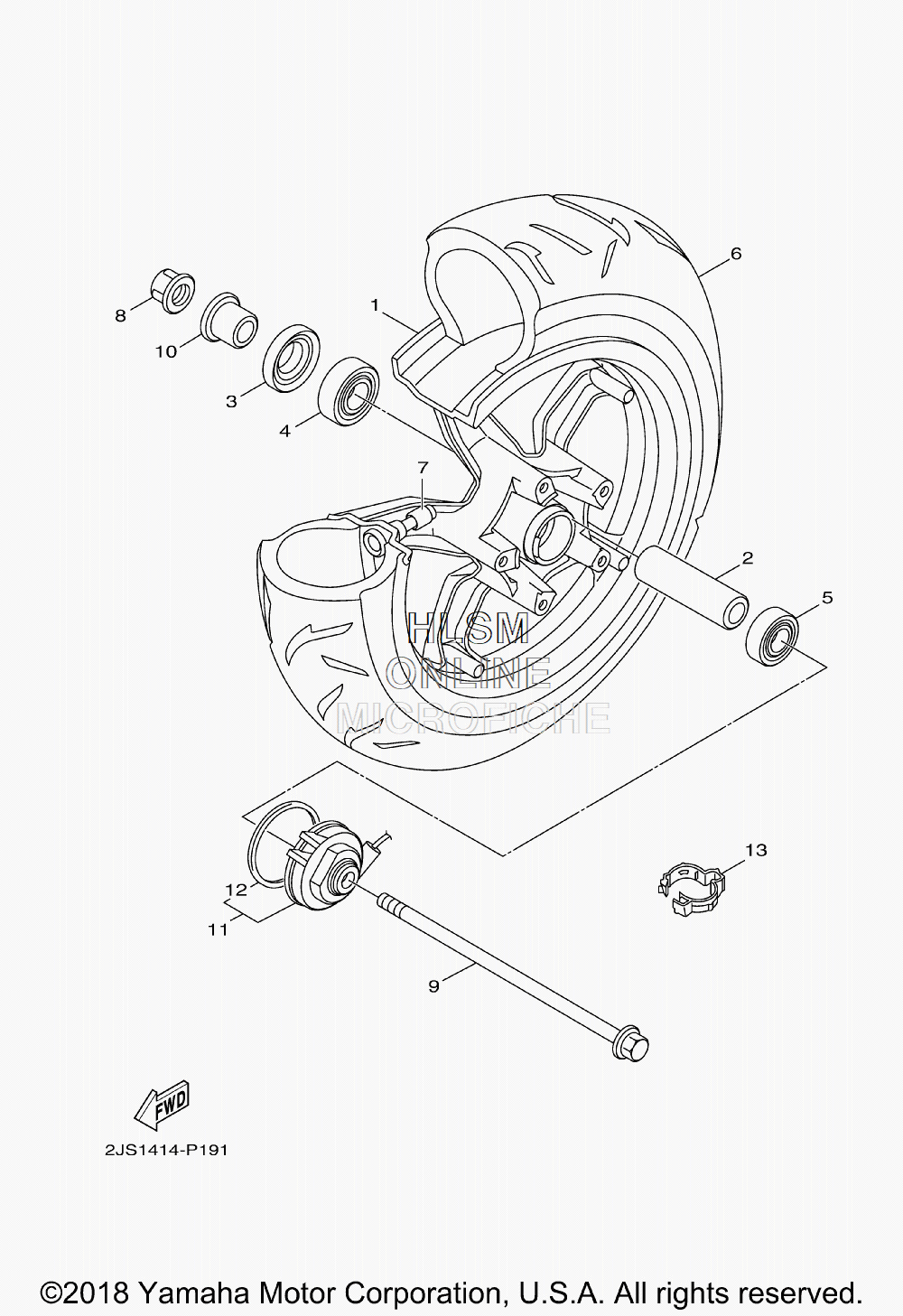

WHEEL - FRONT для Yamaha ZUMA 125 - 2019 года выпуска
-
№АртикулНазвание
-
12JS-F5168-20-33 CAST WHEEL, FRONT (YB - YAMAHA BLACK)CAST WHEEL, FRONT (YB - YAMAHA BLACK)
-
25ML-F5183-00-00 COLLAR, WHEELCOLLAR, WHEEL
-
393106-17805-00 OIL SEALOIL SEAL
-
493306-201Y7-00 BEARINGBEARING
-
593306-301YA-00 BEARINGBEARING
-
694112-12806-00 TIRE (120/70-12 51L) (KENDA)TIRE (120/70-12 51L) (KENDA)
-
793900-00814-00 VALVE, RIM (PVR70)VALVE, RIM (PVR70)
-
895607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95S9-F5181-00-00 AXLE, WHEELAXLE, WHEEL
-
1090387-12852-00 COLLARCOLLAR
-
112JS-H3755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
1293102-44800-00 OIL SEALOIL SEAL
-
1390464-14803-00 CLAMPCLAMP
