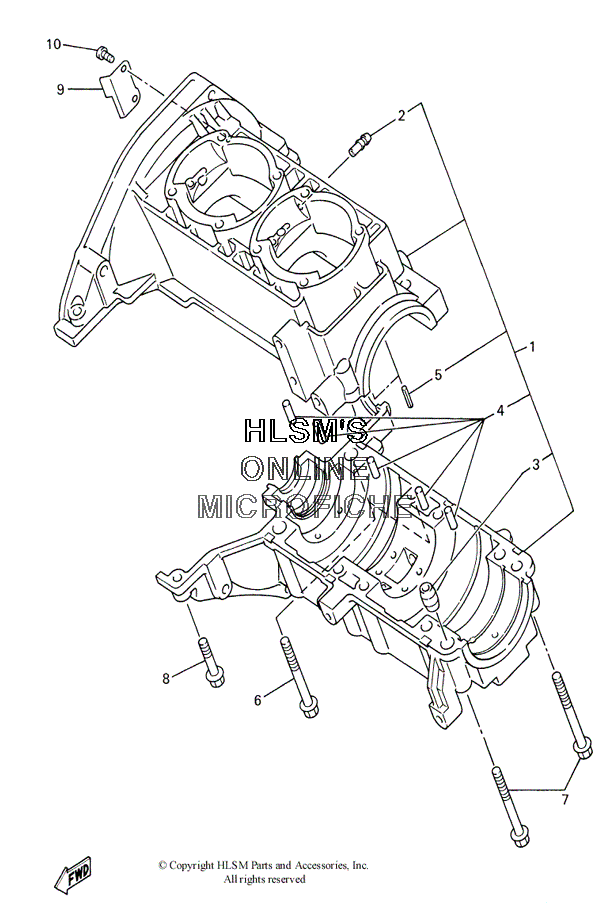

CRANKCASE ASSY для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска
-
№АртикулНазвание
-
18DJ-15100-00-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
2J38-11116-00-00 ...JOINT, BREATHER...JOINT, BREATHER
-
399530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
493604-07141-00 ...PIN, DOWEL...PIN, DOWEL
-
591609-30006-00 ...PIN, SPRING (80K)...PIN, SPRING (80K)
-
690105-08466-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795817-08065-00 BOLT, FLANGEBOLT, FLANGE
-
895817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
990461-12145-00 CLAMPCLAMP
-
1098507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
