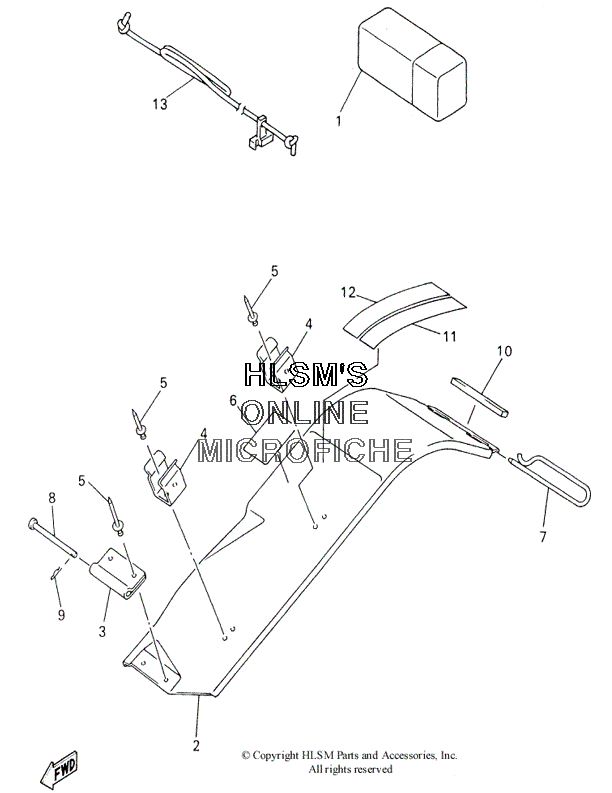

DRIVE GUARD W/ LUGGAGE BOX для Yamaha PHAZER 500 ELECTRIC START - 2000 года выпуска
-
№АртикулНазвание
-
185L-28100-00-00 TOOL KITTOOL KIT
-
28DJ-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77315-00-00 BRACKET 1BRACKET 1
-
48CR-77338-00-00 STAY, BELTSTAY, BELT
-
590267-48169-00 RIVET, BLINDRIVET, BLIND
-
68BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
78CR-77384-00-00 PINPIN
-
891701-06082-00 PIN, CLEVISPIN, CLEVIS
-
990468-18121-00 CLIPCLIP
-
108CR-77319-00-00 DAMPER 1DAMPER 1
-
118CS-47578-00-00 LABEL 1LABEL 1
-
128DJ-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
138R4-15780-00-00 EMERGENCY STARTER ROPE ASSEMBLYEMERGENCY STARTER ROPE ASSEMBLY
