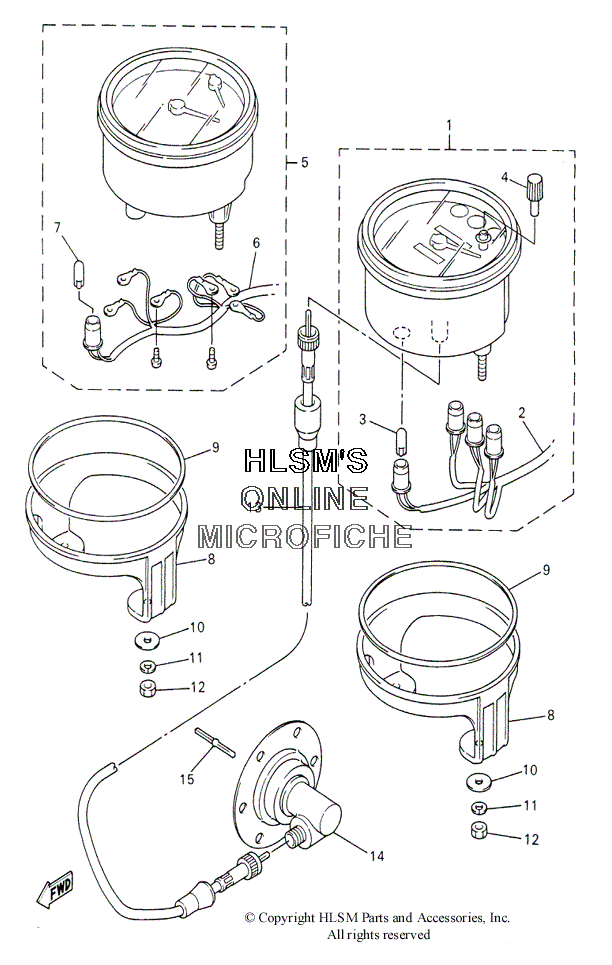

ELECTRICAL - INSTRUMENTS для Yamaha SRX700 - 2000 года выпуска
-
№АртикулНазвание
-
18DF-83510-20-00 SPEEDOMETER ASSEMBLY (KM/H)SPEEDOMETER ASSEMBLY (KM/H)
-
18DF-83510-40-00 SPEEDOMETER ASSEMBLY (MILE/H)SPEEDOMETER ASSEMBLY (MILE/H)
-
28DF-83509-40-00 ...SOCKET CORD ASSEMBLY...SOCKET CORD ASSEMBLY
-
31YT-83517-00-00 ...BULB (12V-1.7W, T10)...BULB (12V-1.7W, T10)
-
48DF-83578-00-00 ...KNOB, TRIP METER...KNOB, TRIP METER
-
58DN-83540-00-00 TACHOMETER ASSEMBLYTACHOMETER ASSEMBLY
-
68DN-83509-00-00 ...SOCKET CORD ASSEMBLY...SOCKET CORD ASSEMBLY
-
71YT-83517-00-00 ...BULB (12V-1.7W, T10)...BULB (12V-1.7W, T10)
-
88DF-83519-40-00 BRACKET, METERBRACKET, METER
-
98DF-83523-40-00 DAMPERDAMPER
-
1090201-06057-00 WASHER, PLATEWASHER, PLATE
-
1192907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1295307-06600-00 NUTNUT
-
138DF-83550-00-00 SPEEDOMETER CABLE ASSEMBLYSPEEDOMETER CABLE ASSEMBLY
-
148CR-47700-00-00 METER GEAR HOUSING COMPMETER GEAR HOUSING COMP
-
158K4-47715-00-00 JOINTJOINT
