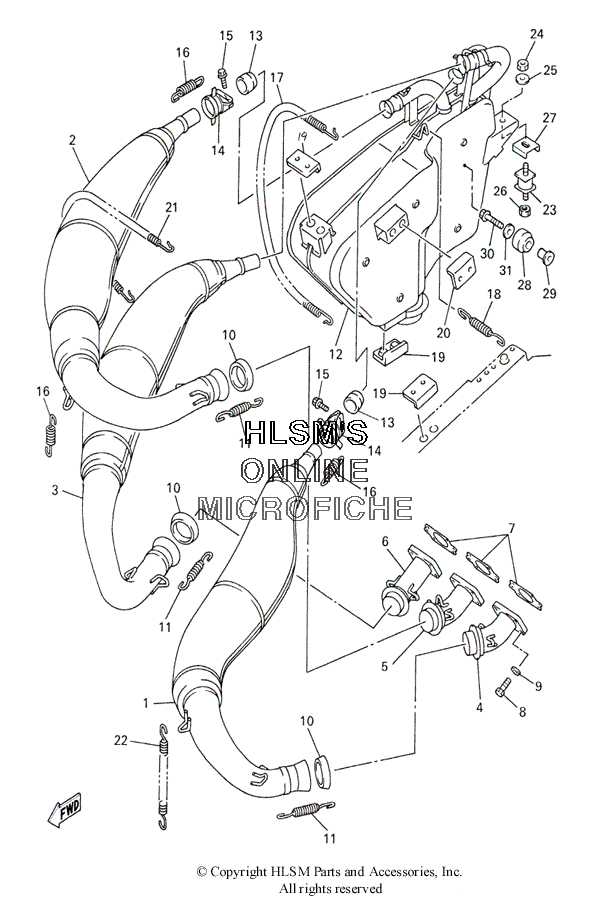

EXHAUST SYSTEM для Yamaha SRX700 - 2000 года выпуска
-
№АртикулНазвание
-
18DF-14610-10-00 EXHAUST PIPE ASSEMBLY 1EXHAUST PIPE ASSEMBLY 1
-
28DF-14620-10-00 EXHAUST PIPE ASSEMBLY 2EXHAUST PIPE ASSEMBLY 2
-
38DF-14630-10-00 EXHAUST PIPE ASSEMBLY 3EXHAUST PIPE ASSEMBLY 3
-
48DF-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
58DF-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
68DF-14635-00-00 JOINT, EXHAUST 3JOINT, EXHAUST 3
-
78DF-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
897017-06025-00 BOLTBOLT
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
-
108DF-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1190506-20272-00 SPRING, TENSIONSPRING, TENSION
-
128DF-14640-11-00 SECOND SILENCER, MUFFLERSECOND SILENCER, MUFFLER
-
138DF-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
148DF-1467F-00-00 JOINT, SILENCER 3JOINT, SILENCER 3
-
1595027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1690506-20093-00 SPRING, TENSIONSPRING, TENSION
-
1790506-16504-00 SPRING, TENSIONSPRING, TENSION
-
1890506-20272-00 SPRING, TENSIONSPRING, TENSION
-
198DF-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
2083R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
2190506-16497-00 SPRING, TENSIONSPRING, TENSION
-
2290506-16512-00 SPRING, TENSIONSPRING, TENSION
-
238DF-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2495707-08500-00 NUT, FLANGENUT, FLANGE
-
2590201-08753-00 WASHER, PLATEWASHER, PLATE
-
2695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
278DF-14616-10-00 WASHERWASHER
-
288DF-22891-00-00 INSULATOR, MOUNTINGINSULATOR, MOUNTING
-
2990387-063E6-00 COLLARCOLLAR
-
3090105-06597-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3190209-06174-00 WASHERWASHER
