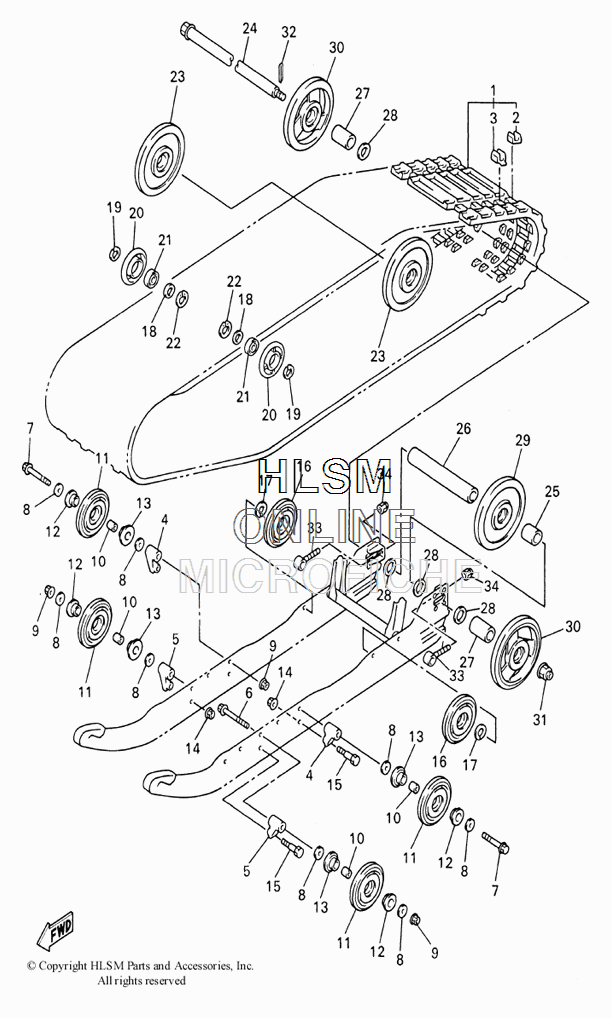

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha V-MAX 500 - 2000 года выпуска
-
№АртикулНазвание
-
18EA-47110-10-00 TRACK ASSEMBLYTRACK ASSEMBLY
-
28EA-47113-00-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38EA-47115-00-00 ...METAL, SLIDE...METAL, SLIDE
-
48DF-47419-00-00 BRACKET 7BRACKET 7
-
58DF-47419-10-00 BRACKET 7BRACKET 7
-
690105-10392-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795817-10085-00 BOLT, FLANGEBOLT, FLANGE
-
890201-100S0-00 WASHER, PLATEWASHER, PLATE
-
995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090387-10079-00 COLLARCOLLAR
-
118CR-47310-10-00 SUSPENSION WHEEL ASSEMBLYSUSPENSION WHEEL ASSEMBLY
-
128CR-47341-00-00 SPACERSPACER
-
138CR-47341-10-00 SPACERSPACER
-
1495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590101-08774-00 BOLTBOLT
-
168CR-47310-10-00 SUSPENSION WHEEL ASSEMBLYSUSPENSION WHEEL ASSEMBLY
-
1799009-25400-00 CIRCLIPCIRCLIP
-
1890387-2004V-00 COLLARCOLLAR
-
1999009-20400-00 CIRCLIPCIRCLIP
-
208H8-47320-00-00 SUSPENSION WHEEL COMPSUSPENSION WHEEL COMP
-
2193306-00444-00 BEARINGBEARING
-
2299009-42500-00 CIRCLIPCIRCLIP
-
238CR-47550-00-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
248L8-47520-02-00 REAR AXLE COMPREAR AXLE COMP
-
2590387-2012E-00 COLLARCOLLAR
-
2690387-2012C-00 COLLARCOLLAR
-
2790387-2012D-00 COLLARCOLLAR
-
2890201-205R6-00 WASHER, PLATEWASHER, PLATE
-
298CR-47550-10-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
308CR-47550-21-00 GUIDE WHEEL ASSEMBLYGUIDE WHEEL ASSEMBLY
-
3195607-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3291401-30025-00 PIN, COTTERPIN, COTTER
-
338K2-47479-01-00 COLLAR 3COLLAR 3
-
3495707-10300-00 NUT, FLANGENUT, FLANGE
