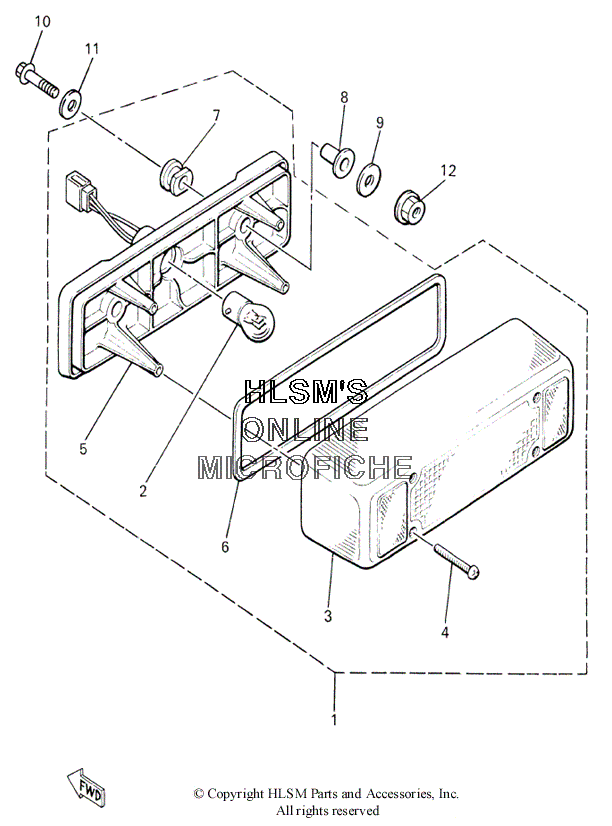

ELECTRICAL - TAILLIGHT ASSY для Yamaha VENTURE 600 - 2000 года выпуска
-
№АртикулНазвание
-
182M-84710-00-00 TAILLIGHT UNIT ASSEMBLYTAILLIGHT UNIT ASSEMBLY
-
2838-84714-01-00 ...BULB (12V-23/8W)...BULB (12V-23/8W)
-
38K4-84721-00-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
497701-40130-00 ...SCREW, PANHEAD TAPPING...SCREW, PANHEAD TAPPING
-
582M-84711-00-00 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
687M-84723-00-00 ...GASKET, TAIL LENS...GASKET, TAIL LENS
-
78K4-84718-00-00 ...GROMMET...GROMMET
-
890387-066N1-00 COLLARCOLLAR
-
990201-06747-00 WASHER, PLATEWASHER, PLATE
-
1097007-06040-00 BOLTBOLT
-
1190201-06072-00 WASHER, PLATEWASHER, PLATE
-
1295707-06500-00 NUT, FLANGENUT, FLANGE
