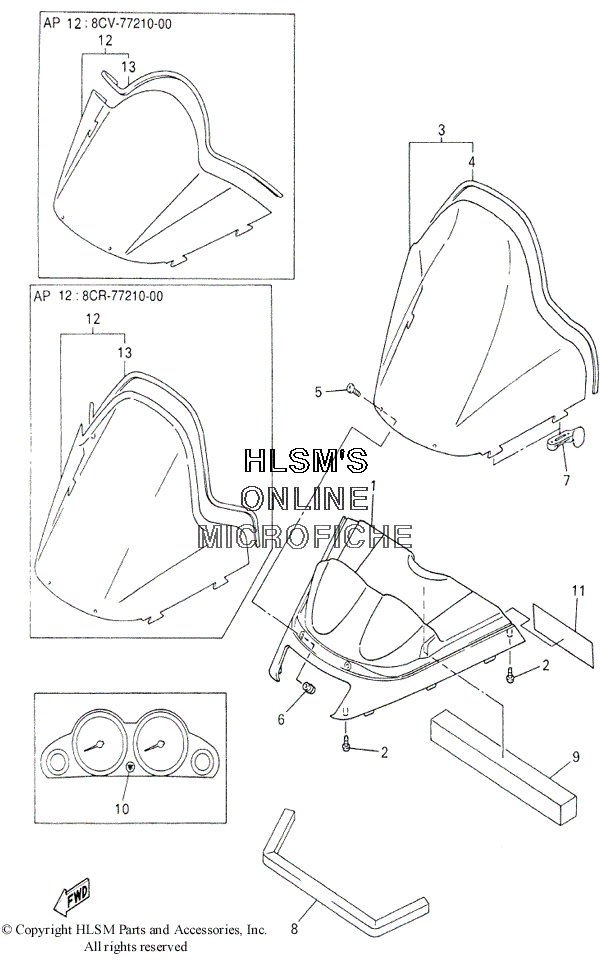

HOOD - WINDSHIELD ASSY для Yamaha VENTURE 600 - 2000 года выпуска
-
№АртикулНазвание
-
18DF-77251-01-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
38DM-77210-00-00 WINDSHIELD COMPWINDSHIELD COMP
-
48DM-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
590150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690179-05523-00 NUTNUT
-
782H-77223-00-00 FASTNERFASTNER
-
88CR-77279-00-00 DAMPER, NOISE 9DAMPER, NOISE 9
-
98CR-2199J-00-00 SHIELD, NOISE 2SHIELD, NOISE 2
-
104XV-2341B-00-00 EMBLEMEMBLEM
-
118DM-77761-00-00 LABEL, WARNING 1LABEL, WARNING 1
-
128CR-77210-00-00 WINDSHIELD COMP (AP)WINDSHIELD COMP (AP)
-
128CR-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
138CV-77210-00-00 WINDSHIELD COMP (AP)WINDSHIELD COMP (AP)
-
138CV-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
