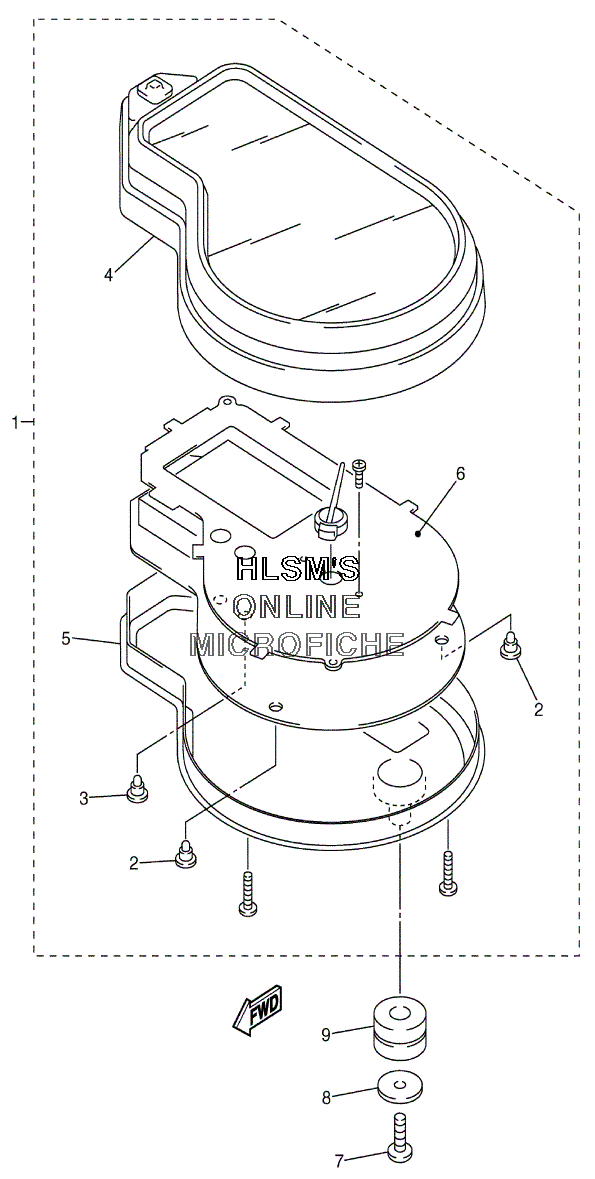

SPEEDOMETER для Yamaha SX VIPER 700 - 2002 года выпуска
-
№АртикулНазвание
-
18EK-83500-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
24WM-83517-00-00 ...BULB (T3 12V-40MA)...BULB (T3 12V-40MA)
-
34WM-83517-10-00 ...BULB (T3.4 12V-80MA)...BULB (T3.4 12V-80MA)
-
48EK-8353E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
58EK-83572-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
68EK-83548-00-00 ...PANEL, METER...PANEL, METER
-
797707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
890201-05036-00 WASHER, PLATEWASHER, PLATE
-
94XV-83513-00-00 DAMPERDAMPER
