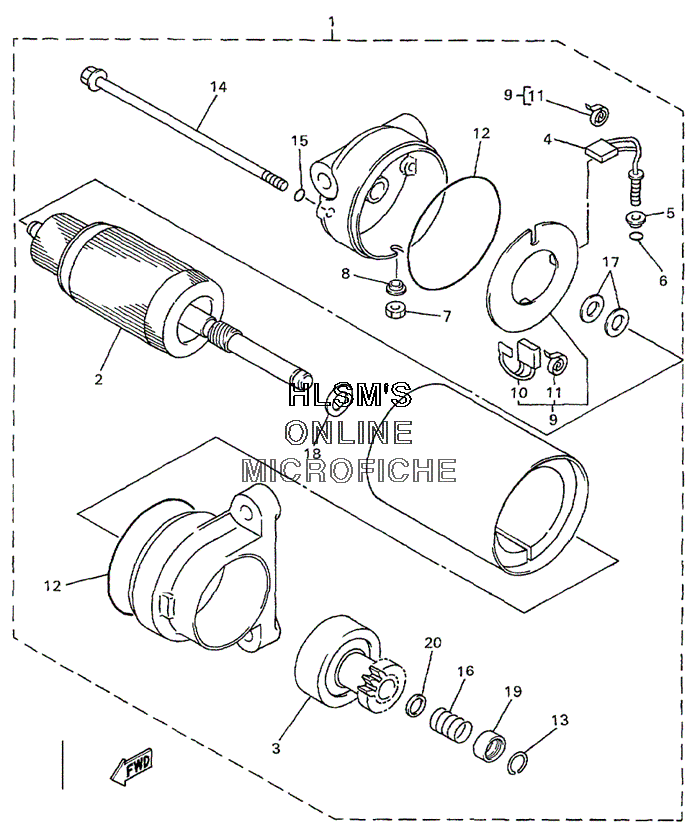

STARTER - ELECTRICAL STARTER ASSY для Yamaha SX VIPER 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CW-81800-01-00 STARTING MOTOR ASSY (OPT)STARTING MOTOR ASSY (OPT)
-
28CW-81850-00-00 ....ARMAT(OPT)E ASSY....ARMAT(OPT)E ASSY
-
38CW-81832-00-00 ....CLUTCH, OVER RUN....CLUTCH, OVER RUN
-
48CW-81811-00-00 ....BRUSH 1....BRUSH 1
-
573A-81829-50-00 ....GROMMET....GROMMET
-
673A-81847-00-00 ....O-RING....O-RING
-
74H7-81872-00-00 ....NUT, SPECIAL....NUT, SPECIAL
-
873A-81829-00-00 ....GROMMET....GROMMET
-
98CW-81840-00-00 ....BRUSH HOLDER ASSY....BRUSH HOLDER ASSY
-
108CW-81812-00-00 ........BRUSH 2........BRUSH 2
-
118L6-81813-50-00 ........SPRING, BRUSH........SPRING, BRUSH
-
124H7-81844-50-00 ....O-RING....O-RING
-
138L6-81834-50-00 ....RING....RING
-
143GD-81826-00-00 ....BOLT, THROUGH....BOLT, THROUGH
-
158L6-81847-50-00 ....O-RING....O-RING
-
168CW-81836-00-00 ....SPRING, LEVER....SPRING, LEVER
-
174H7-81843-50-00 ....WASHER 1....WASHER 1
-
188L6-81835-50-00 ....WASHER 2....WASHER 2
-
198CW-81833-00-00 ....RING, STOP....RING, STOP
-
208BB-8185A-00-00 ....WASHER, PLATE....WASHER, PLATE
