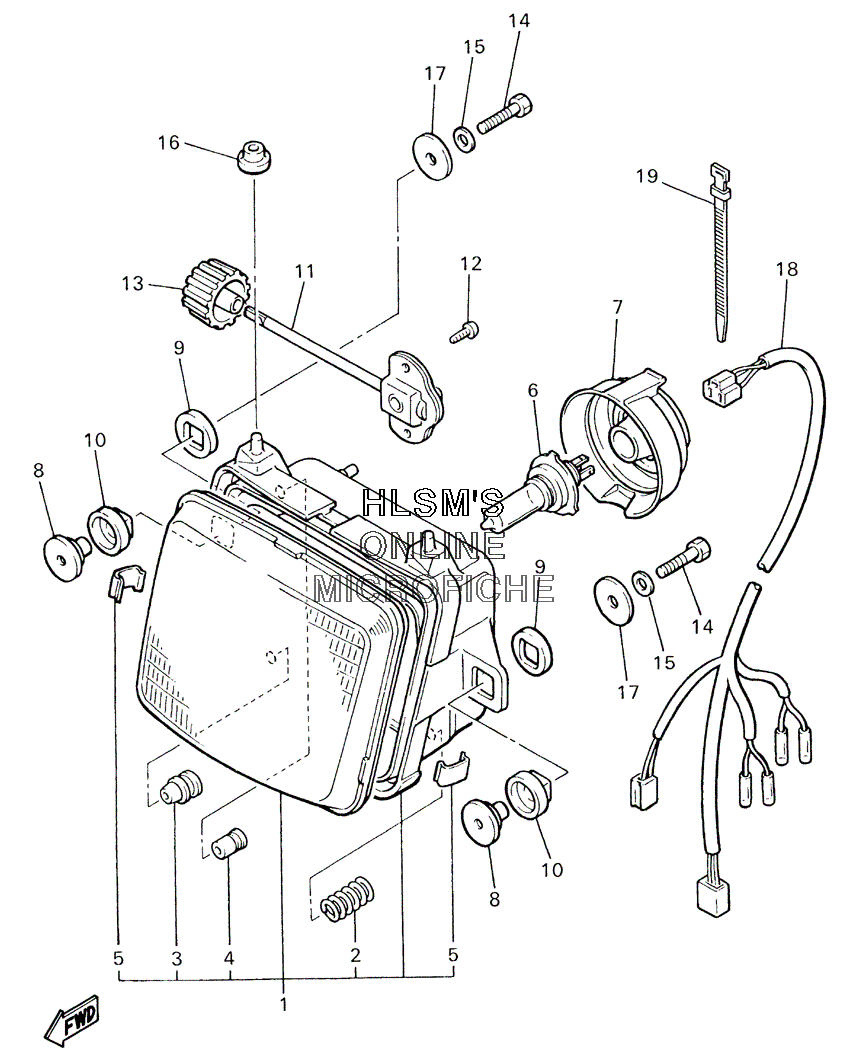

ELECTRICAL - HEADLIGHT ASSY для Yamaha VK 540 III - 2003 года выпуска
-
№АртикулНазвание
-
184R-8430A-A0-00 HEAD LIGHT UNIT ASSYHEAD LIGHT UNIT ASSY
-
251L-84332-00-00 ...SPRING, SCREW...SPRING, SCREW
-
351L-8431U-00-00 ...HOLDER...HOLDER
-
451L-84334-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
536Y-84324-00-00 ...SPRING, REFLECTOR...SPRING, REFLECTOR
-
62F9-84314-00-00 BULB (12V-60/55W) (H4)HALOGENBULB (12V-60/55W) (H4)HALOGEN
-
736Y-84397-00-00 COVER, SOCKETCOVER, SOCKET
-
8498-84145-60-00 COLLAR, BODY FITTINGCOLLAR, BODY FITTING
-
9498-84164-60-00 DAMPERDAMPER
-
10498-84163-60-00 DAMPERDAMPER
-
1183R-8430M-00-00 GEAR UNIT ASSYGEAR UNIT ASSY
-
1297707-40616-00 SCREW, TAPPINGSCREW, TAPPING
-
1326H-8432M-00-00 KNOB ASSYKNOB ASSY
-
1497007-08040-00 BOLTBOLT
-
1592907-08600-00 WASHER, PLATEWASHER, PLATE
-
1636Y-84354-00-00 GROMMETGROMMET
-
1790201-08766-00 WASHER, PLATEWASHER, PLATE
-
188AT-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
-
19437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- • ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - STEERING GATE
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HOOD - WINSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ TRACK
- SUSPENSION - RAIL ASSY EXTENSIONS
- SUSPENSION - TORQUE ARM ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
