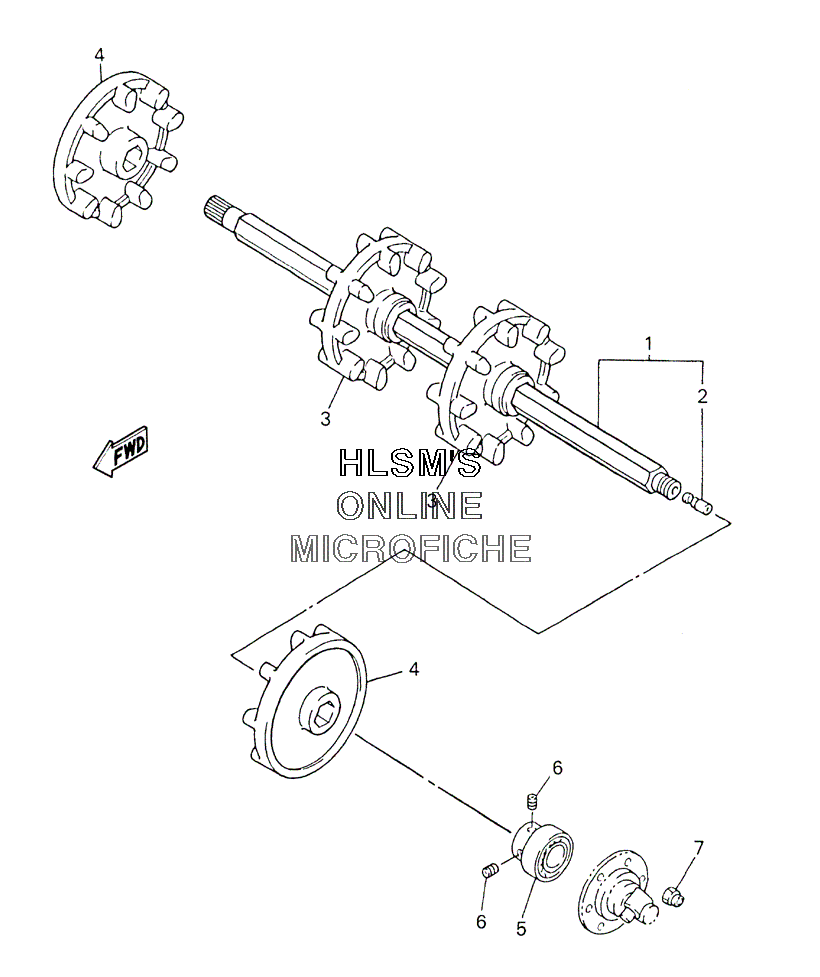

DRIVE TRAIN ASSEMBLY для Yamaha VMAX 600 ER - 2003 года выпуска
-
№АртикулНазвание
-
18CR-W4751-01-00 AXLE, FRONTAXLE, FRONT
-
28K4-47577-00-00 ...CONNECTOR...CONNECTOR
-
38CM-47531-10-00 WHEEL, SPROCKET 1WHEEL, SPROCKET 1
-
48CM-47532-10-00 WHEEL, SPROCKET 2WHEEL, SPROCKET 2
-
593306-20589-00 BEARINGBEARING
-
690113-06064-00 BOLT, SETBOLT, SET
-
795707-08300-00 NUT, FLANGENUT, FLANGE
