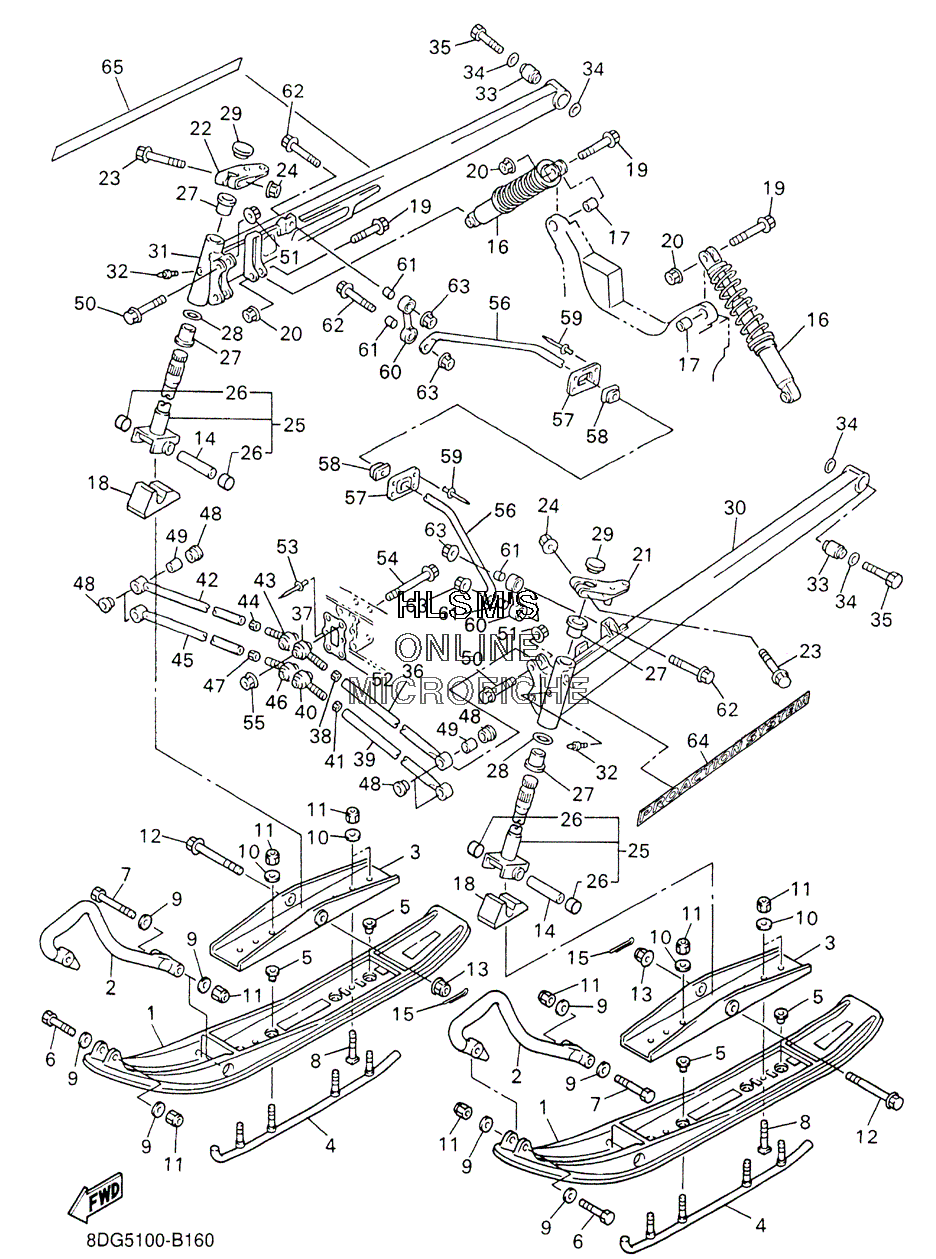

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VMAX 600 ER - 2003 года выпуска
-
№АртикулНазвание
-
18EK-23711-00-00 SKI 1SKI 1
-
28DM-23712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EK-23766-00-00 SADDLE 1SADDLE 1
-
48EK-23731-00-00 RUNNER 1RUNNER 1
-
58EK-23751-00-00 BUSH, SKI 1BUSH, SKI 1
-
697027-08055-00 BOLTBOLT
-
797027-08100-00 BOLTBOLT
-
890108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
990201-08784-00 WASHER, PLATEWASHER, PLATE
-
1090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
1195707-08300-00 NUT, FLANGENUT, FLANGE
-
1290105-10712-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168DS-2376A-10-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
178CR-2376B-00-00 BUSHBUSH
-
188CR-23743-10-00 STOPPER 1STOPPER 1
-
1990105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
218CR-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
228CR-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2395817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
2495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
258DM-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2690384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2790381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2890201-301G3-00 WASHER, PLATEWASHER, PLATE
-
298CR-23741-10-00 CAP 1CAP 1
-
308DM-2382E-10-00 ARM, FRONT 1ARM, FRONT 1
-
318DM-2382F-10-00 ARM, FRONT 2ARM, FRONT 2
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
338CR-2516A-00-00 DAMPERDAMPER
-
3490201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3590101-12780-00 BOLTBOLT
-
368CR-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
378DN-23823-00-00 JOINT 2JOINT 2
-
3895317-12600-00 NUTNUT
-
398CR-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
408DN-23832-00-00 JOINT 3JOINT 3
-
4195314-14600-00 NUTNUT
-
428CR-2384E-20-00 ARM, CONTROL 1ARM, CONTROL 1
-
438DN-23823-00-00 JOINT 2JOINT 2
-
4495317-12600-00 NUTNUT
-
458CR-2384F-20-00 ARM, CONTROL 2ARM, CONTROL 2
-
468DN-23832-00-00 JOINT 3JOINT 3
-
4795314-14600-00 NUTNUT
-
4890381-17110-00 BUSH, SOLIDBUSH, SOLID
-
4990387-1009K-00 COLLARCOLLAR
-
5090105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
5195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528DF-23779-00-00 WASHERWASHER
-
5390267-48057-00 RIVET, BLINDRIVET, BLIND
-
5490105-121A8-00 BOLT, FLANGEBOLT, FLANGE
-
5595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568CR-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
578CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
588CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5990267-47186-00 RIVET, BLINDRIVET, BLIND
-
608CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6190387-087L3-00 COLLARCOLLAR
-
6290105-08345-00 BOLT, FLANGEBOLT, FLANGE
-
6395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
648EA-77371-30-00 EMBLEM 15EMBLEM 15
-
658EA-77372-30-00 EMBLEM 16EMBLEM 16
