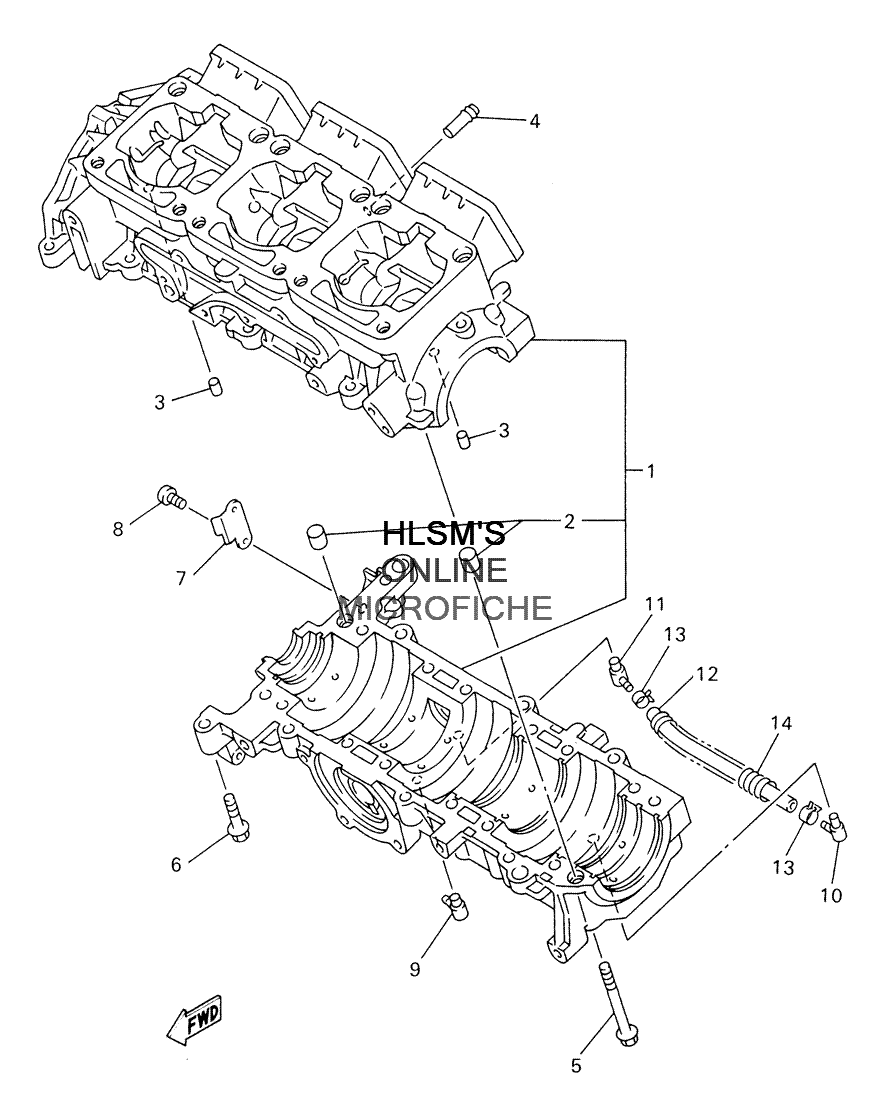

CRANKCASE ASSY для Yamaha SX VIPER ER - 2004 года выпуска
-
№АртикулНазвание
-
18DF-15100-10-00 CRANKCASE ASSY.CRANKCASE ASSY.
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
393605-10108-00 PIN, DOWELPIN, DOWEL
-
4J38-11116-00-00 JOINT, BREATHERJOINT, BREATHER
-
595817-08080-00 BOLT, FLANGEBOLT, FLANGE
-
695827-08040-00 BOLT, FLANGEBOLT, FLANGE
-
790461-12001-00 CLAMPCLAMP
-
898507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
9353-13552-01-00 NOZZLENOZZLE
-
108DF-13552-00-00 NOZZLENOZZLE
-
118CH-13552-00-00 NOZZLENOZZLE
-
1290446-08382-00 HOSEHOSE
-
1390468-02025-00 CLIPCLIP
-
1490501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
