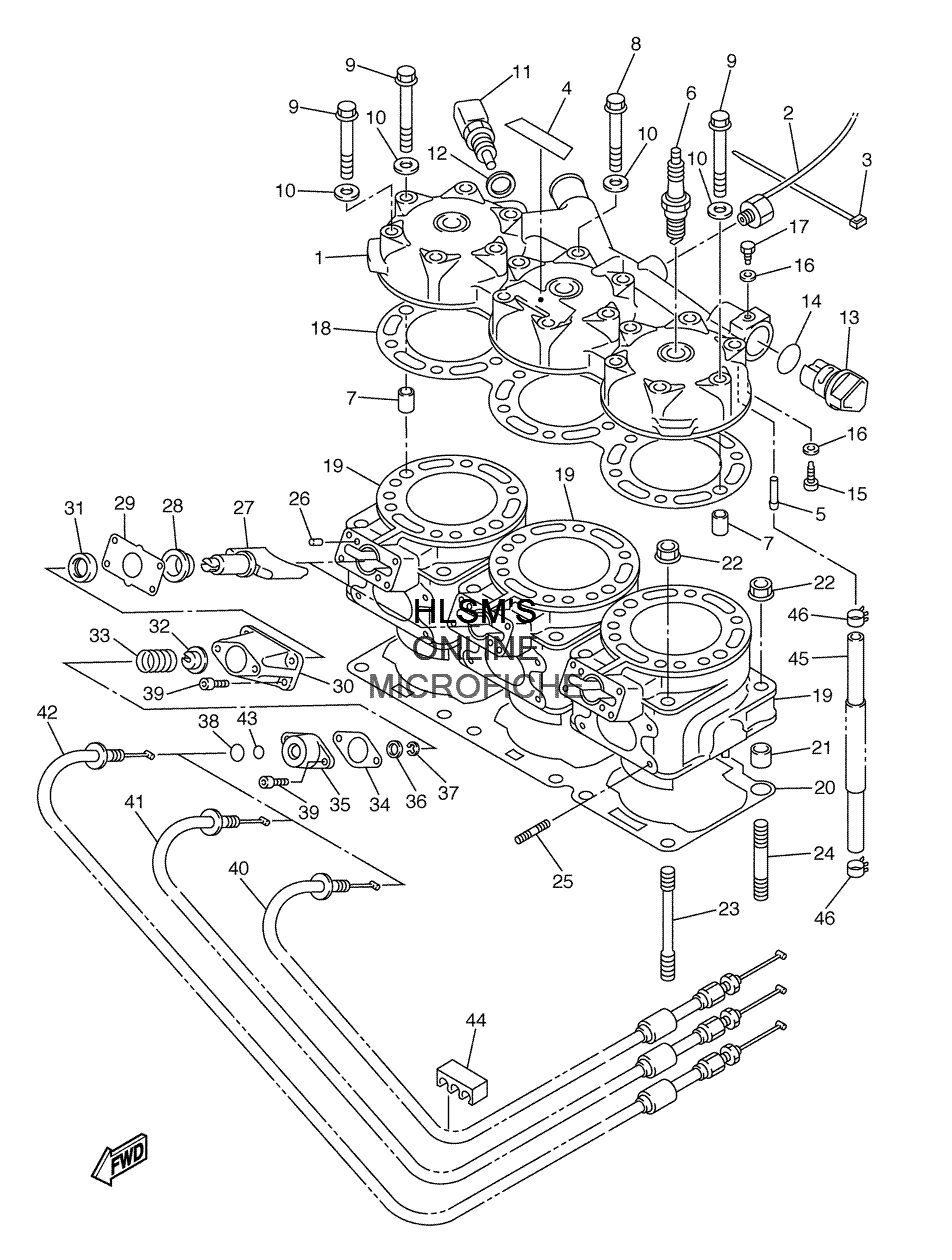

CYLINDER W/ HEAD ASSY для Yamaha SX VIPER ER - 2004 года выпуска
-
№АртикулНазвание
-
18FE-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
28FE-85780-00-00 SENSOR, KNOCKSENSOR, KNOCK
-
35Y9-12491-00-00 CLAMP 1CLAMP 1
-
48EK-1111K-00-00 EMBLEMEMBLEM
-
526H-12584-00-00 JOINT, HOSE 3JOINT, HOSE 3
-
6NGK-BR9ES-01-PC PLUG, SPARK (NGK BR9ES)PLUG, SPARK (NGK BR9ES)
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
890105-08044-00 BOLT, FLANGEBOLT, FLANGE
-
990105-08043-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-084H7-00 WASHER, PLATEWASHER, PLATE
-
118CC-85790-01-00 THERMOSENSOR ASSY.THERMOSENSOR ASSY.
-
1290201-12790-00 WASHER, PLATEWASHER, PLATE
-
138DF-12478-00-00 COCK, DRAINCOCK, DRAIN
-
1493210-19123-00 O-RINGO-RING
-
1590109-063E8-00 BOLTBOLT
-
1690210-06006-00 WASHER, SEALWASHER, SEAL
-
1790109-06418-00 BOLTBOLT
-
188EK-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
198EK-11311-00-00 CYLINDER 1CYLINDER 1
-
208EK-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
2199530-14016-00 PIN, DOWELPIN, DOWEL
-
2295707-10500-00 NUT, FLANGENUT, FLANGE
-
2390116-10411-00 BOLT, STUDBOLT, STUD
-
2490116-10506-00 BOLT, STUDBOLT, STUD
-
2590116-06031-00 BOLT, STUDBOLT, STUD
-
2693604-08071-00 PIN, DOWELPIN, DOWEL
-
278EK-1131A-00-00 VALVE 1VALVE 1
-
288EK-1131E-00-00 HOLDER 1HOLDER 1
-
298DF-11354-02-00 GASKETGASKET
-
308DF-1131F-01-00 HOLDER 2HOLDER 2
-
3193109-15074-00 O-RINGO-RING
-
328DF-11317-01-00 SEAT, SPRINGSEAT, SPRING
-
3390501-120L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
348DF-11397-10-00 GASKETGASKET
-
358DF-1131U-01-00 HOLDER 3HOLDER 3
-
3690201-092U3-00 WASHER, PLATEWASHER, PLATE
-
3799001-06600-00 CIRCLIPCIRCLIP
-
3893210-09165-00 O-RINGO-RING
-
3991317-05016-00 BOLTBOLT
-
408EK-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
418EK-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
428EK-1133G-00-00 CABLE, PULLEY 3CABLE, PULLEY 3
-
4393210-06632-00 O-RINGO-RING
-
4490464-06253-00 CLAMPCLAMP
-
458EK-1248A-00-00 PIPE 8PIPE 8
-
4690467-11090-00 CLIP, SCISSORCLIP, SCISSOR
