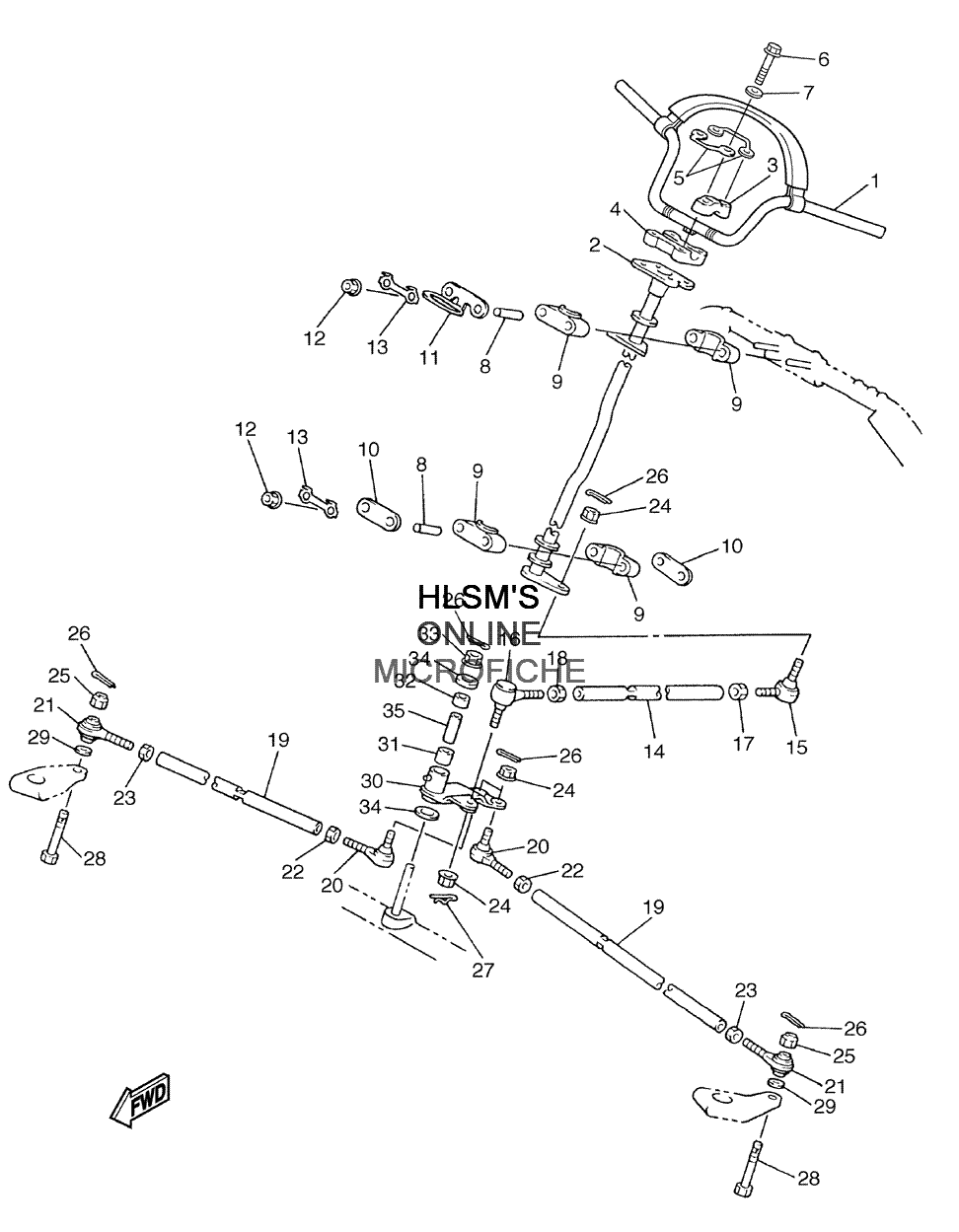

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SX VIPER MOUNTAIN - 2004 года выпуска
-
№АртикулНазвание
-
18EN-26110-11-00 HANDLE COMP.HANDLE COMP.
-
28EN-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
48ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
58DF-23857-00-00 HOLDERHOLDER
-
697027-08055-00 BOLTBOLT
-
792907-08600-00 WASHER, PLATEWASHER, PLATE
-
890387-090R0-00 COLLARCOLLAR
-
98DF-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
108CR-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
118CJ-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1295707-08300-00 NUT, FLANGENUT, FLANGE
-
131UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
148CR-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
158CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
168CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
1795307-10700-00 NUTNUT
-
1890170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
198CS-23831-00-00 ROD, TIEROD, TIE
-
208CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2187S-23847-00-00 JOINT, UNIVERSAL 3 (L.H. THREAD)JOINT, UNIVERSAL 3 (L.H. THREAD)
-
2295307-10700-00 NUTNUT
-
2390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2495707-10500-00 NUT, FLANGENUT, FLANGE
-
2595707-10300-00 NUT, FLANGENUT, FLANGE
-
2691401-25020-00 PIN, COTTERPIN, COTTER
-
2790468-12006-00 CLIPCLIP
-
2890102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
2990201-08759-00 WASHER, PLATEWASHER, PLATE
-
308EK-23826-00-00 ARM, IDLERARM, IDLER
-
3193317-41767-00 BEARINGBEARING
-
3293317-41785-00 BEARINGBEARING
-
3395607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3490201-121U3-00 WASHER, PLATEWASHER, PLATE
-
358DF-2412G-00-00 COLLARCOLLAR
