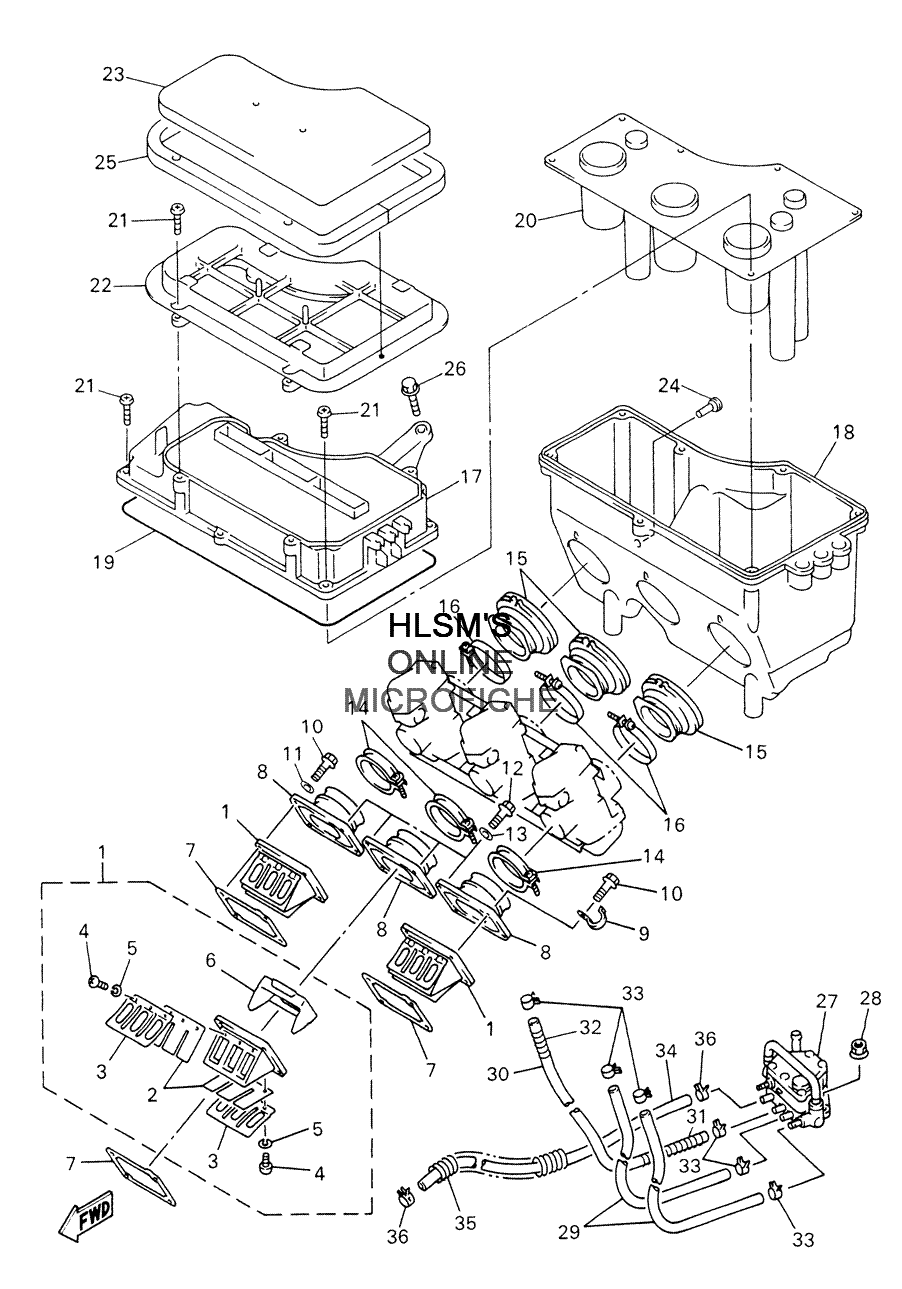

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SX VIPER MOUNTAIN - 2004 года выпуска
-
№АртикулНазвание
-
18DF-13610-00-00 REED VALVE ASSY.REED VALVE ASSY.
-
22KM-13613-00-00 ...REED, VALVE...REED, VALVE
-
38DF-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498507-03006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592907-03100-00 ...WASHER, SPRING...WASHER, SPRING
-
68DF-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
78DF-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88EK-13555-00-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
990462-08239-00 CLAMPCLAMP
-
1097017-06025-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
1297017-06025-00 BOLTBOLT
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
1490460-56073-00 CLAMP, HOSECLAMP, HOSE
-
158DF-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1690450-53061-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
178EK-14431-00-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
188EK-14441-00-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
198CH-14452-00-00 SEALSEAL
-
208EK-14477-00-00 PLATEPLATE
-
2190167-05043-00 SCREW, TAPPINGSCREW, TAPPING
-
228EK-14458-00-00 GUIDEGUIDE
-
238EK-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
248EK-14454-00-00 JOINTJOINT
-
258EK-14425-00-00 DAMPER 1DAMPER 1
-
2690119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
278DF-24410-00-00 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
2895707-06500-00 NUT, FLANGENUT, FLANGE
-
2990445-094K7-00 HOSEHOSE
-
308DF-14294-00-00 HOSEHOSE
-
3190501-085L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3290501-085L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3390467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
3490445-11730-00 HOSEHOSE
-
3590501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
